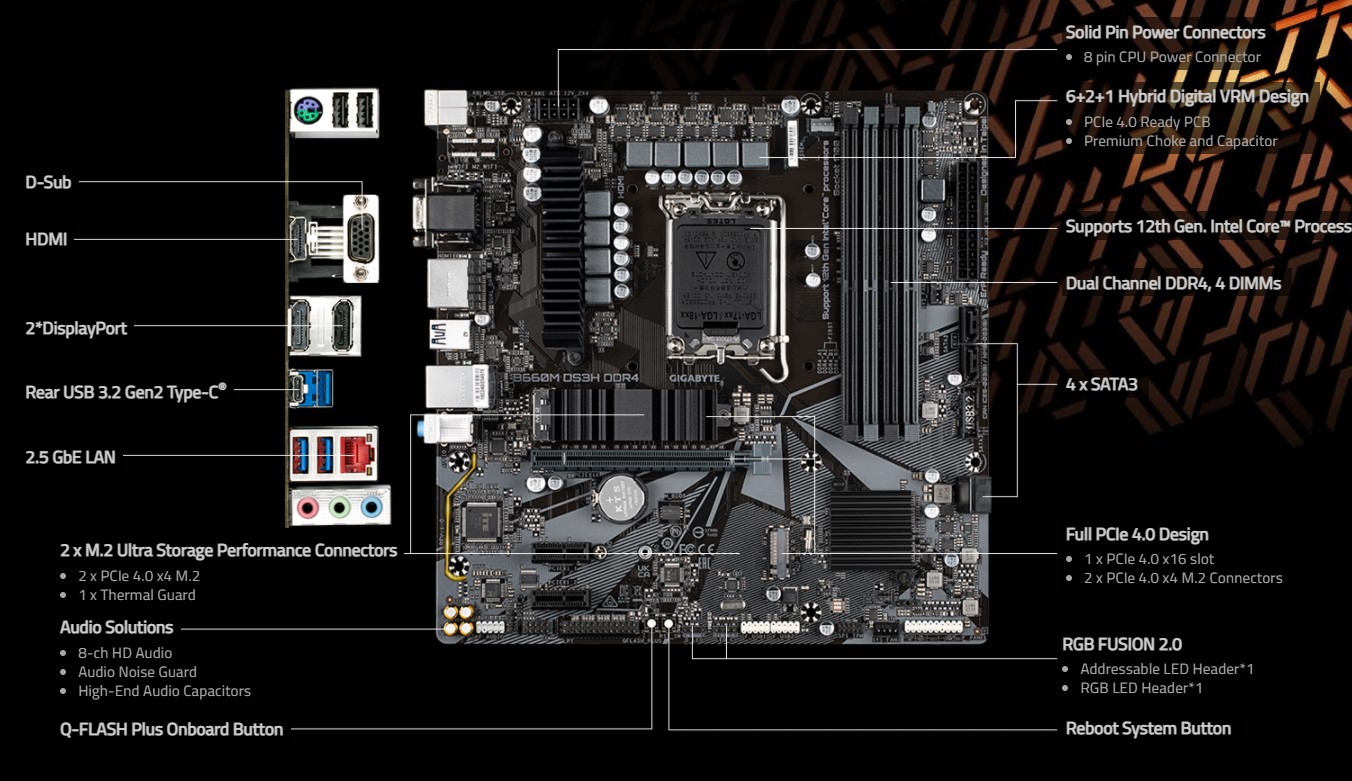

Gigabyte B660M DS3H DDR4 là dòng bo mạch chủ chipset B660 tầm trung của Gigabyte, phù hợp với các vi xử lý Pentium, Celeron,i3 & i5 hoặc i7,i9 non K thế hệ Alder Lake.
Các tính năng trên sản phẩm mainboard B660 Gigabyte
Gigabyte B660M DS3H DDR4 phù hợp với các bộ máy tính phổ thông và tầm trung, cho nhu cầu chơi game và làm việc văn phòng cũng như Multimedia cơ bản.
Sản phẩm |
Bo mạch chủ |
Tên Hãng |
Gigabyte |
Model |
B660M DS3H DDR4 |
CPU hỗ trợ |
Intel |
Chipset |
B660 |
RAM hỗ trợ |
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules |
Khe cắm mở rộng |
1 x PCI Express x16 slot, running at x16 |
Ổ cứng hỗ trợ |

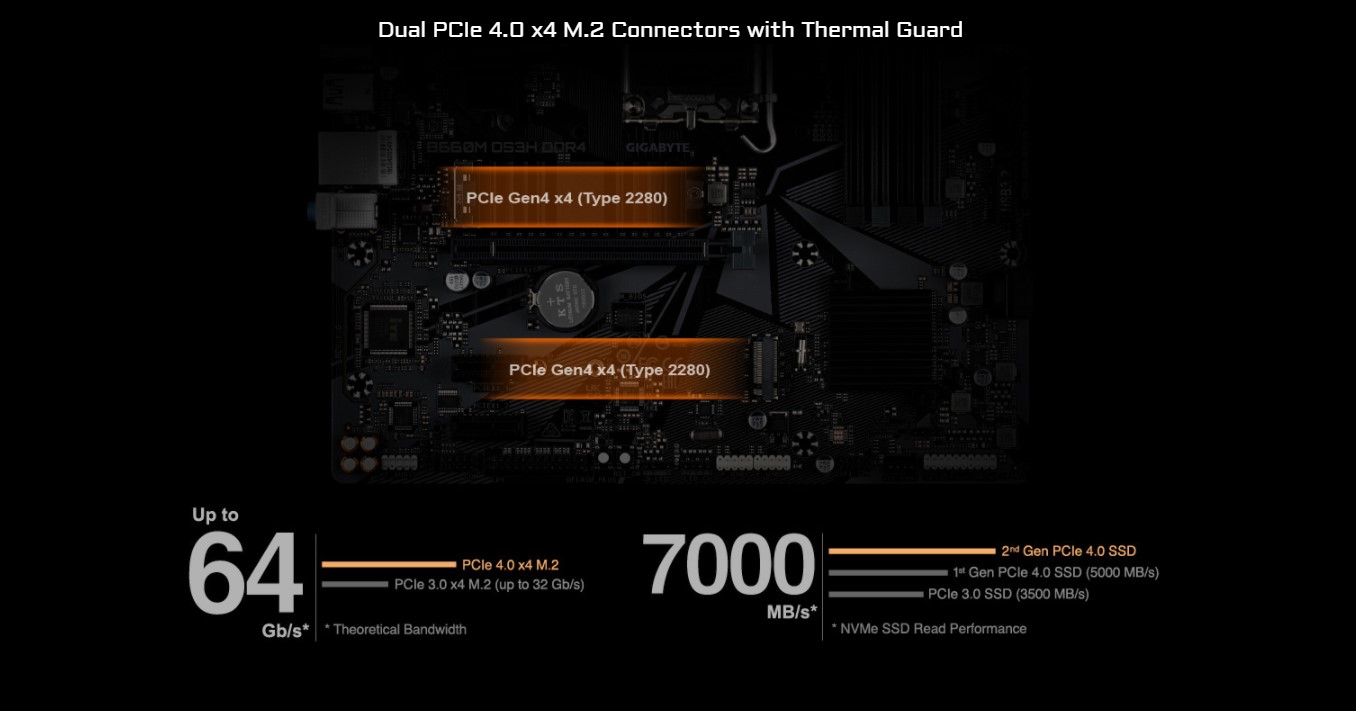

CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
Cổng kết nối (Internal) |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
Cổng kết nối (Back Panel) |
2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
LAN / Wireless |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Kích cỡ |
Micro ATX Form Factor; 24.4cm x 24.4cm |
Sản phẩm |
Bo mạch chủ |
Tên Hãng |
Gigabyte |
Model |
B660M DS3H DDR4 |
CPU hỗ trợ |
Intel |
Chipset |
B660 |
RAM hỗ trợ |
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules |
Khe cắm mở rộng |
1 x PCI Express x16 slot, running at x16 |
Ổ cứng hỗ trợ |
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
Cổng kết nối (Internal) |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
Cổng kết nối (Back Panel) |
2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
LAN / Wireless |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Kích cỡ |
Micro ATX Form Factor; 24.4cm x 24.4cm |
