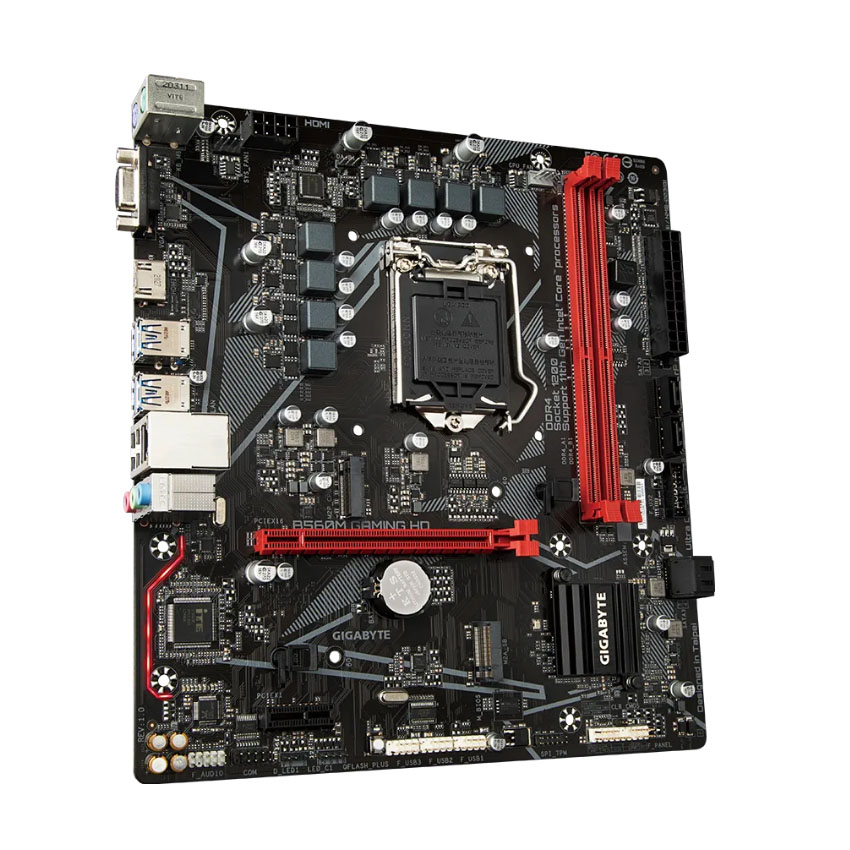

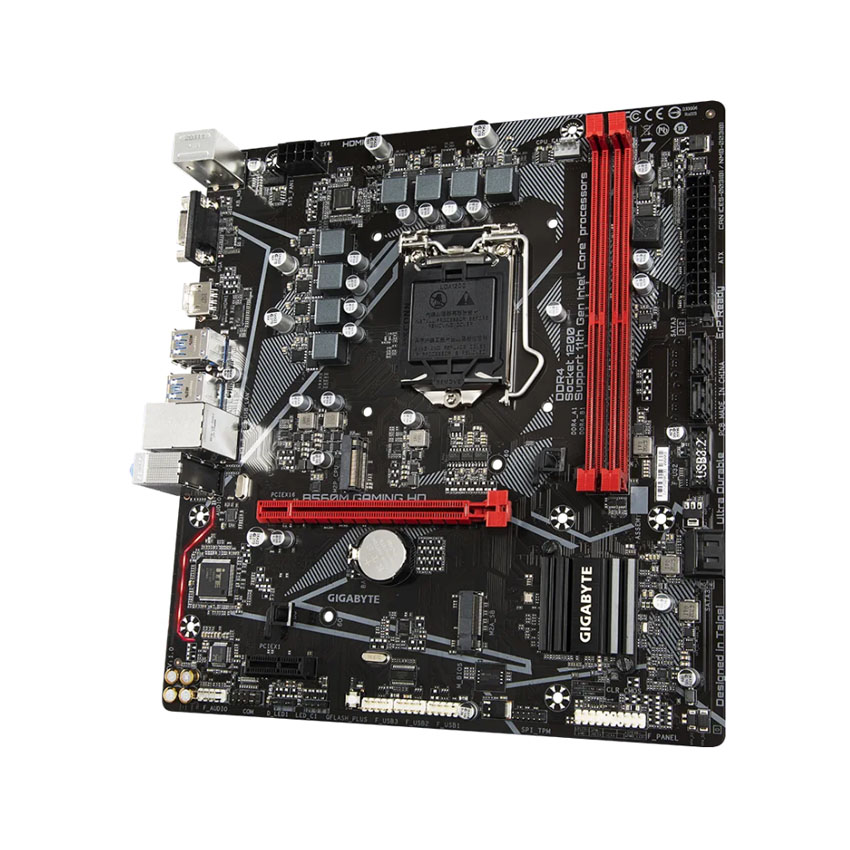

Mainboard Gigabyte B560M GAMING HD - Cũ đẹp (Tray)

Tên Hãng

GIGABYTE

Model

B560M GAMING HD

CPU hỗ trợ

Intel

Chipset

B560

RAM hỗ trợ

2 x DDR4 DIMM sockets supporting up to 64 GB
11th Generation Intel^® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel^® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:Support for DDR4 2666/2400/2133 MHz memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x1 slot (PCIEX1)

Ổ cứng hỗ trợ

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)^(Note)
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
4 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

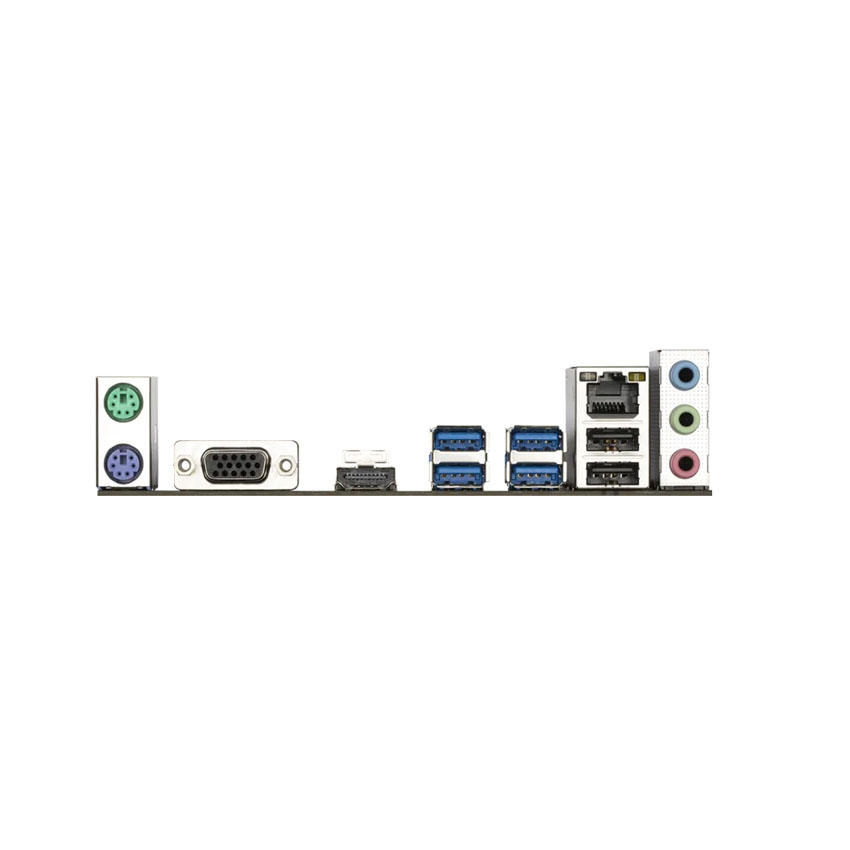

Cổng kết nối (Back Panel)

1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

LAN / Wireless

Realtek^® GbE LAN chip (1 Gbit/100 Mbit)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 22.5cm
