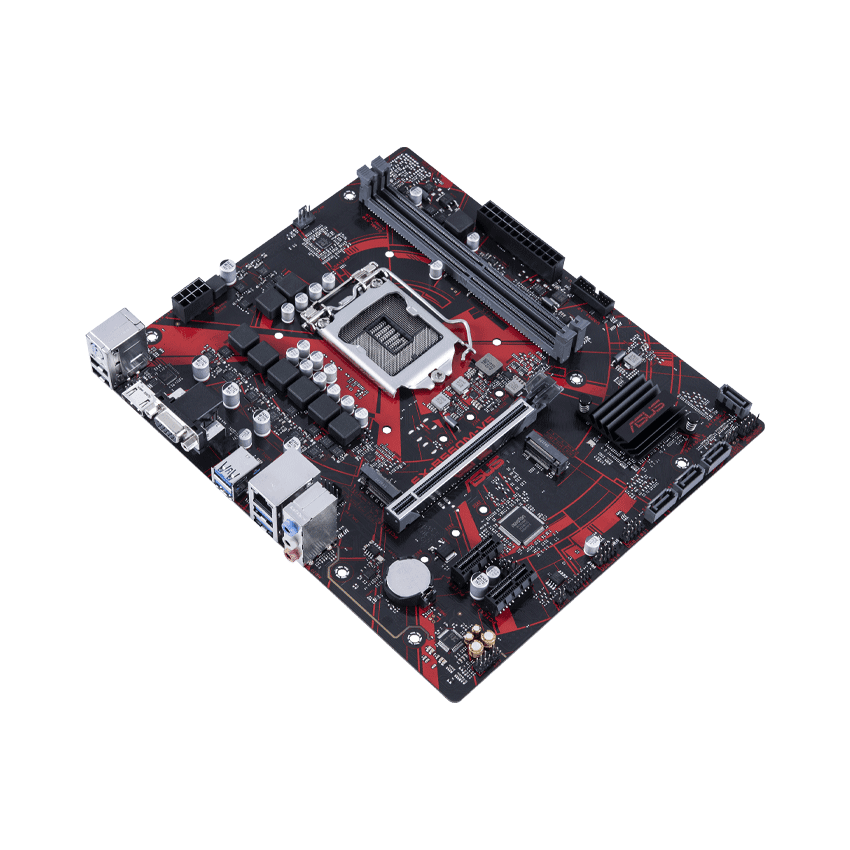

Mainboard ASUS EX-B560M-V5 (Intel B560, Socket 1200, m-ATX, 2 khe Ram DDR4)

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

EX-B560M-V5

CPU hỗ trợ

Hỗ trợ cho thế hệ thứ 10&11 Intel® Core Socket LGA1200

Chipset

B560

RAM hỗ trợ

2 x DDR4 DIMM Slots ( tối đa 64GB )
Supports DDR4 5000(OC)/4800(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC) 3200(OC)/2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory

Khe cắm mở rộng

1 x PCI Express 4.0/3.0 x16 Slot
1 x PCI Express 3.0 x16 Slot

1 x PCI Express 3.0 x1 Slot

Ổ cứng hỗ trợ

6 x SATA3 6.0 Gb/s Connectors

Cổng kết nối (Internal)

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

2x M.2 slot (Key M)

4 x SATA 6Gb/s ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Speaker header

1 x 10-1 pin System Panel header

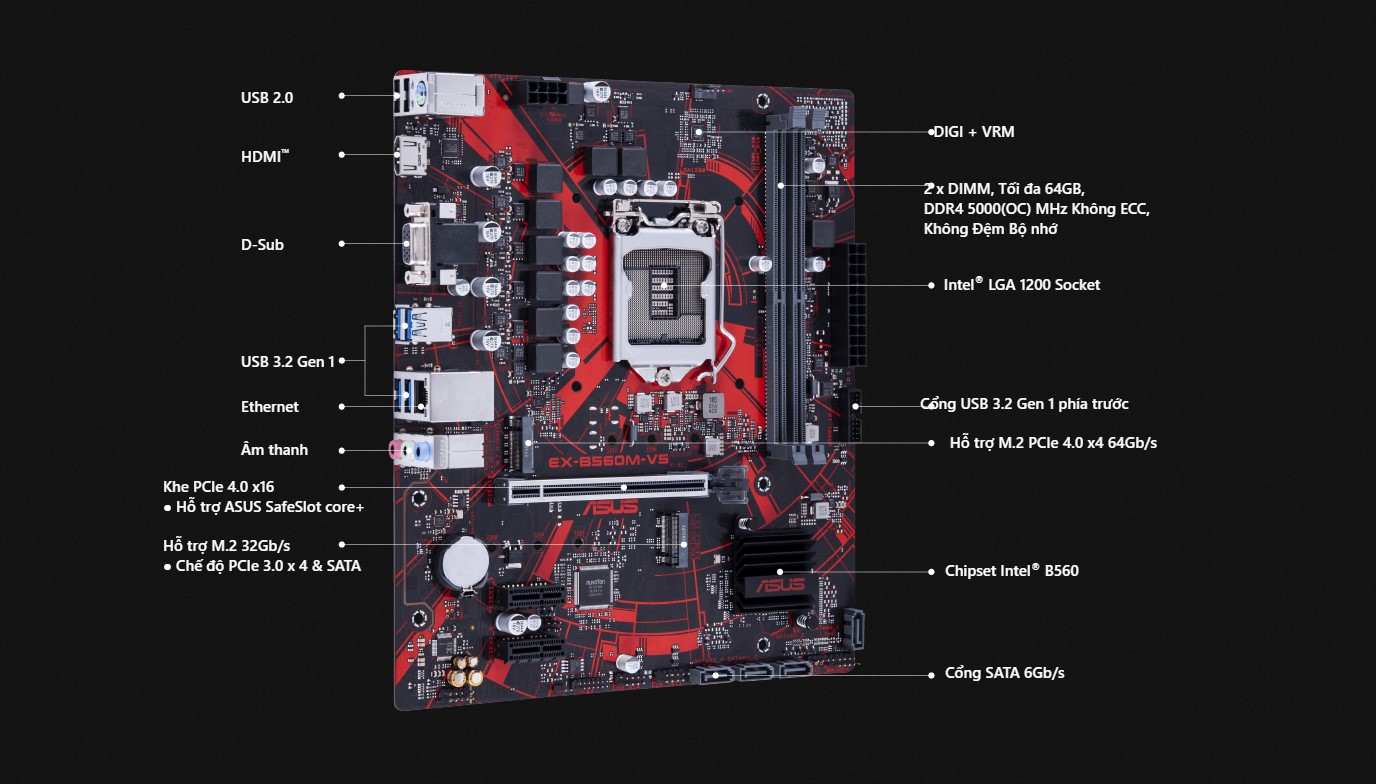

Cổng kết nối (Back Panel)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x D-Sub port

1 x HDMITM port

3 x Audio jacks

1 x Realtek 1Gb Ethernet port

1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

1 x Realtek 1Gb Ethernet

Kích cỡ

Micro ATX Form Factor: 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
