| CPU hỗ trợ |

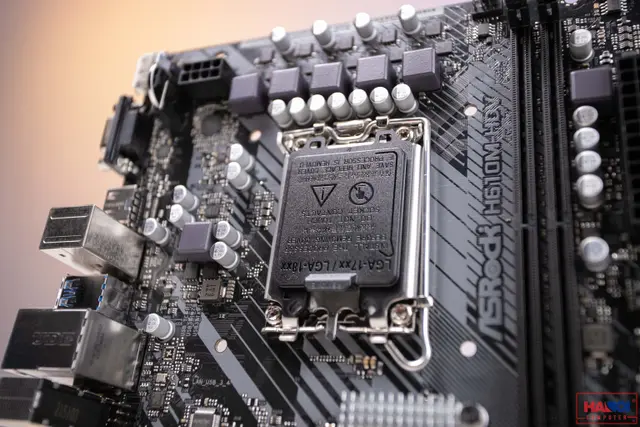

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset |
Intel® H610 |
| Memory |
Dual Channel DDR4 Memory Technology
-2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Cổng xuất hình |
HDMI
DisplayPort
D-Sub
|
| Khe cắm mở rộng |

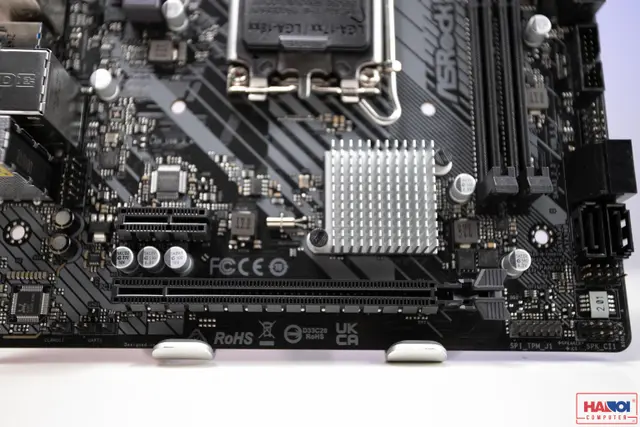

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE1)*
*Supports NVMe SSD as boot disks
|
| Lưu trữ |
- 4 x SATA3 6.0 Gb/s Connectors |
| Ethernet |
1 x Intel® 2.5Gb Ethernet |
| TUF LANGuard |
| Wireless & Bluetooth |
|
| |
| |
| |
| USB |
Rear USB:Total 8 ports |
| |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) |
| 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®) |
| |
| Front USB:Total 7 ports |
| |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| - Supports up to 24-Bit/192 kHz playback |
| Audio Features |
| - Audio Shielding |
| - Rear optical S/PDIF out port |
| - Premium audio capacitors |
| - Dedicated audio PCB layers |
| - Audio Cover |
| Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) |
| 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®) |
| 1 x DisplayPort |
| 1 x HDMI® port |
| 1 x Wi-Fi Module |
| 1 x Intel® 2.5Gb Ethernet port |
| 5 x Audio jacks |
| 1 x Optical S/PDIF out port |
| Intrernal I/O Connectors |

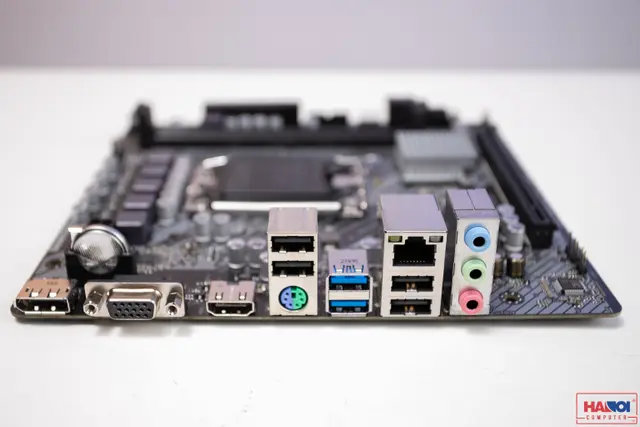

- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Phần mềm đi kèm |
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
|
| BIOS |
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
|
| Phụ kiện |

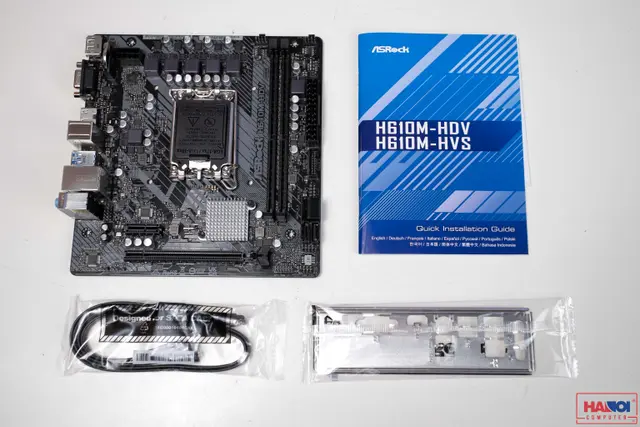

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
|
| Kích thước |
M-ATX |
