Sản phẩm | Bo mạch chủ |
Tên Hãng | Gigabyte |
Model | Z790 AORUS MASTER |
CPU hỗ trợ | Intel |
Chipset | Z790 |
RAM hỗ trợ | Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules |
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
Khe cắm mở rộng | CPU: |
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. | |
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
Chipset: | |
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) | |
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) | |
Ổ cứng hỗ trợ | CPU: |
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) | |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
Chipset: | |
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
4 x SATA 6Gb/s connectors | |
Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector |
2 x 8-pin ATX 12V power connectors | |
1 x CPU fan header | |
1 x water cooling CPU fan header | |
4 x system fan headers | |
4 x system fan/water cooling pump headers | |
2 x addressable LED strip headers | |
2 x RGB LED strip headers | |
5 x M.2 Socket 3 connectors | |
4 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support | |
2 x USB 3.2 Gen 1 headers | |
2 x USB 2.0/1.1 headers | |
1 x noise detection header | |
2 x Thunderbolt™ add-in card connectors | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
1 x power button | |
1 x reset button | |
1 x reset jumper | |
1 x Clear CMOS jumper | |
2 x temperature sensor headers | |
Voltage Measurement Points | |

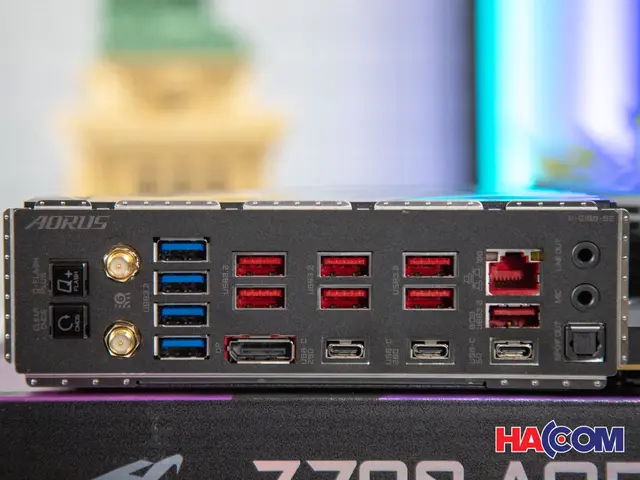

Cổng kết nối (Back Panel) | 1 x Q-Flash Plus button |
1 x Clear CMOS button | |
2 x SMA antenna connectors (2T2R) | |
1 x DisplayPort | |
1 x USB Type-C® port, with USB 3.2 Gen 1 support | |
2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support | |
7 x USB 3.2 Gen 2 Type-A ports (red) | |
4 x USB 3.2 Gen 1 ports | |
1 x RJ-45 port | |
1 x optical S/PDIF Out connector | |
2 x audio jacks | |
LAN / Wireless | Marvell® AQtion AQC113C 10GbE LAN chip |
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) | |
Intel® Killer™ Wi-Fi 6E AX1690 | |
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
2. BLUETOOTH 5.3 | |
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
Kích cỡ | E-ATX Form Factor; 30.5cm x 26.0cm |
