| Sản phẩm | Bo mạch chủ |
| Tên Hãng | GIGABYTE |
| Mode | B660M GAMING X DDR4 |
| CPU hỗ trợ | Intel |
| Chipset | B660 |
| RAM hỗ trợ | Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MHz memory modules |
| 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Dual channel memory architecture |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
| Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| Ổ cứng hỗ trợ | CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| 2. 4 x SATA 6Gb/s connectors |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| Cổng kết nối (Internal) | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector |
| 3. 1 x CPU fan header |
| 4. 3 x system fan headers |
| 5. 2 x addressable LED strip headers |
| 6. 2 x RGB LED strip headers |
| 7. 2 x M.2 Socket 3 connectors |
| 8. 4 x SATA 6Gb/s connectors |
| 9. 1 x front panel header |
| 10. 1 x front panel audio header |
| 11. 1 x USB Type-C® header, with USB 3.2 Gen 2 support |
| 12. 1 x USB 3.2 Gen 1 header |
| 13. 2 x USB 2.0/1.1 headers |
| 14. 1 x S/PDIF Out header |
| 15. 2 x Thunderbolt™ add-in card connectors |
| 16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| 17. 1 x serial port header |
| 18. 1 x reset button |
| 19. 1 x Q-Flash Plus button |
| 20. 1 x reset jumper |
| 21. 1 x Clear CMOS jumper |

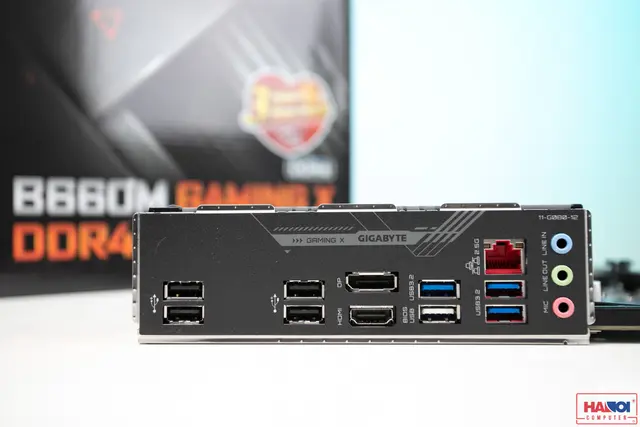

| Cổng kết nối (Back Panel) | 1. 3 x USB 3.2 Gen 1 ports |
| 2. 5 x USB 2.0/1.1 ports |
| 3. 1 x HDMI 2.1 port |
| 4. 1 x DisplayPort |
| 5. 1 x RJ-45 port |
| 6. 3 x audio jacks |
| LAN / Wireless | 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Kích cỡ | Micro ATX Form Factor; 24.4cm x 24.4cm |
