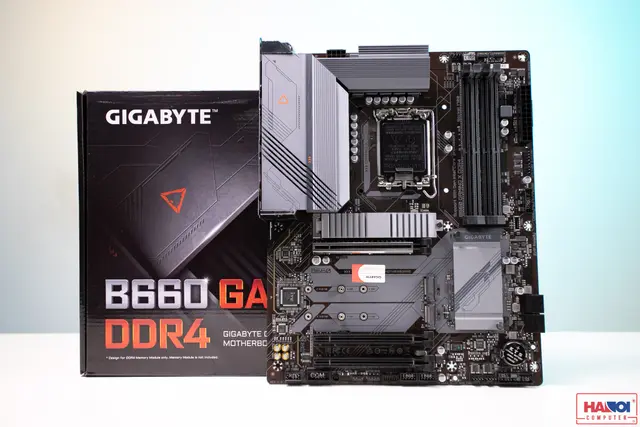

Gigabyte B660 GAMING X DDR4 là dòng bo mạch chủ chipset B660 ATX tầm trung của Gigabyte, phù hợp với các vi xử lý Pentium, Celeron,i3 & i5 hoặc i7,i9 non K thế hệ Alder Lake.
Gigabyte B660 GAMING X DDR4 phù hợp với các bộ máy tính phổ thông và tầm trung, cho nhu cầu chơi game và làm việc văn phòng cũng như Multimedia cơ bản.
Tham khảo thêm nhiều mẫu bo mạch chủ khác thuộc dòng mainboard B660 tại đây : https://hacom.vn/mainbroad-intel-b660
Sản phẩm | Bo mạch chủ |
Tên Hãng | Gigabyte |
Model | B660 GAMING X |
CPU hỗ trợ | Intel |
Chipset | B660 |
RAM hỗ trợ | Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
2 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_2) | |
Ổ cứng hỗ trợ | CPU: |

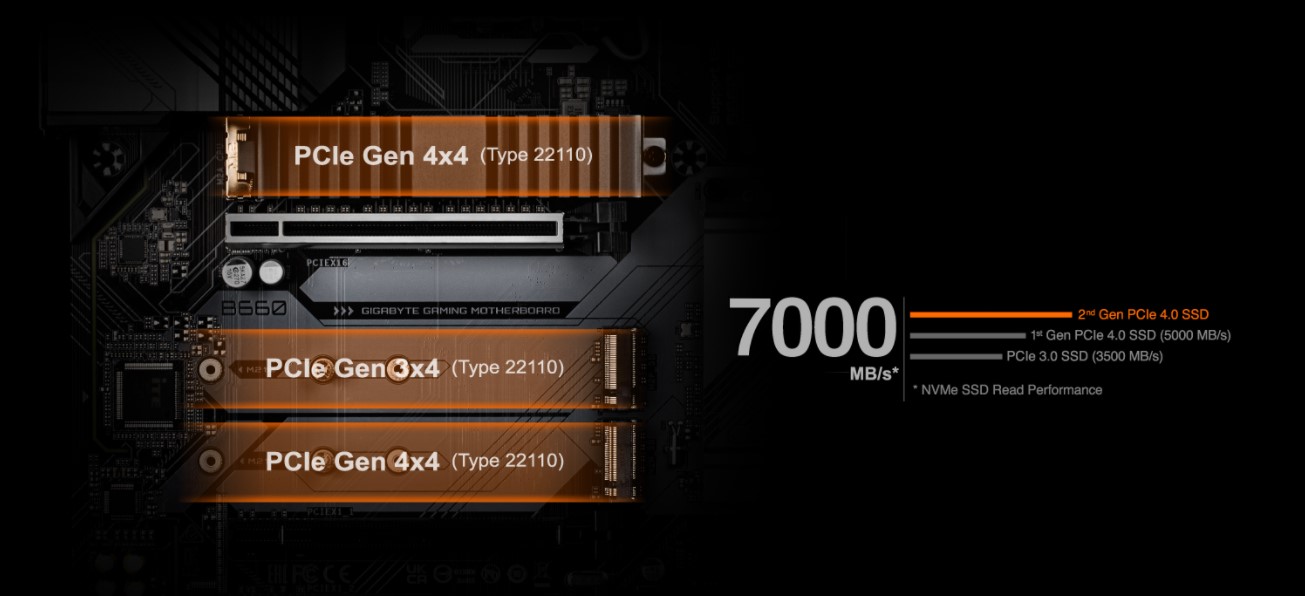

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
Chipset: | |
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) | |
3. 4 x SATA 6Gb/s connectors | |
Cổng kết nối (Internal) | 1. 1 x 24-pin ATX main power connector |
2. 1 x 8-pin ATX 12V power connector | |
3. 1 x CPU fan header | |
4. 1 x water cooling CPU fan header | |
5. 3 x system fan headers | |
6. 1 x system fan/water cooling pump header | |
7. 2 x addressable LED strip headers | |
8. 2 x RGB LED strip headers | |
9. 3 x M.2 Socket 3 connectors | |
10. 4 x SATA 6Gb/s connectors | |
11. 1 x front panel header | |
12. 1 x front panel audio header | |
13. 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
14. 1 x USB 3.2 Gen 1 header | |
15. 2 x USB 2.0/1.1 headers | |
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
17. 1 x serial port header | |
18. 1 x Q-Flash Plus button | |
19. 1 x reset button | |
20. 1 x reset jumper | |
21. 1 x Clear CMOS jumper | |

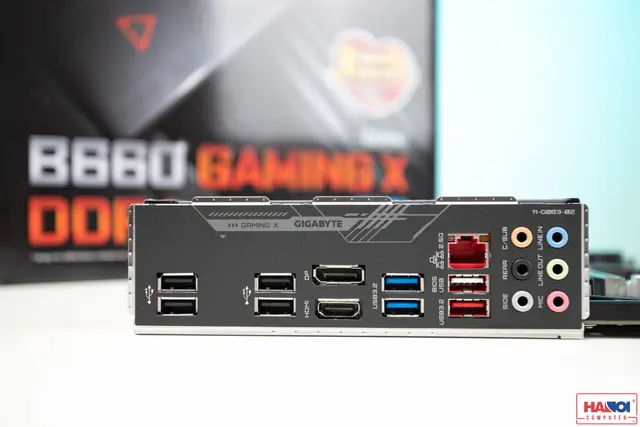

Cổng kết nối (Back Panel) | 1. 1 x USB 3.2 Gen 2 Type-A port (red) |
2. 2 x USB 3.2 Gen 1 ports | |
3. 5 x USB 2.0/1.1 ports | |
4. 1 x DisplayPort | |
5. 1 x HDMI 2.0 port | |
6. 1 x RJ-45 port | |
7. 6 x audio jacks | |
LAN / Wireless | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Kích cỡ | ATX Form Factor; 30.5cm x 24.4cm |
