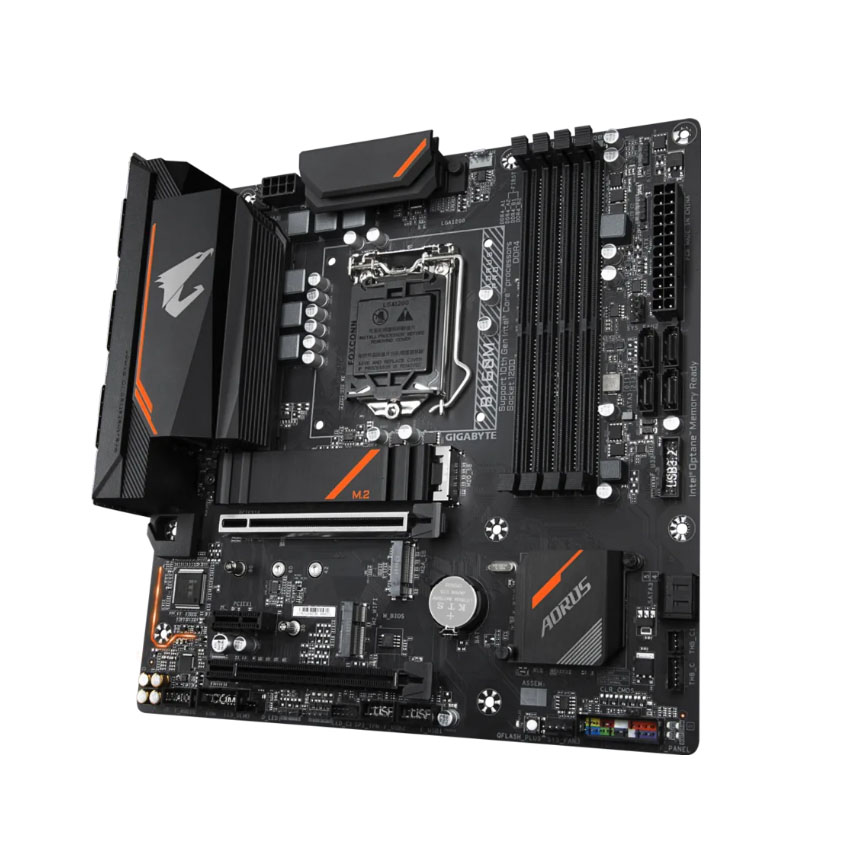

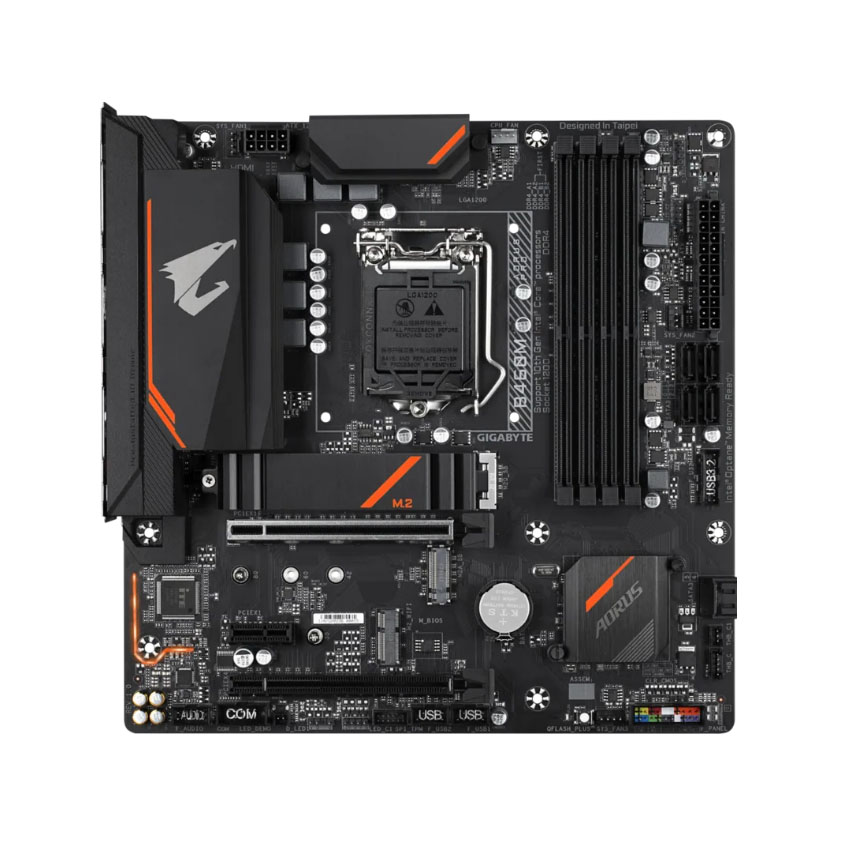

Mainboard Gigabyte B460M AORUS PRO

Support for 10th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package

L3 cache varies with CPU

Intel Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules

Intel Core™ i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Integrated Graphics Processor-Intel HD Graphics support:

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.

Support for up to 3 displays at the same time
Maximum shared memory of 512 MB

Realtek ALC1200 codec

High Definition Audio

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

     1 x M.2 Socket 1 connector for the wireless communication          module (M2_WIFI)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel Optane™ Memory Ready

Chipset:

1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

Chipset:

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

6 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

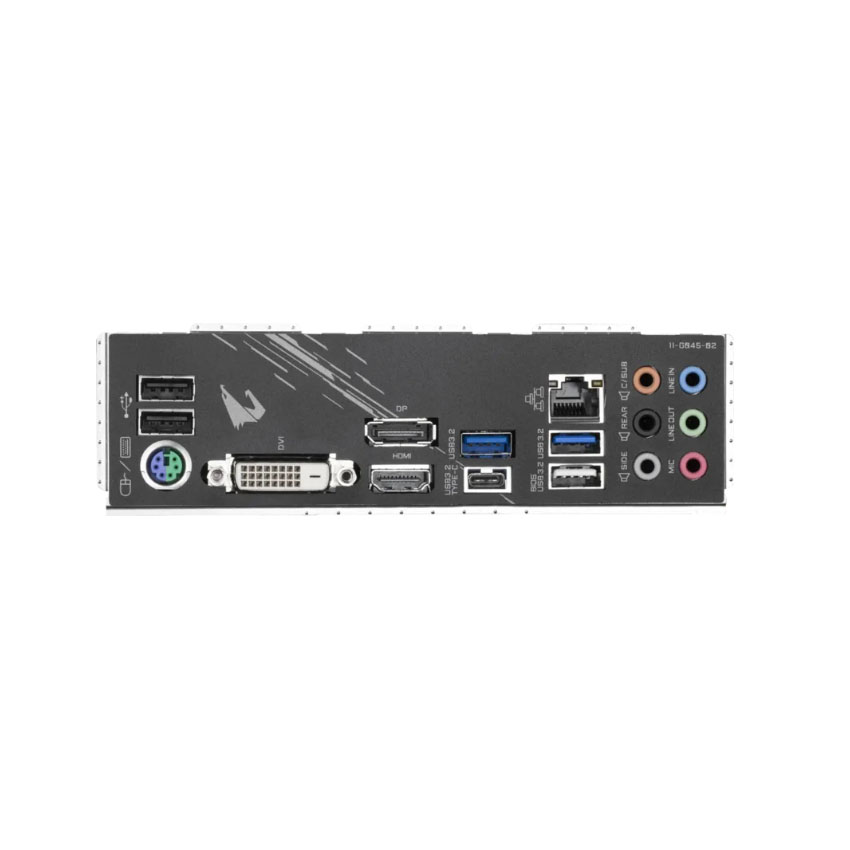

Chipset:

1 x PS/2 keyboard/mouse port

1 x DVI-D port

1 x DisplayPort

1 x HDMI port

1 x USB Type-C™ port, with USB 3.2 Gen 1 support

3 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash
