| Sản phẩm |
Bo mạch chủ |
| Tên Hãng |
Asus |
| Model |
ROG MAXIMUS Z790 HERO |
| CPU hỗ trợ |
Intel |
| Chipset |
Intel Z790 Chipset |
| RAM hỗ trợ |
4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |

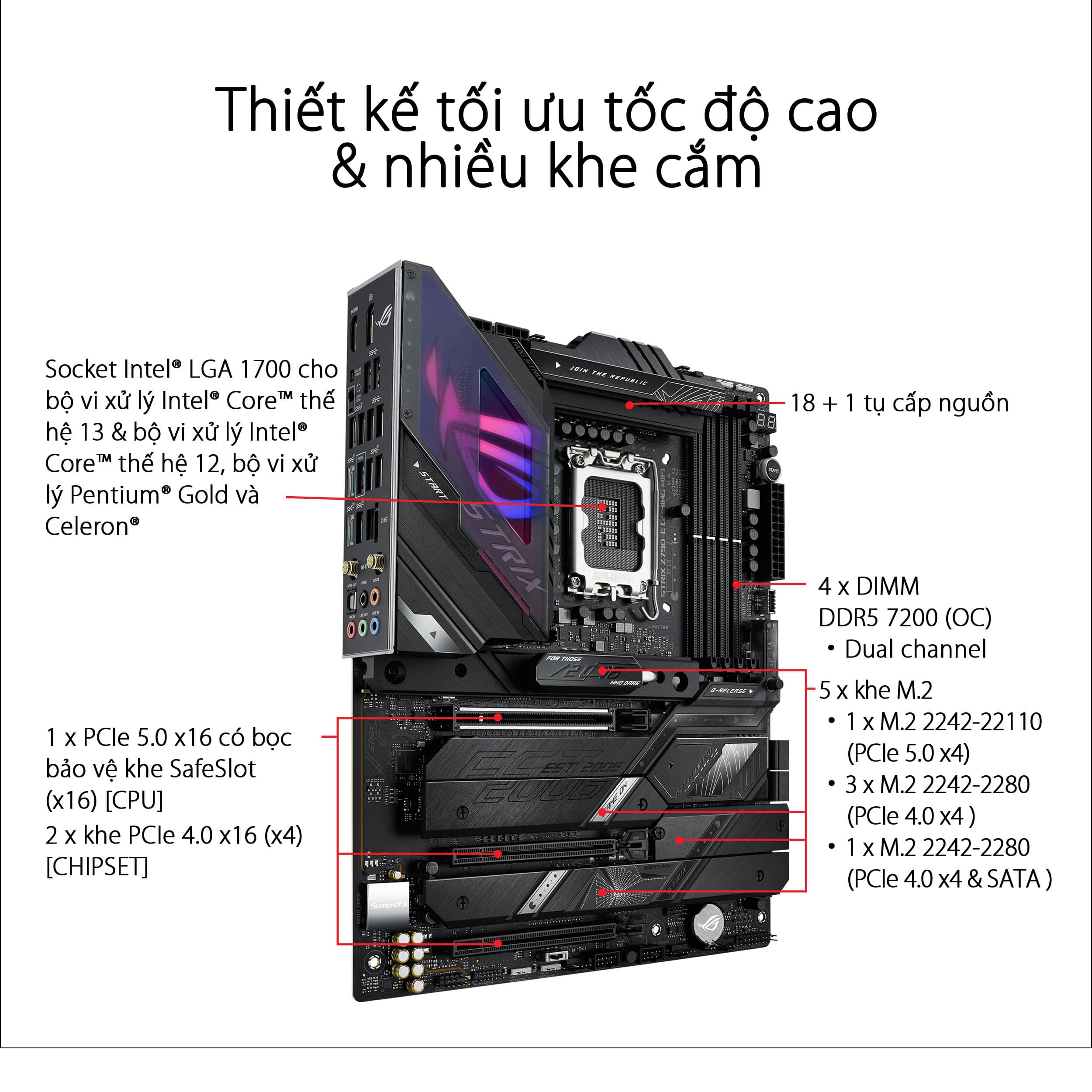

| Khe cắm mở rộng |
Intel® 13th & 12th Gen Processors |
| 1 x PCIe 5.0 x16 slot |
| Intel® Z790 Chipset |
| 2 x PCIe 4.0 x16 slots (support x4 mode) |
| 1 x PCIe 3.0 x1 slot |
| Ổ cứng hỗ trợ |
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® 13th & 12th Gen Processors* |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Intel® Z790 Chipset** |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes) |
| 4 x SATA 6Gb/s ports |
| Cổng kết nối (Internal |

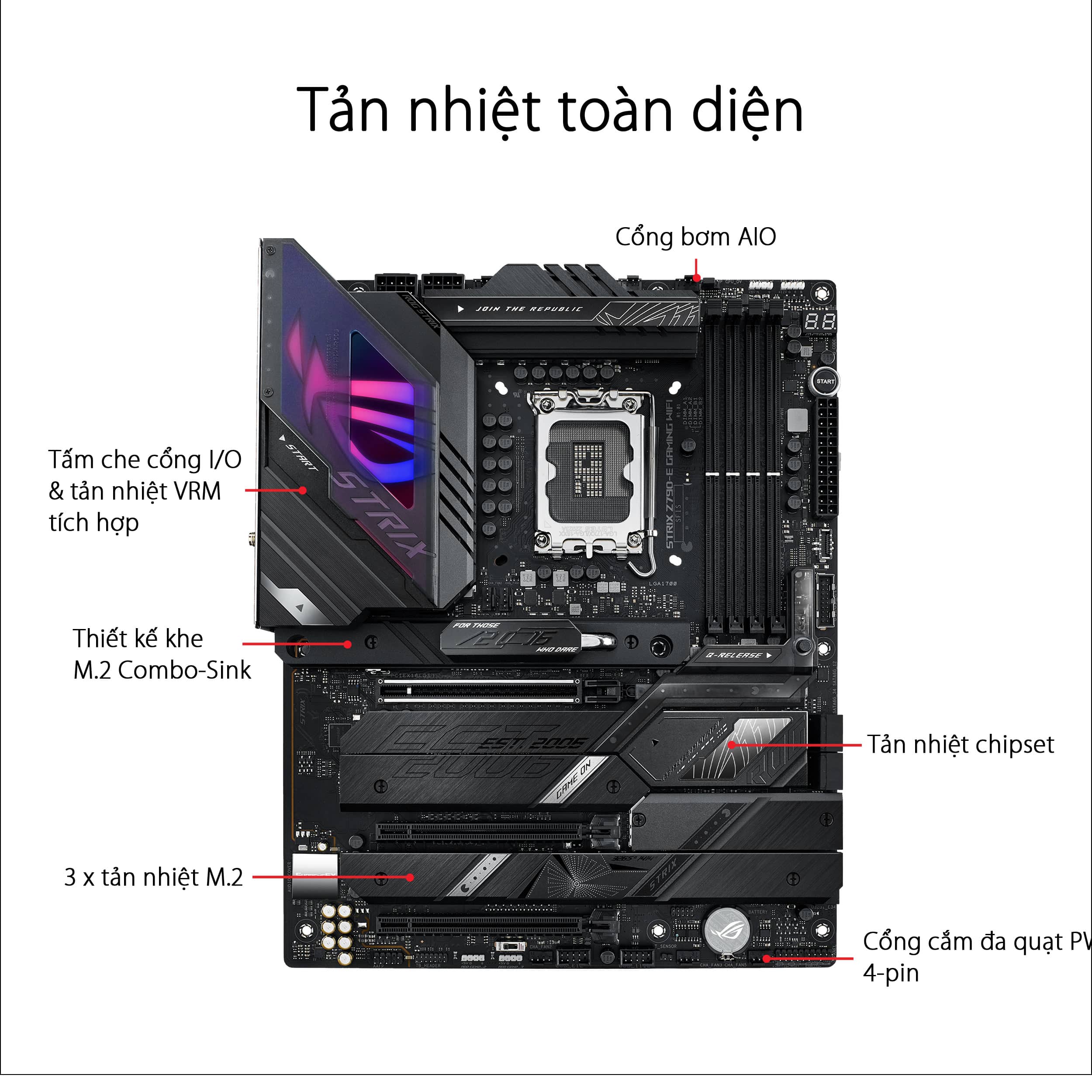

Fan and Cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 5 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V Power connectors |
| Storage related |
| 5 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge) |
| 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Miscellaneous |

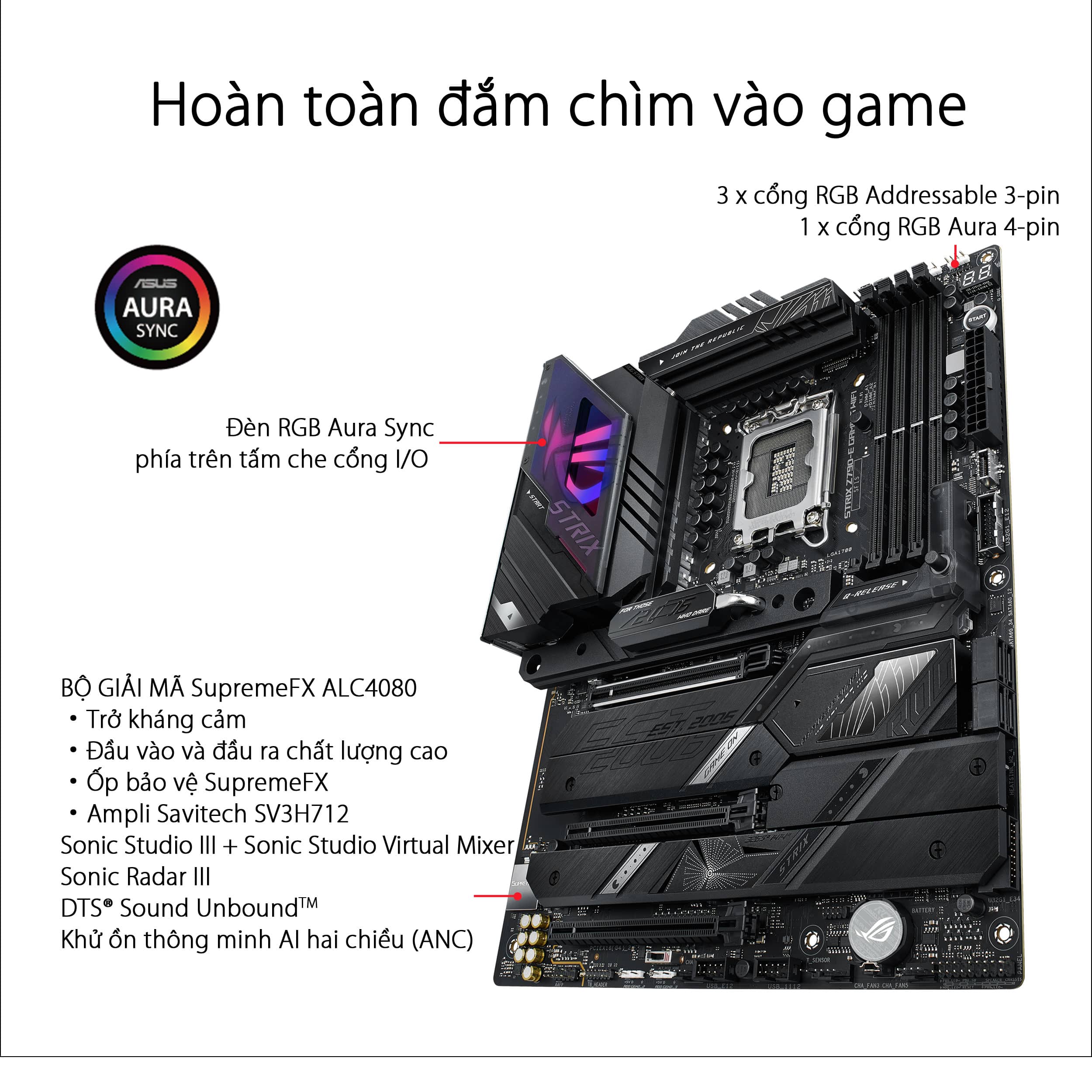

| 3 x Addressable Gen 2 headers |
| 1 x Alternative PCIe Mode Switch |
| 1 x AURA RGB header |
| 1 x CPU Over Voltage jumper |
| 1 x Front Panel Audio header (AAFP) |
| 1 x 20-3 pin System Panel header with Chassis intrude function |
| 1 x Start button |
| 1 x Thermal Sensor header |
| 1 x Thunderbolt™ (USB4®) header |

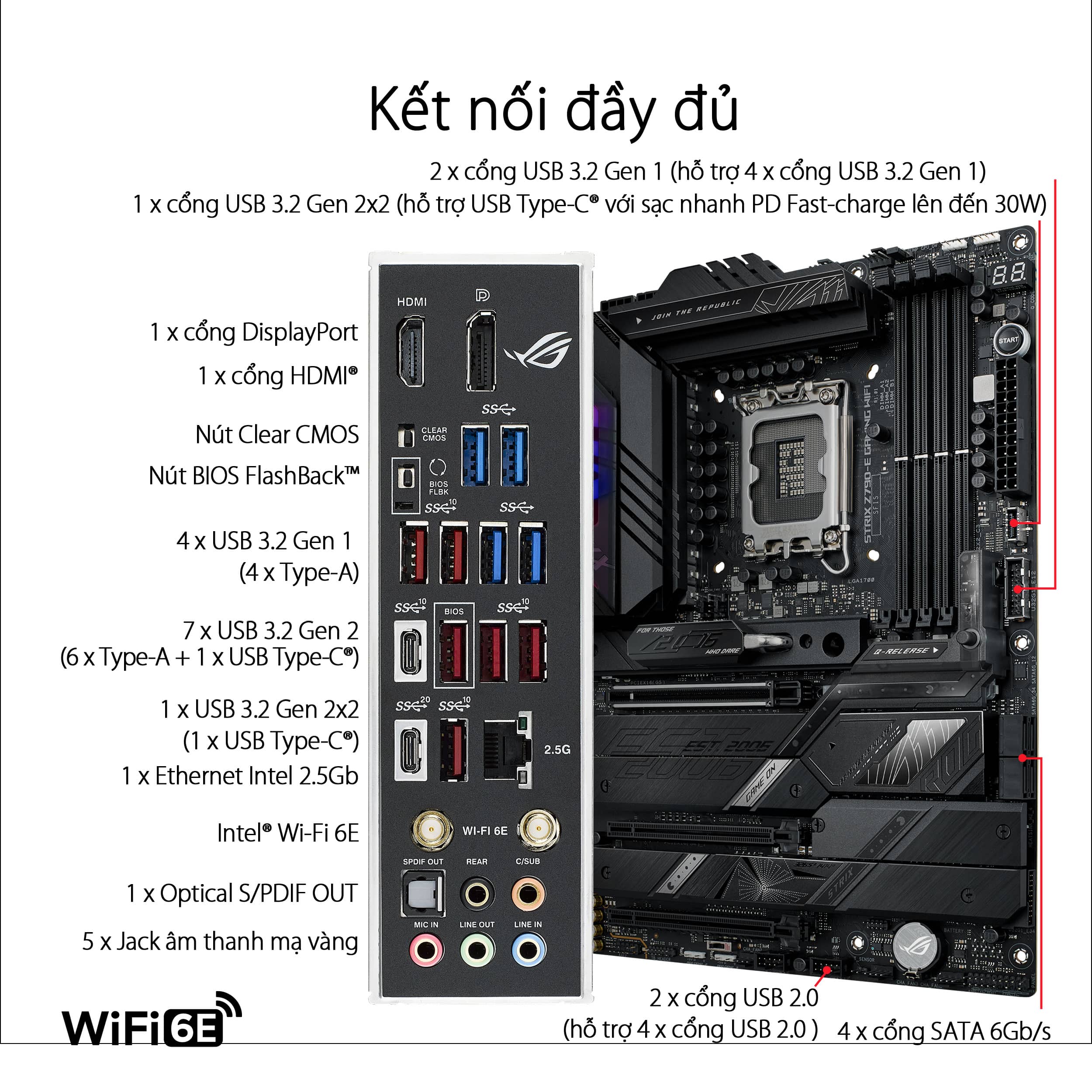

| Cổng kết nối (Back Panel) |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
| 7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C® ) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| 1 x HDMI™ port |
| 1 x DisplayPort |
| 1 x Wi-Fi Module |
| 1 x Intel® 2.5Gb Ethernet port |
| 5 x Gold-plated audio jacks* |
| 1 x Optical S/PDIF out port |
| 1 x BIOS FlashBack™ button |
| 1 x Clear CMOS button |
| LAN / Wireless |
Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| 1 x Intel® 2.5Gb Ethernet |
| ASUS LANGuard |
| Kích cỡ |
ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
