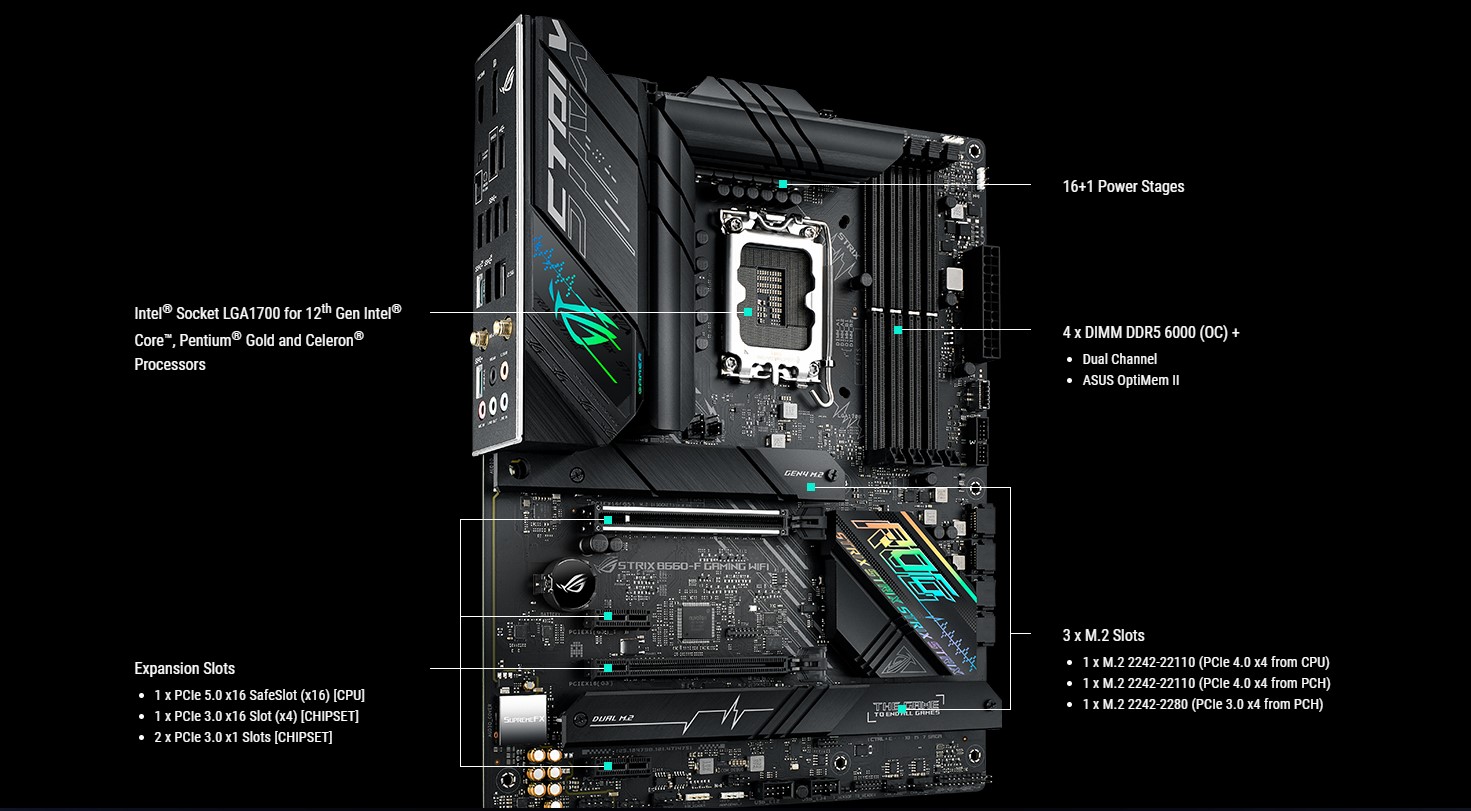

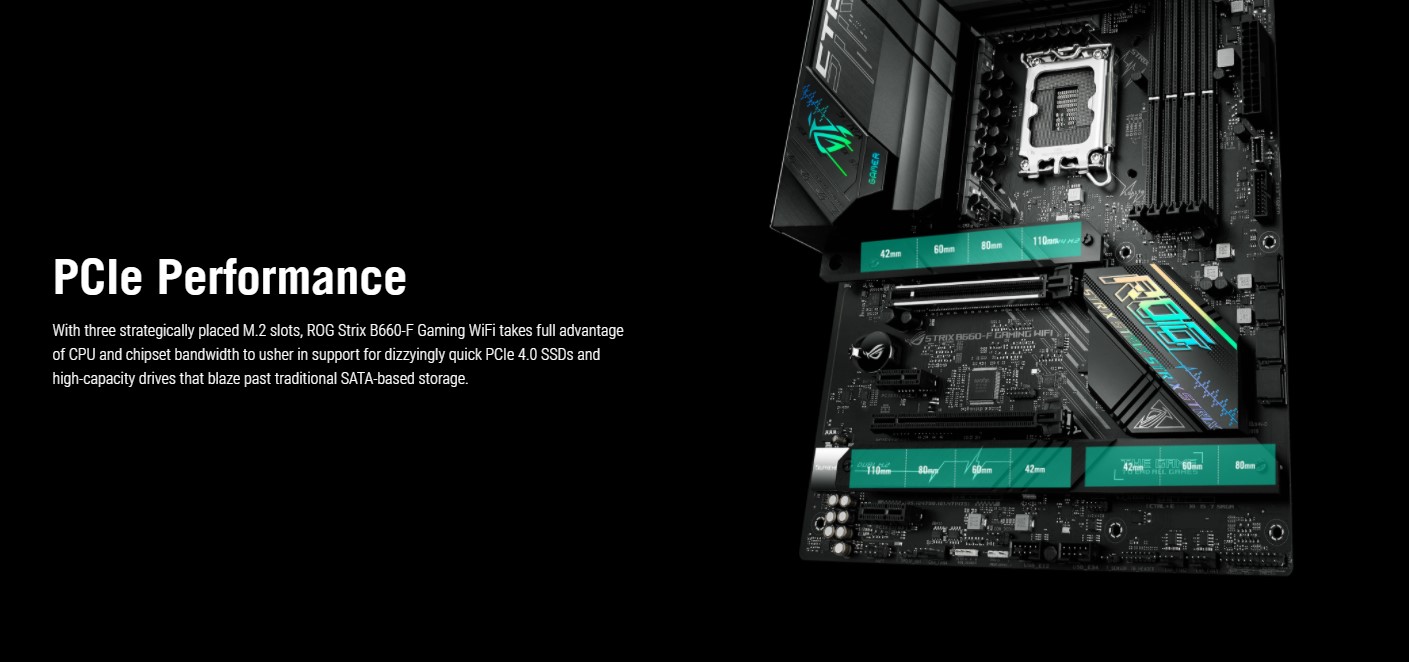

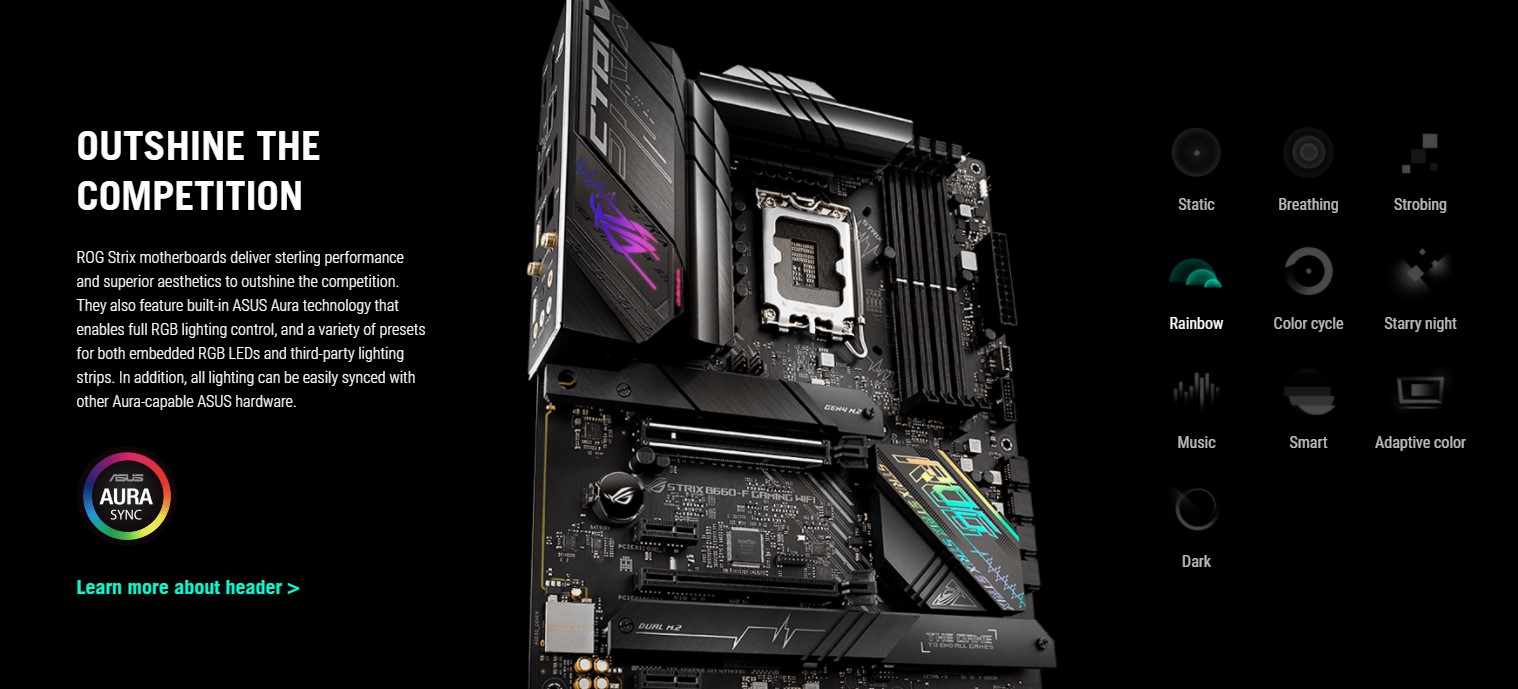

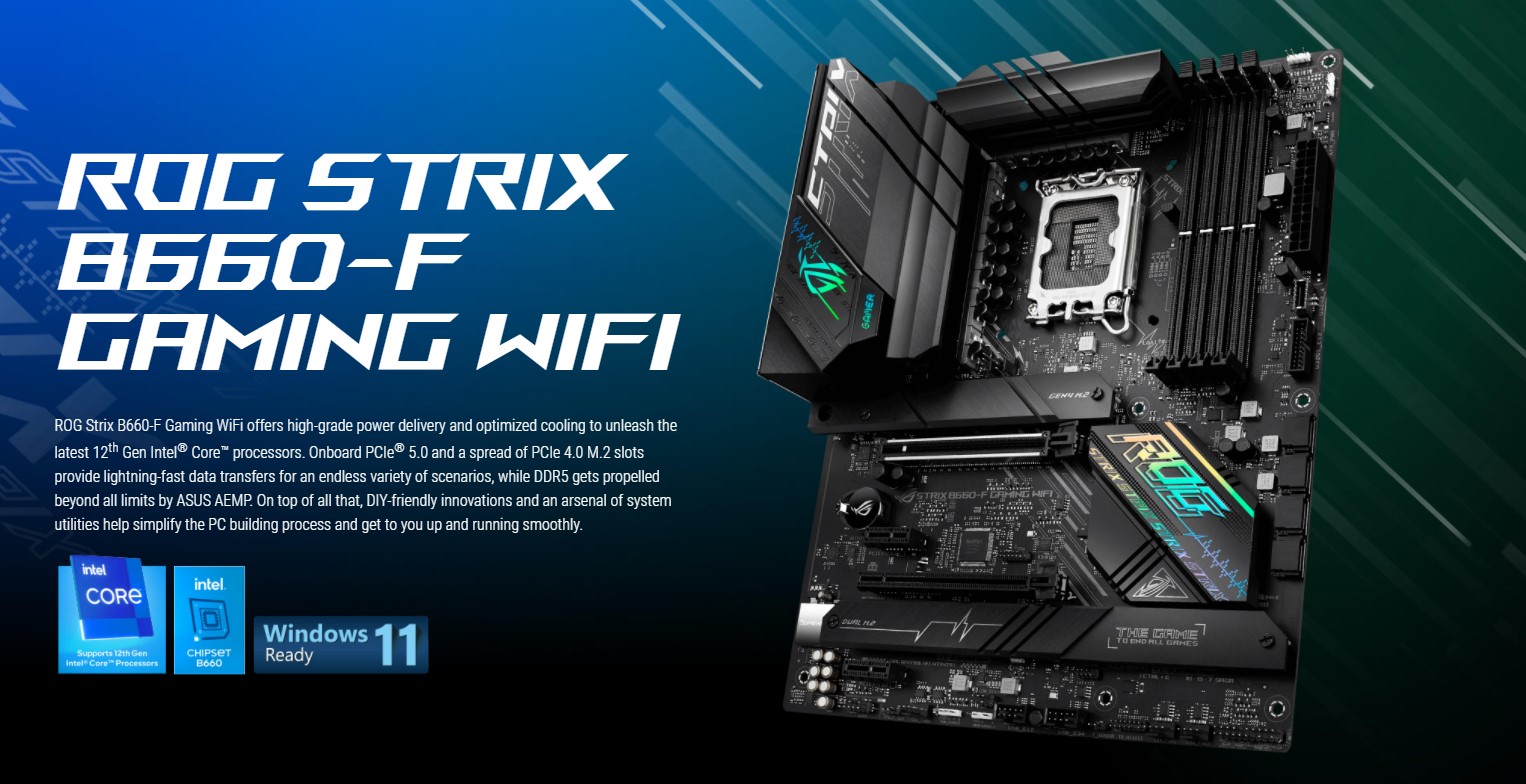

Asus ROG STRIX B660-F GAMING WIFI là dòng bo mạch chủ chipset B660 tầm trung, phù hợp với các vi xử lý Pentium, Celeron,i3 & i5 hoặc i7,i9 non K thế hệ Alder Lake.
Asus ROG STRIX B660-F GAMING WIFI phù hợp với các bộ máy tính phổ thông và tầm trung, cho nhu cầu chơi game và làm việc văn phòng cũng như Multimedia cơ bản.
Tham khảo thêm nhiều mẫu bo mạch chủ khác thuộc dòng mainboard B660 tại đây : https://hacom.vn/mainbroad-intel-b660
Sản phẩm | Bo mạch chủ |
Tên Hãng | ASUS |
Model | ROG STRIX B660-F GAMING WIFI |
CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 14, 13 và 12 Intel® Core Socket LGA1700 |
Chipset | B660 |
RAM hỗ trợ | 4 x DIMM, Max. 196GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800, Un-buffered Memory*t/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
Khe cắm mở rộng | Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel® B660 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode)*** 2 x PCIe 3.0 x1 slots * Please check PCIe bifurcation table in support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot *** The PCIEX16(G3) shares bandwidth with the PCIEX1(G3)_1 and PCIEX1(G3)_2. When either PCIEX1(G3) slot enables, PCIEX16(G3) will run x2 mode. |
Ổ cứng hỗ trợ | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. * Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
Cổng kết nối (Internal) | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Cổng kết nối (Back Panel) | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 ports (1 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
Lan | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
WIRELESS/BLUETOOTH | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
Kích cỡ | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Sản phẩm | Bo mạch chủ |
Tên Hãng | ASUS |
Model | ROG STRIX B660-F GAMING WIFI |
CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 14, 13 và 12 Intel® Core Socket LGA1700 |
Chipset | B660 |
RAM hỗ trợ | 4 x DIMM, Max. 196GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800, Un-buffered Memory*t/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
Khe cắm mở rộng | Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel® B660 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode)*** 2 x PCIe 3.0 x1 slots * Please check PCIe bifurcation table in support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot *** The PCIEX16(G3) shares bandwidth with the PCIEX1(G3)_1 and PCIEX1(G3)_2. When either PCIEX1(G3) slot enables, PCIEX16(G3) will run x2 mode. |
Ổ cứng hỗ trợ | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. * Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
Cổng kết nối (Internal) | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Cổng kết nối (Back Panel) | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 ports (1 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C®) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
Lan | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
WIRELESS/BLUETOOTH | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
Kích cỡ | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
