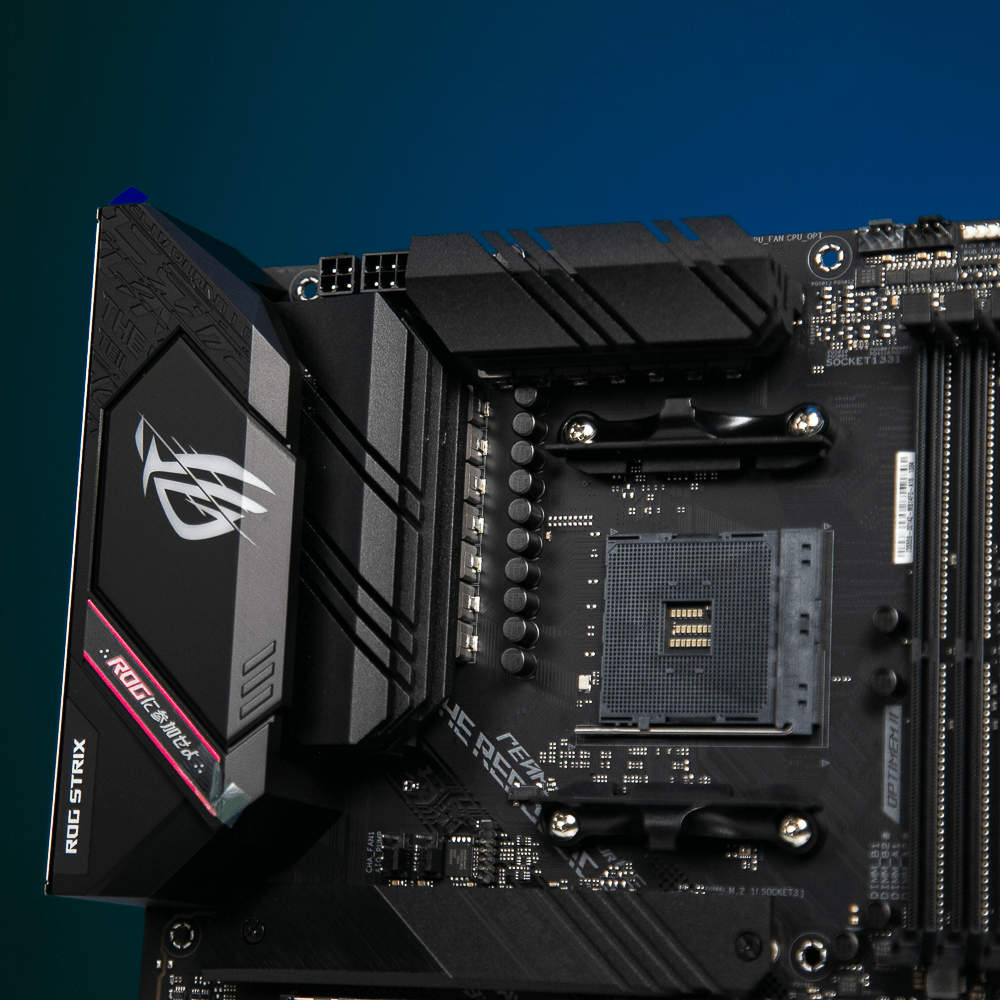

Mainboard ASUS ROG STRIX B550-F GAMING WIFI II là bo mạch chủ ATX giá phổ thông của Asus sử dụng chipset B550 của AMD, tương thích với các CPU Ryzen 3000 và 4000 series sắp ra mắt (Trừ các dòng APU như R3 3200G và R5 3400G).
*Nâng cấp Wifi lên chuẩn 6E
Với hệ thống EPU, toàn bộ hệ thống sẽ tiết kiệm được năng lượng hao phí trong khi vẫn hoạt động ổn định.
Phần mềm Fan Xpert giúp điều khiển quạt làm mát thông minh tối ưu giữa độ ồn và hiệu quả tản nhiệt.
Gia tăng ổn định của dòng điện cấp cho CPU và các linh kiện
Mainboard ASUS ROG STRIX B550-F GAMING WIFI II được trang bị chân cắm quạt 4 pin và nhiều cảm biến nhiệt đặt khắp bo mạch chủ từ đó tối ưu hiệu quả làm mát.
Mang đến khả năng điều khiển các thiết bị RGB như dây LED, quạt làm mát, ...
Bios thân thiện, cung cấp đầy đủ tính năng cho người dùng từ cơ bản đến nâng cao
Model | STRIX B550-F GAMING WIFI II |
Supported CPU | |
CPU Socket Type | AM4 |
CPU Type |
|
Chipset | AMD B550 |
Memory | |
Number of Memory Slots | 4×288pin |
Memory Standard |
|
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
Buffer Supported | Un-buffered |
Expansion Slot | |
PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
PCI Express 3.0 x16 |
1 x PCI Express 3.0 x16* * Supports x4 mode. |
PCI Express x1 | 3 x PCIe 3.0 x1 |
Storage Device | |
SATA 6Gb/s | 6 x SATA 6Gb/s |
M.2 |
* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled. |
SATA RAID | 0/1/10 |
Onboard Video Chipset | Supported only by CPU with integrated graphic |
Onboard Audio | |
Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | Intel I225-V |
Max LAN Speed | 10/100/1000/2500Mbps |
Wireless LAN | Wi-Fi 6E 802.11a/b/g/n/ac/ax |
Bluetooth | Bluetooth 5.2 |
Rear Panel Ports | |
Back I/O Ports |
|
Internal I/O Connectors | |
Onboard USB |
|
Other Connectors | Fan and cooling related
|
Physical Spec | |
Form Factor | ATX |
LED Lighting | RGB |
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin |
|
Features |
Special Features: Software Features: |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Operating System | Windows 10 64-bit, Windows 11 64-bit |
