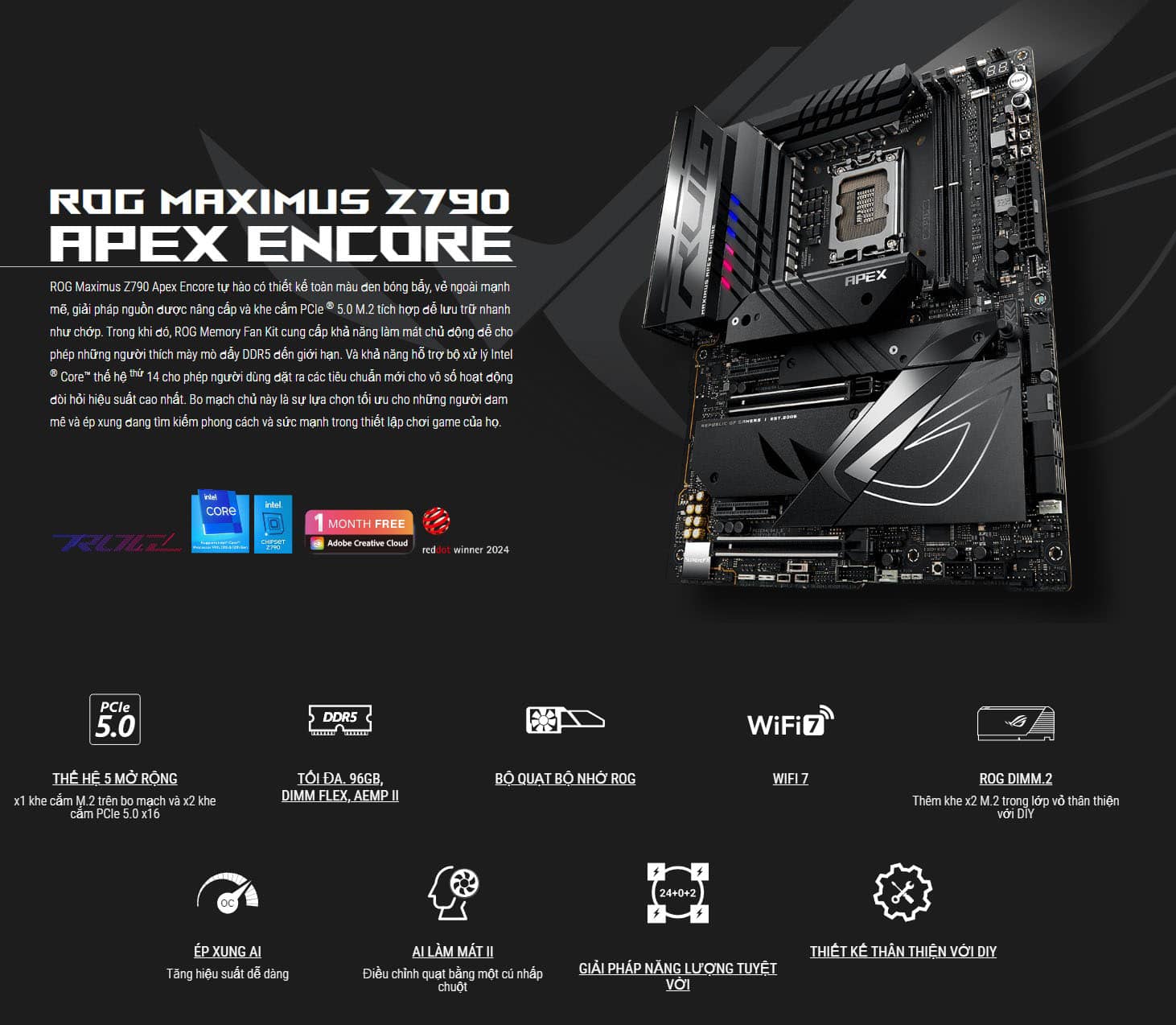

Mainboard ASUS ROG MAXIMUS Z790 APEX ENCORE

• Intel Core 12th/ 13th/ 14th
• Socket LGA1700

• Intel Core 14th & 13th & 12th: 2 x PCIe 5.0 x16 (x16 mode hoặc x8/x8 mode)
• Intel Z790 chipset: 2 x PCIe 4.0 x4

1 x M.2 2242/2260/2280 PCIe 5.0 x4

1 x M.2 2242/2260/2280 PCIe 4.0 x4

1 x M.2 2242/2260/2280 PCIe 4.0 x4  & SATA

2 x DIMM.2 2242/2260/2280/22110 PCIe 4.0 x4

4 x SATA III 6Gbps

Support Raid 0, 1, 5, 10

• LAN: Intel 2.5Gb Ethernet + ASUS LANGuard
• Wireless: Intel Wi-Fi 7 + BT 5.4

Fan and cooling

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

2 x 4-pin Chassis Fan headers

2 x 4-pin Full Speed Fan headers

1 x W_PUMP+ header

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

1 x Extra Flow Fan header

Power

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 8-pin PCIe power connector

Storage

3 x M.2 slots (Key M)

1 x DIMM.2 slot supports 2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C®)

2 x USB 5Gbps headers support additional 4 USB 5Gbps ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x 80 Light Bar jumper

3 x Addressable Gen 2 headers

1 x Alternative PCIe Mode Switch

1 x Aura RGB header

2 x BCLK button

1 x BIOS Switch button

1 x FlexKey button

1 x Front Panel Audio header (F_AUDIO)

1 x LN2 Mode jumper

1 x Osc sence header

1 x Pause switch

12 x ProbeIt Measurement Points

1 x ReTry button

2 x RSVD switches

1 x RSVD header

1 x Safe Boot button

1 x Slow Mode switch

1 x Start button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4®) header

1 x V_Latch switch

1 x USB Type-C 20Gbps port

5 x USB Type-A 10Gbps ports

4 x USB Type-A 5Gbps ports

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button

1 x PS/2 Keyboard (purple) port

1 x PS/2 Mouse (green) port
