| Sản phẩm |
Bo mạch chủ |
| Tên Hãng |
Asus |
| Model |
PRIME Z790M-PLUS D4-CSM |
| CPU hỗ trợ |
Intel |
| Chipset |
Intel Z790 Chipset |
| RAM hỗ trợ |
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC) |
| 4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC) |
| 3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000 |
| 2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
| Khe cắm mở rộng |
Intel® 13th & 12th Gen Processors* |
| 1 x PCIe 5.0 x16 slot |
| Intel® Z790 Chipset |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| 2 x PCIe 4.0 x1 slots |
| Ổ cứng hỗ trợ |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® 13th & 12th Gen Processors |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Intel® Z790 Chipset |
| M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| 4 x SATA 6Gb/s ports |
| USB |
Rear USB (Total 8 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) |
| Front USB (Total 7 ports) |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports* |
| Cổng kết nối (Internal |

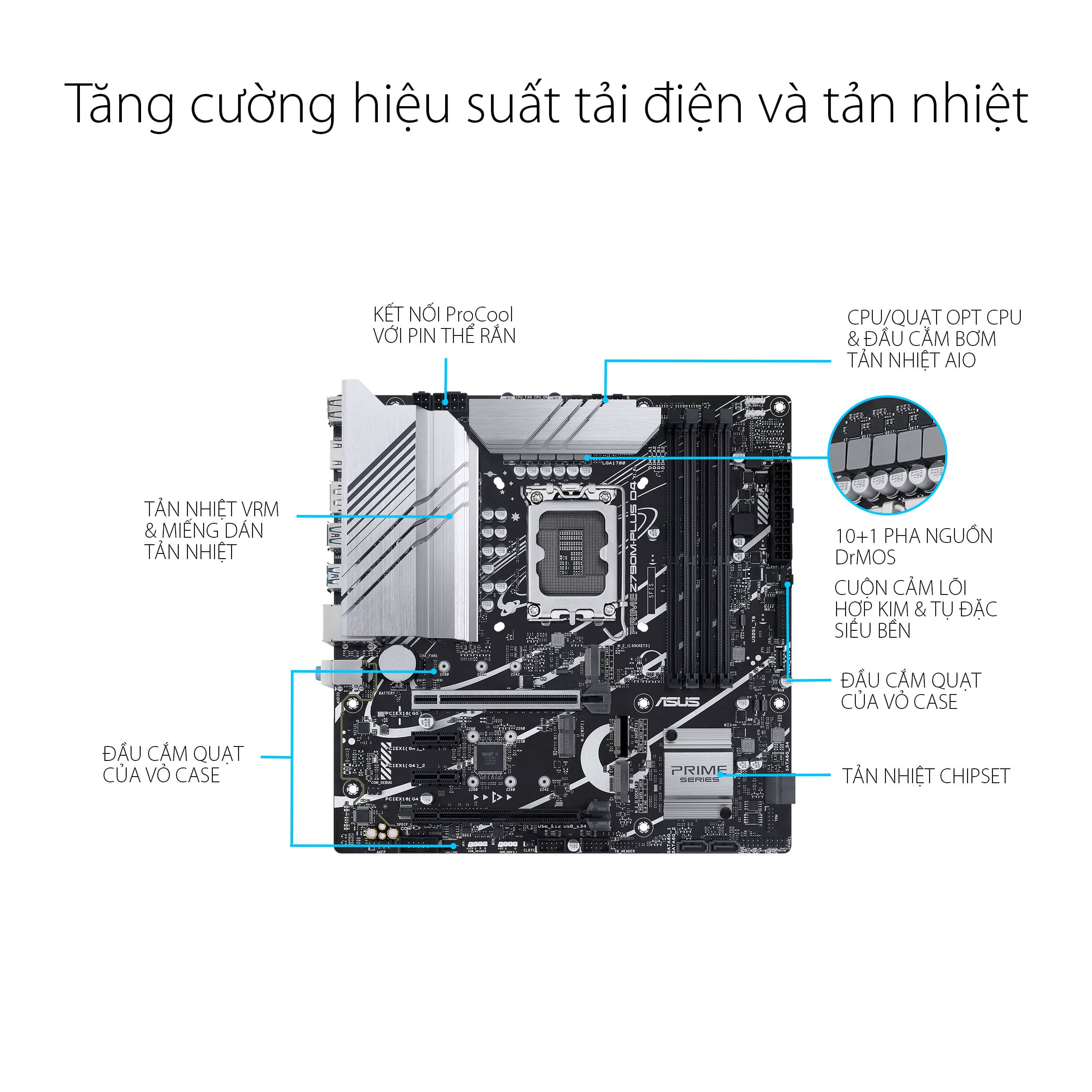

Fan and cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 3 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 1 x 8-pin + 12V Power connector |
| 1 x 4-pin + 12V Power connector |
| Storage related |
| 3 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |

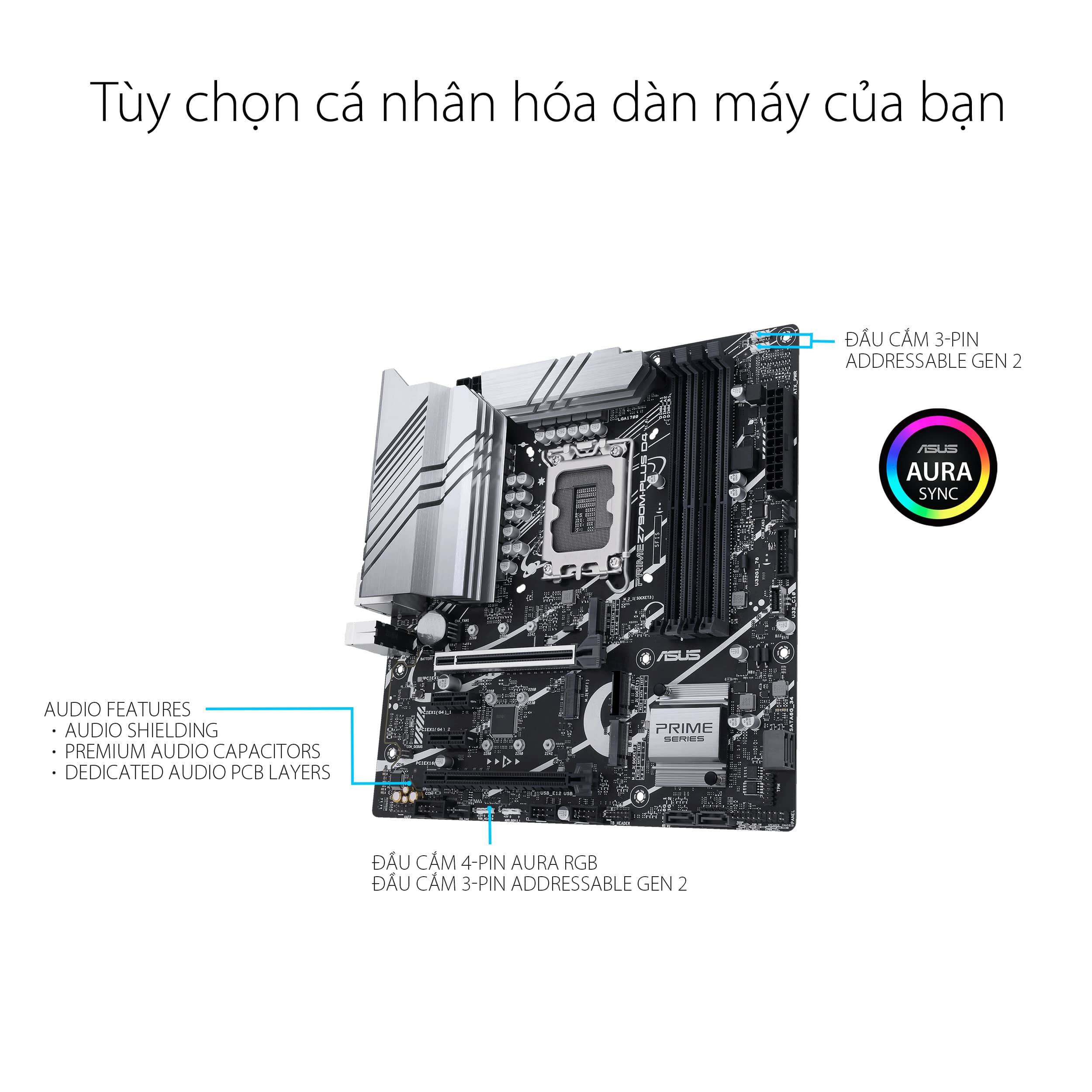

| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 1 x Aura RGB header |
| 1 x Clear CMOS header |
| 1 x COM Port header |
| 1 x Front Panel Audio header (AAFP) |
| 1 x M.2 slot (Key E) |
| 1 x S/PDIF Out header |
| 1 x SPI TPM header (14-1pin) |
| 1 x 20-3 pin System Panel header with Chassis intrude function |
| 1 x Thunderbolt™ (USB4®) header |

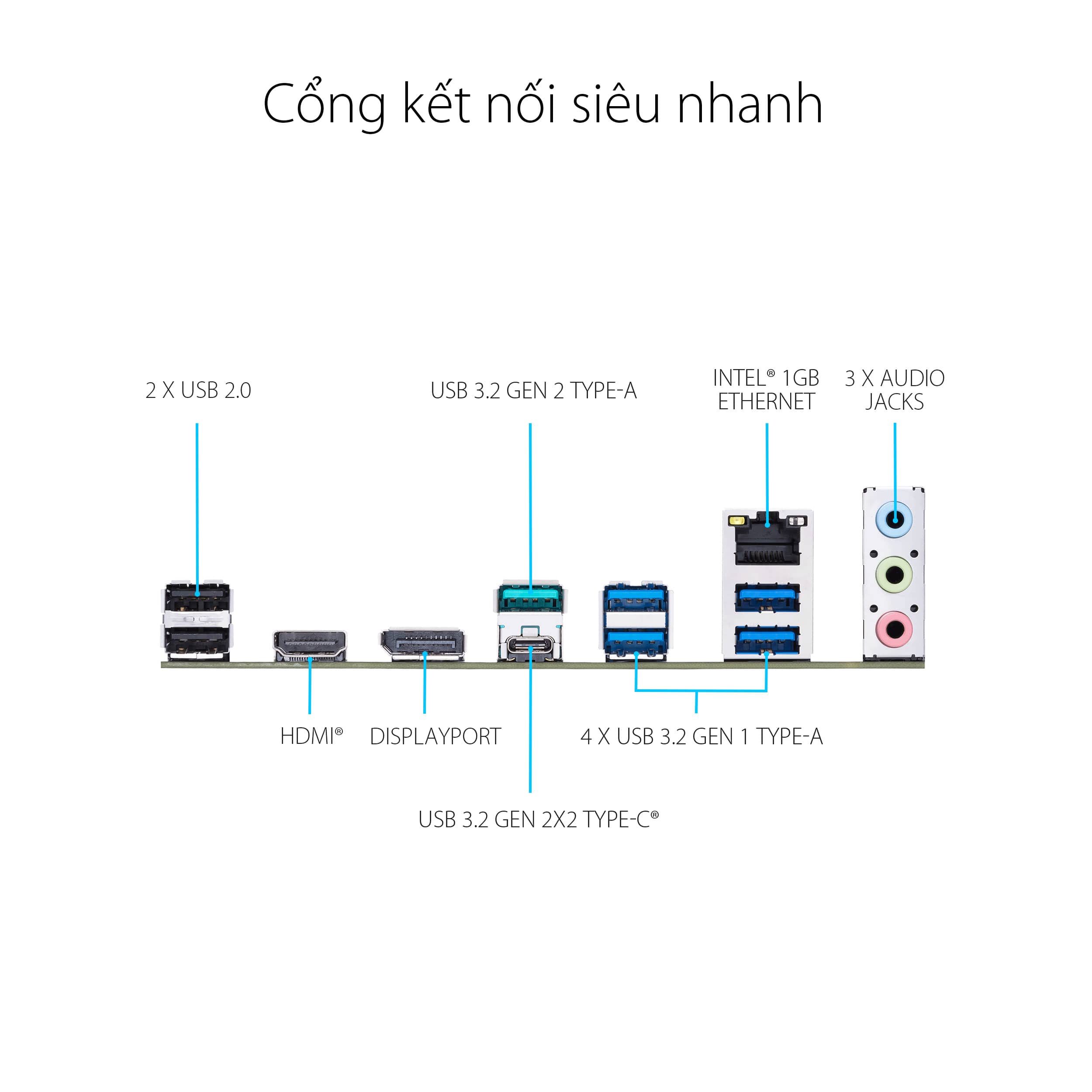

| Cổng kết nối (Back Panel) |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) |
| 1 x DisplayPort |
| 1 x HDMI® port |
| 1 x Intel® 1Gb Ethernet port |
| 3 x Audio jacks |
| LAN / Wireless |
M.2 slot only (Key E, CNVi & PCIe)* |
| *Wi-Fi module is sold separately. |
| 1 x Intel® 1Gb Ethernet |
| ASUS LANGuard |

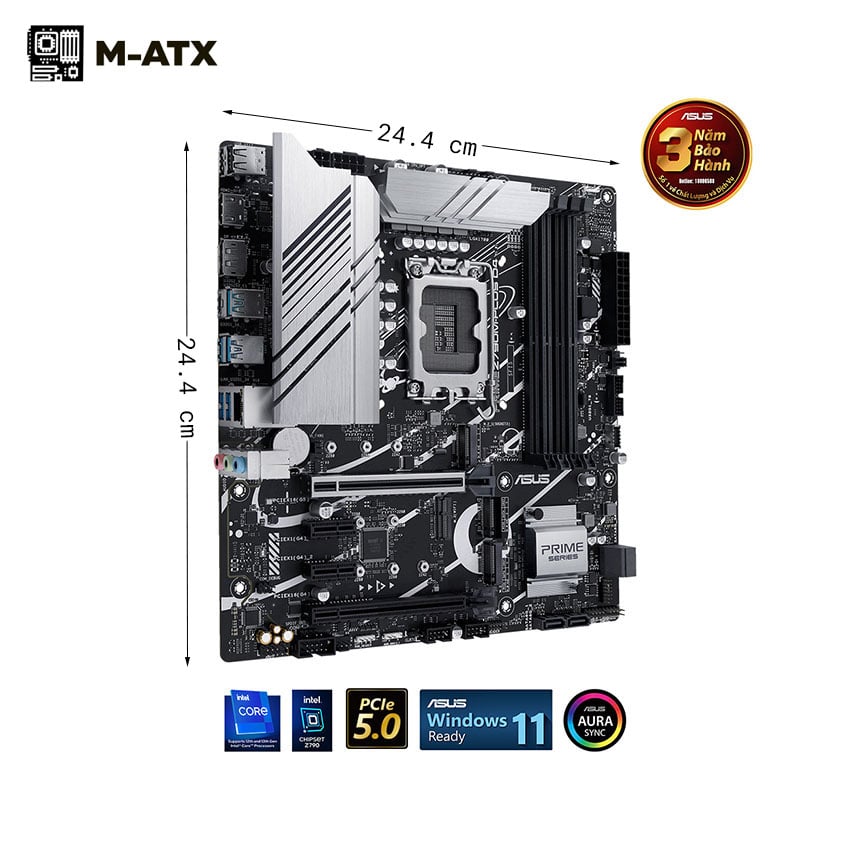

| Kích cỡ |
mATX Form Factor |
| 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
