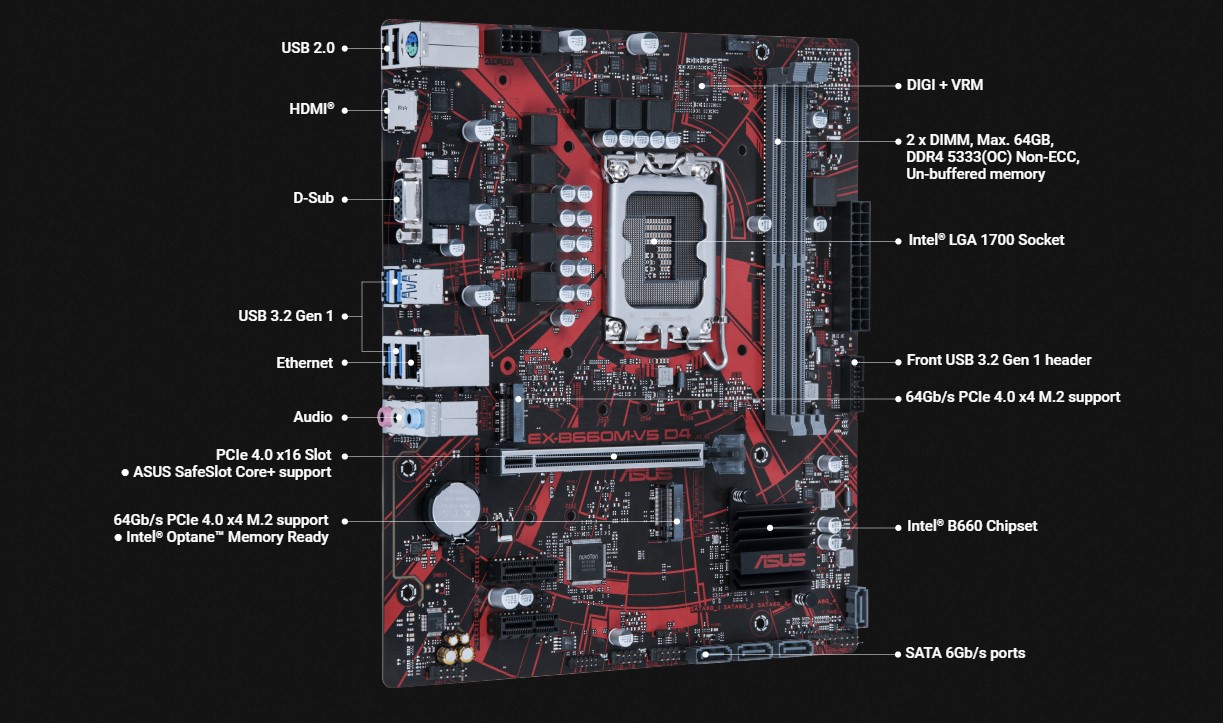

| CPU |
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| * Refer to www.asus.com for CPU support list. |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset |
Intel® B660 Chipset |
|
| Memory |
2 x DIMM, Max. 64GB, DDR4 |
| 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture |
| Supports Intel® Extreme Memory Profile (XMP) |
| *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. |
| Graphics |
1 x D-Sub port |
| 1 x HDMI® port** |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| ** Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots |
Intel® 12th Gen Processors |
| 1 x PCIe 4.0/3.0 x16 slot |
| Intel® B660 Chipset |
| 2 x PCIe 3.0 x1 slots |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® 12th Gen Processors |
| M.2_1 slot (Key M), type 2242/2260/2280 |
| - Intel® 12th Gen processors support PCIe 4.0 x4 mode. |
| Intel® B660 Chipset** |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| 4 x SATA 6Gb/s ports |
| * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
| Ethernet |
1 x Realtek 1Gb Ethernet |
|
| USB |
Rear USB (Total 6 ports) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) |
| Front USB (Total 6 ports) |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| - Supports up to 24-Bit/192 kHz playback |
| Audio Features |
| - Premium audio capacitors |
| - Audio Shielding |
| - Dedicated audio PCB layers |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports |
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) |
| 1 x D-Sub port |
| 1 x HDMI® port |
| 3 x Audio jacks |
| 1 x Realtek 1Gb Ethernet port |
| 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors |
Fan and cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin Chassis Fan header |
| Power related |
| 1 x 24-pin Main Power connector |
| 1 x 8-pin +12V Power connector |
| Storage related |
| 2x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Miscellaneous |
| 1 x Clear CMOS header |
| 1 x Front Panel Audio header (AAFP) |
| 1 x Speaker header |
| 1 x 10-1 pin System Panel header |
| Special Features |
ASUS 5X PROTECTION III |
| - DIGI+ VRM |
| - LANGuard |
| - Overvoltage Protection |

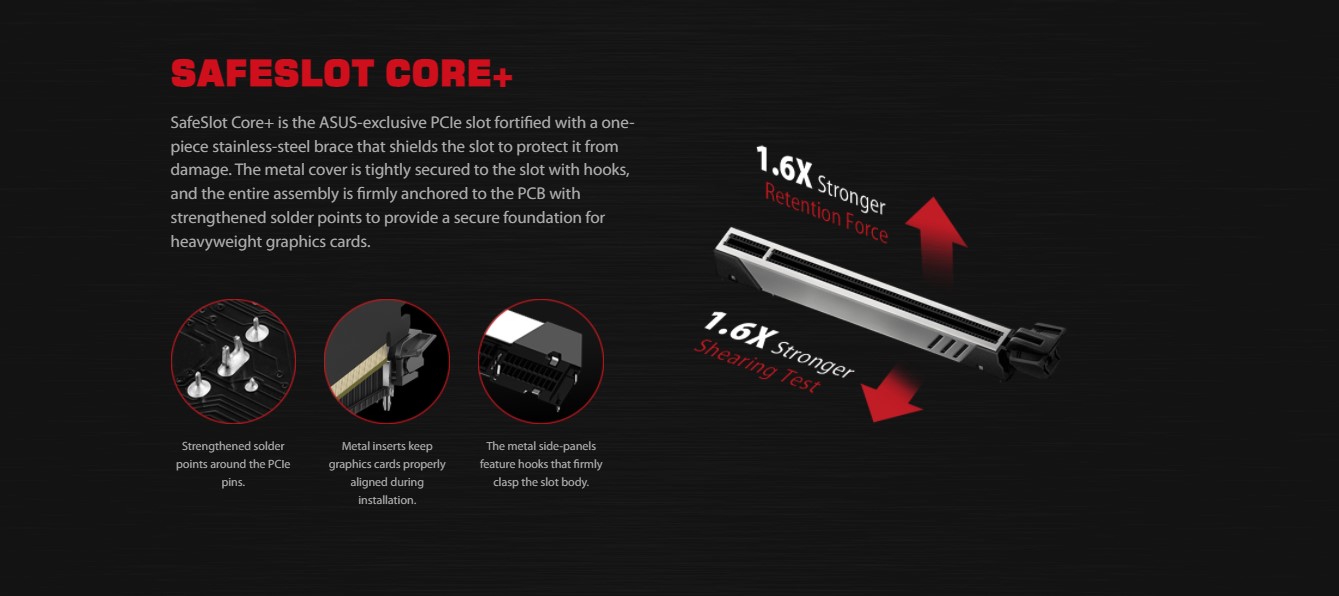

| - SafeSlot Core+ |
| - Stainless-Steel Back I/O |
| ASUS Q-Design |
| - Q-DIMM |
| - Q-Slot |
| ASUS EZ DIY |
| - ProCool |
| Non-stop Action |
| - Lightning Boot |
| Non-stop Challenger |
| - ASUS iCafe labs certified |
| Non-stop Durability |
| - Luminous anti-moisture coating |
| - USBGuard |
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
|
| Manageability |
WOL by PME, PXE |
|
| Accessories |
Cables |
| 2 x SATA 6Gb/s cables |
| Miscellaneous |
| 1 x I/O Shield |
| 2 x M.2 Anchors |
| Installation Media |
| 1 x Support DVD |
| Documentation |
| 1 x User guide |
| Operating System |
Windows® 10 64-bit, Windows® 11 64-bit |
|
| Form Factor |
mATX Form Factor |
| 9.6 inch x 8.3 inch(24.4cm x 21.1cm) |
