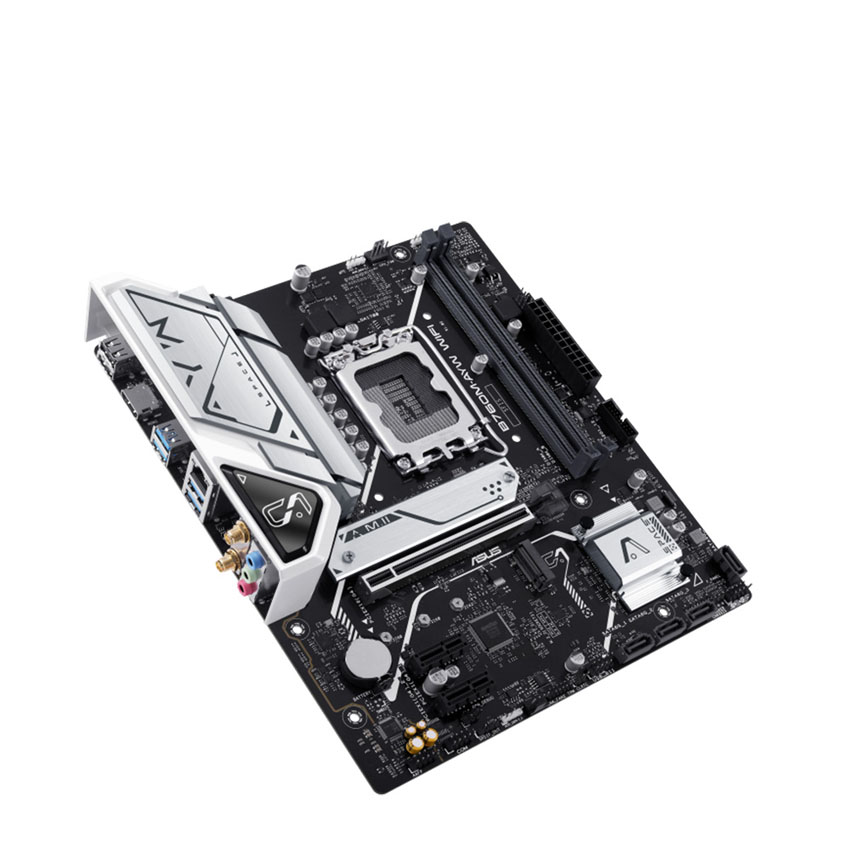

Mainboard Asus B760M-AYW WIFI - Likenew (Box, không râu Wifi)

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

B760M-AYW WIFI

CPU hỗ trợ

Intel

Chipset

B760

RAM hỗ trợ

2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)

6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture

Khe cắm mở rộng

Intel^® Core™ Processors (14^th & 13^th & 12^th Gen)
1 x PCIe 4.0 x16 slot
Intel^® B760 Chipset
2 x PCIe 4.0 x1 slots

Ổ cứng hỗ trợ

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® Core™ Processors (14^th & 13^th & 12^th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

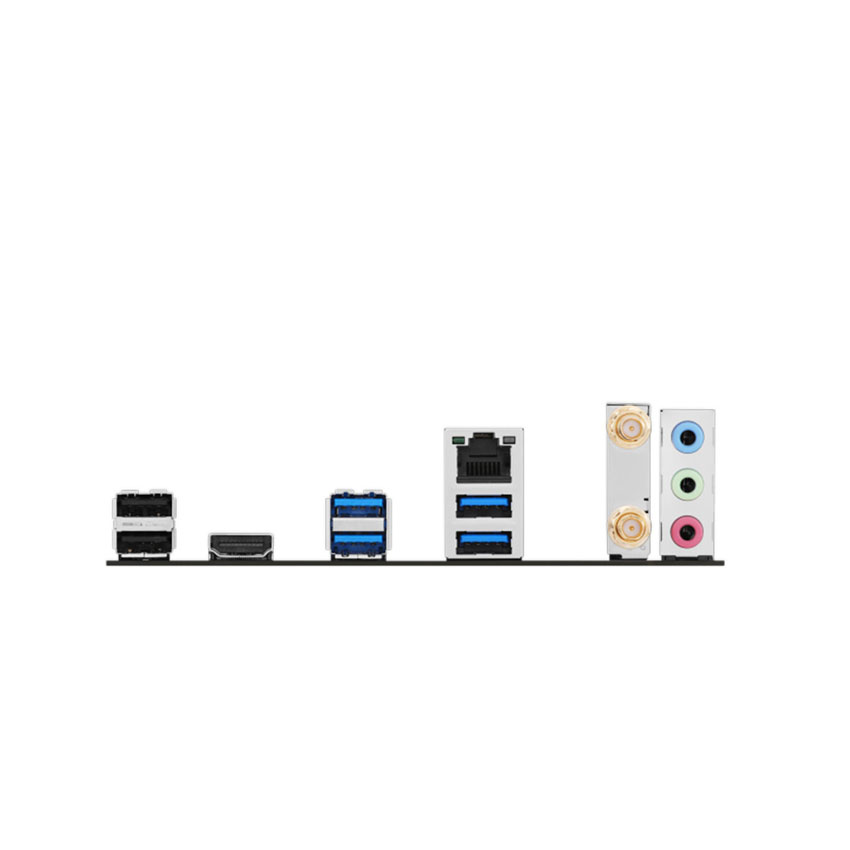

Cổng kết nối (Back Panel)

4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI^TM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

LAN / Wireless

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Wi-Fi 6
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth^® v5.3*

Kích cỡ

mATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)
