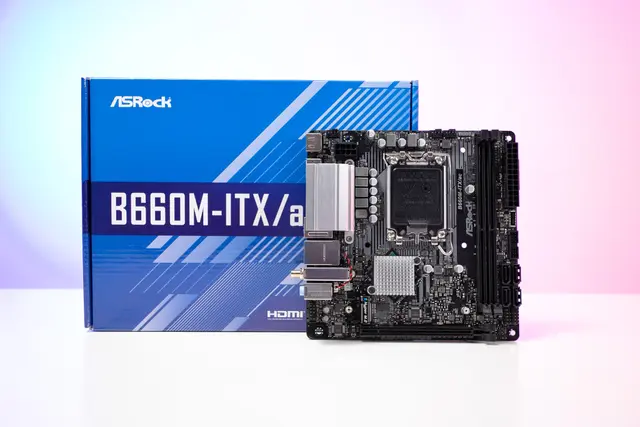

ASROCK B660M-ITX/AC là dòng bo mạch chủ chipset B660 kích thước iTX tầm trung, phù hợp với các vi xử lý Pentium, Celeron,i3 & i5 hoặc i7 non K thế hệ Alder Lake.
ASROCK B660M-ITX/AC phù hợp với các bộ máy tính phổ thông và tầm trung có kích thước nhỏ gọn, cho nhu cầu chơi game và làm việc văn phòng cũng như Multimedia cơ bản.
Sản phẩm | Bo mạch chủ |
Tên Hãng | Asrock |
Model | B660M-ITX/ac DDR4 |
CPU hỗ trợ | Intel |
Chipset | B660 |
RAM hỗ trợ | - Dual Channel DDR4 Memory Technology |
- 2 x DDR4 DIMM Slots | |
- Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)* | |
- Supports ECC UDIMM memory modules (operate in non-ECC mode) | |
- Max. capacity of system memory: 64GB | |
- Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
Khe cắm mở rộng | - 1 x PCIe Gen4x16 Slot* |
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) | |
Ổ cứng hỗ trợ | - 4 x SATA3 6.0 Gb/s Connectors* |

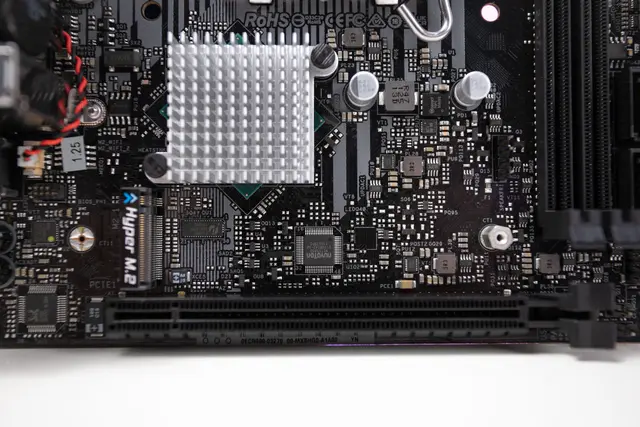

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes** | |
Cổng kết nối (Internal) | - 1 x Addressable LED Header* |
- 1 x CPU Fan Connector (4-pin)** | |
- 1 x Chassis Fan Connector (4-pin)*** | |
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
- 1 x 24 pin ATX Power Connector | |
- 1 x 8 pin 12V Power Connector | |
- 1 x Front Panel Audio Connector | |
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) | |
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) | |

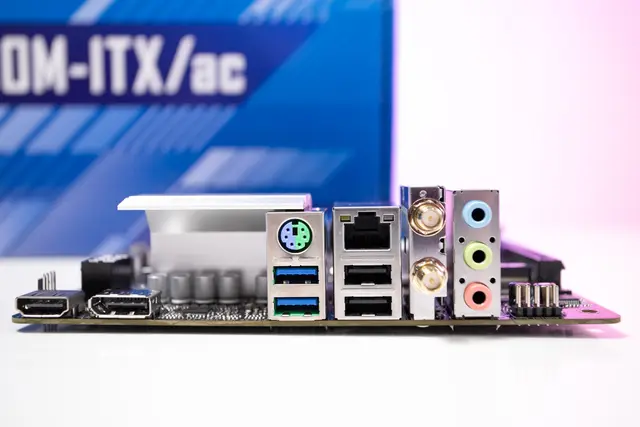

Cổng kết nối (Back Panel) | - 2 x Antenna Ports |
- 1 x PS/2 Mouse/Keyboard Port | |
- 1 x HDMI Port | |
- 1 x DisplayPort 1.4 | |
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
- 2 x USB 2.0 Ports (Supports ESD Protection) | |
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
- HD Audio Jacks: Line in / Front Speaker / Microphone | |
LAN / Wireless | - Gigabit LAN 10/100/1000 Mb/s |
- Giga PHY Intel® I219V | |
- Supports Wake-On-LAN | |
- Supports Lightning/ESD Protection | |
- Supports Energy Efficient Ethernet 802.3az | |
- Supports UEFI PXE | |
Kích cỡ | - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm |
- Solid Capacitor design |
