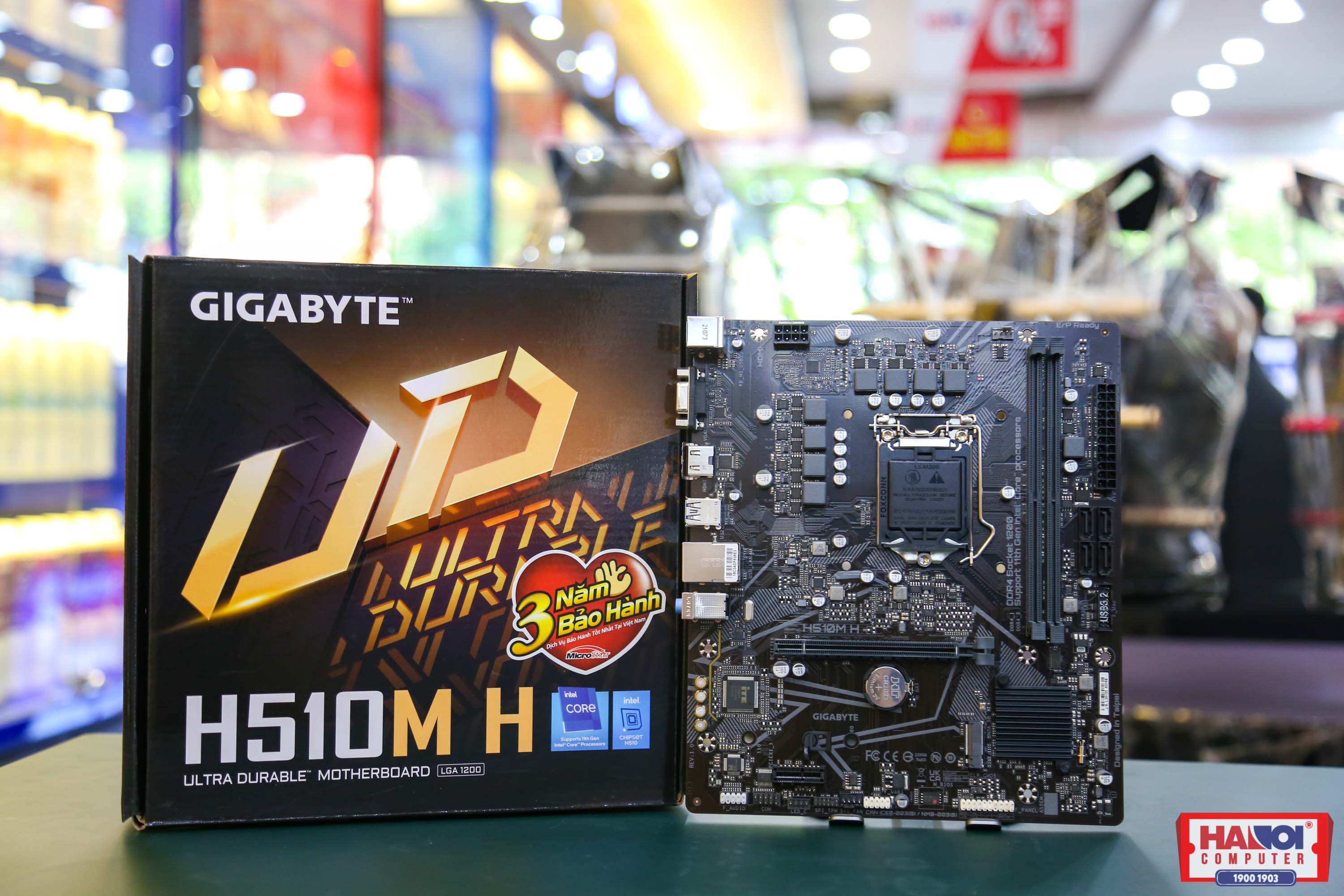

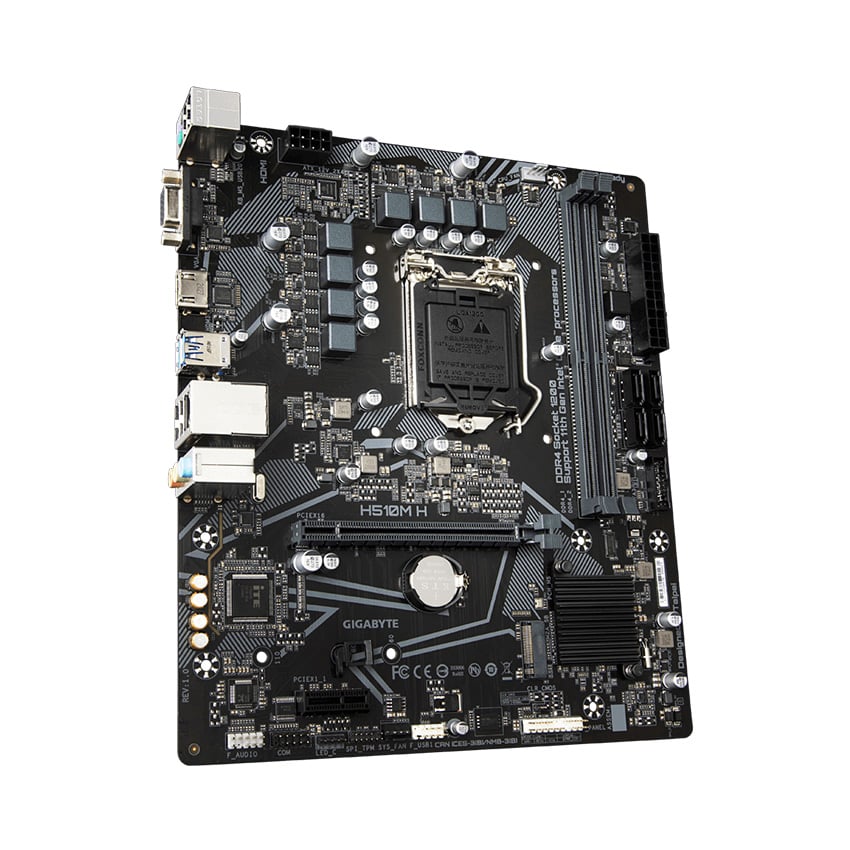

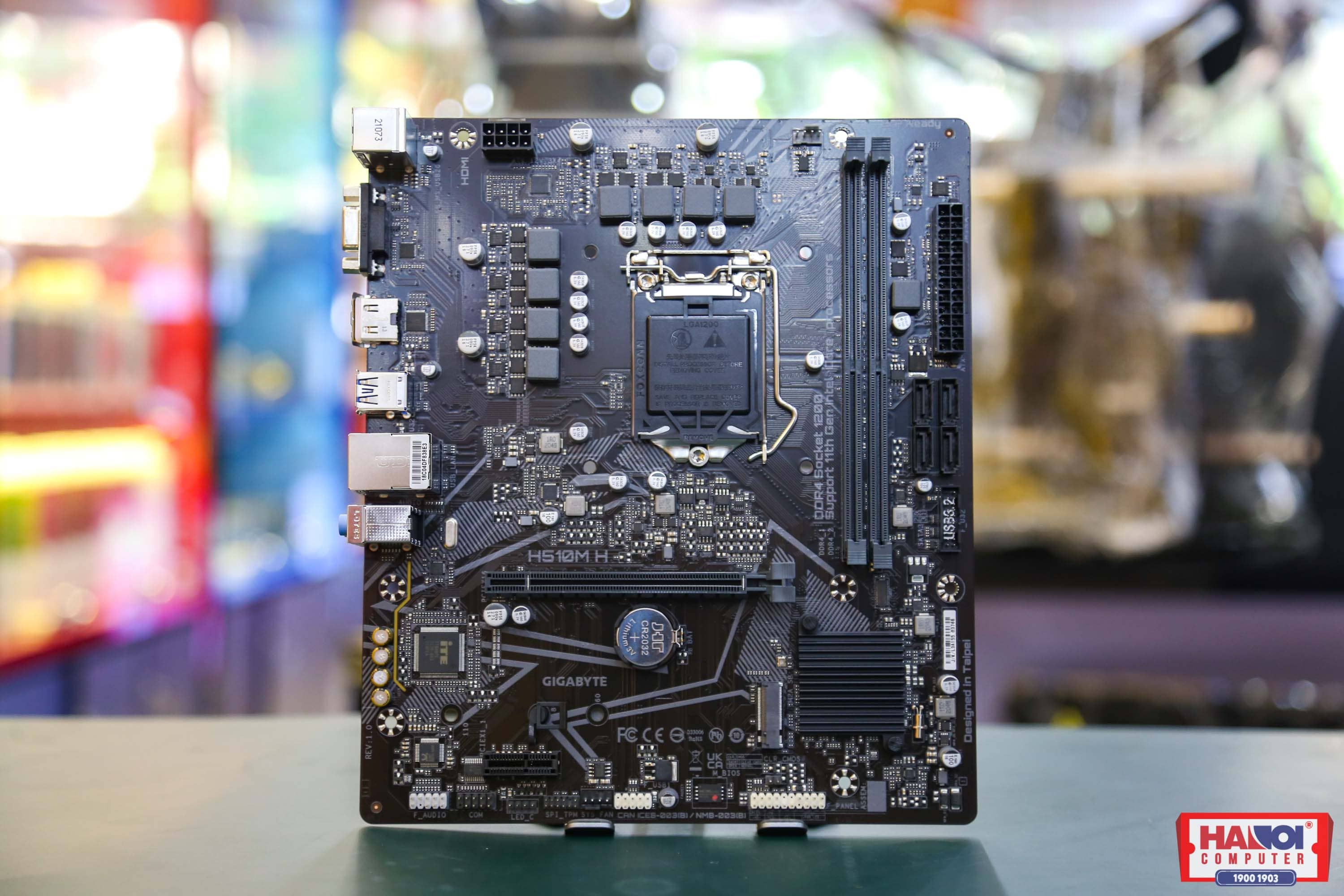

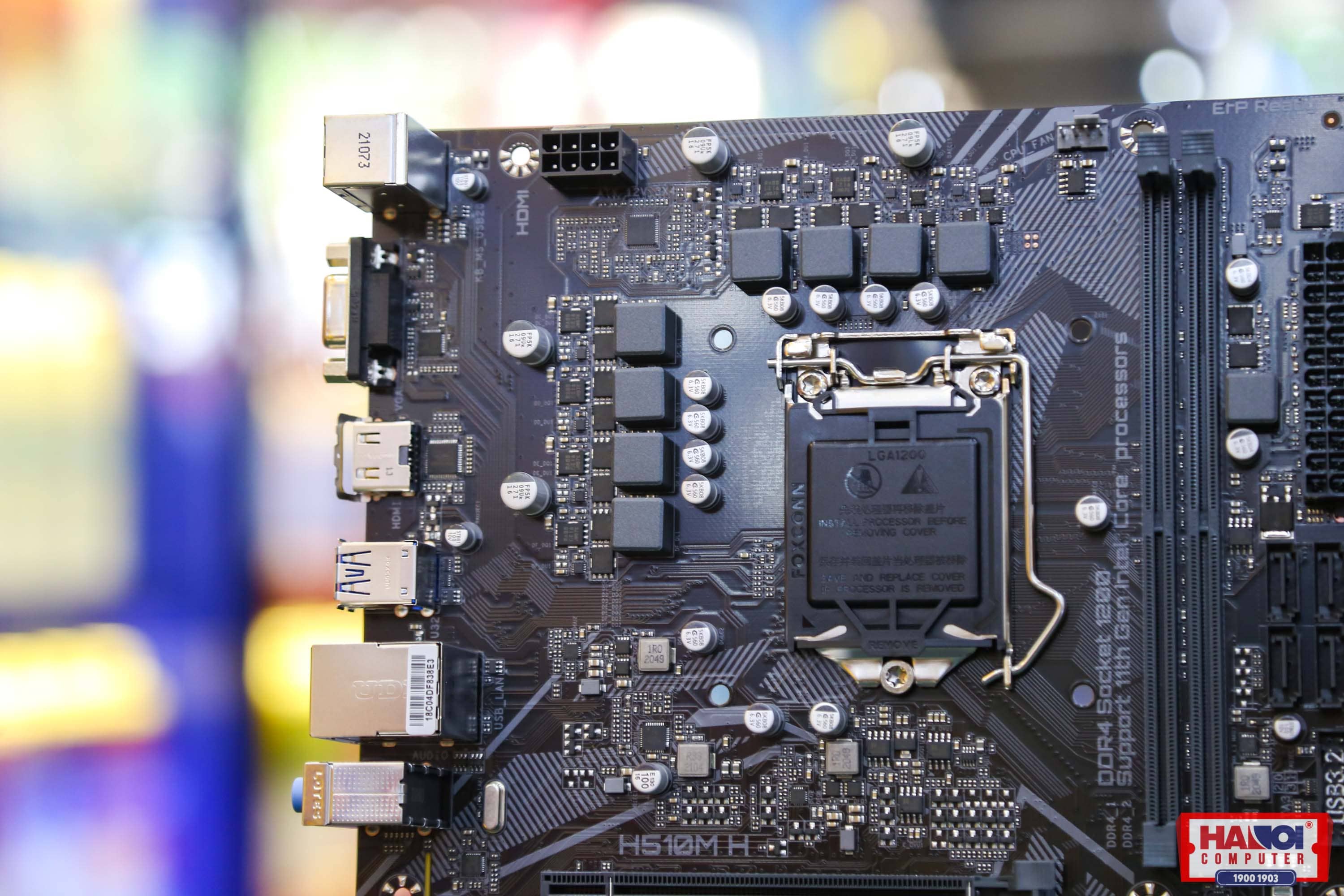

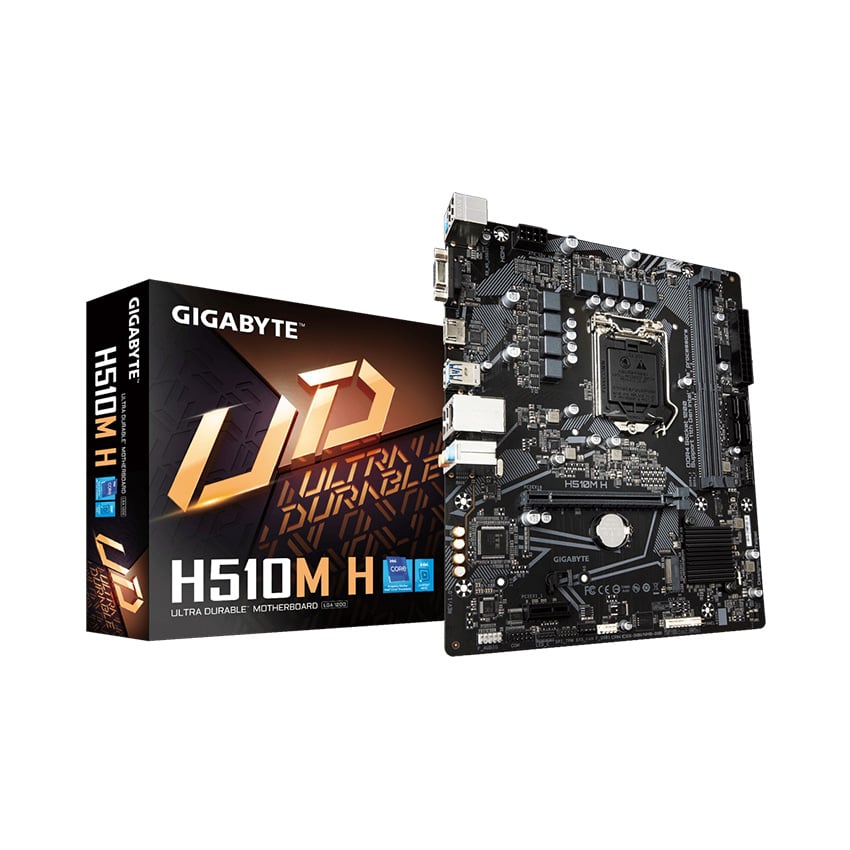

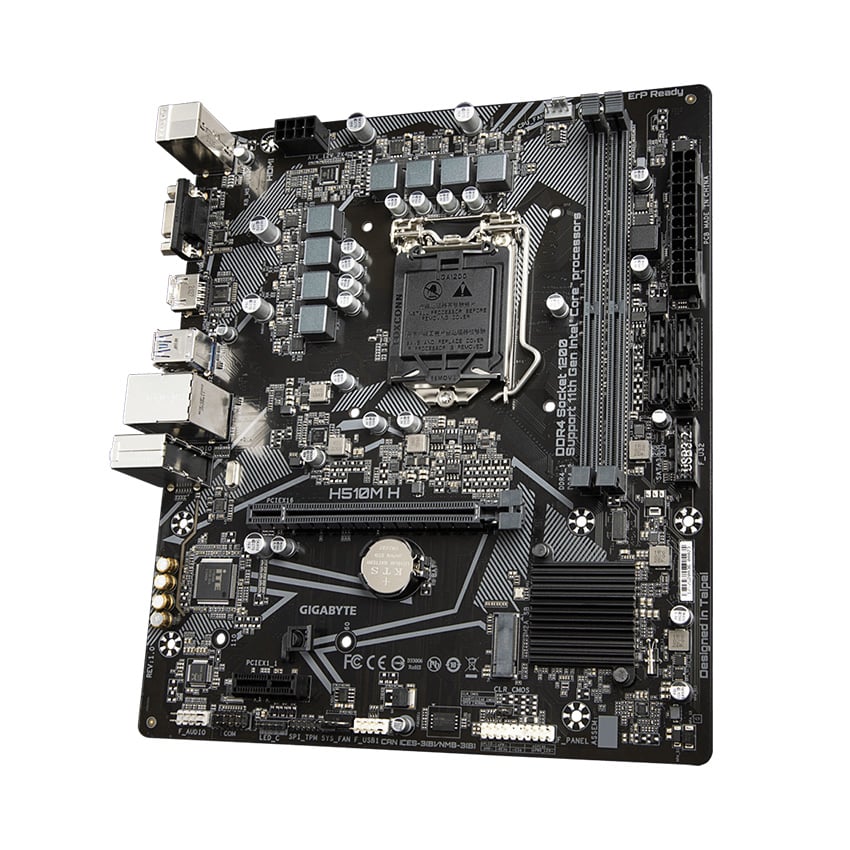

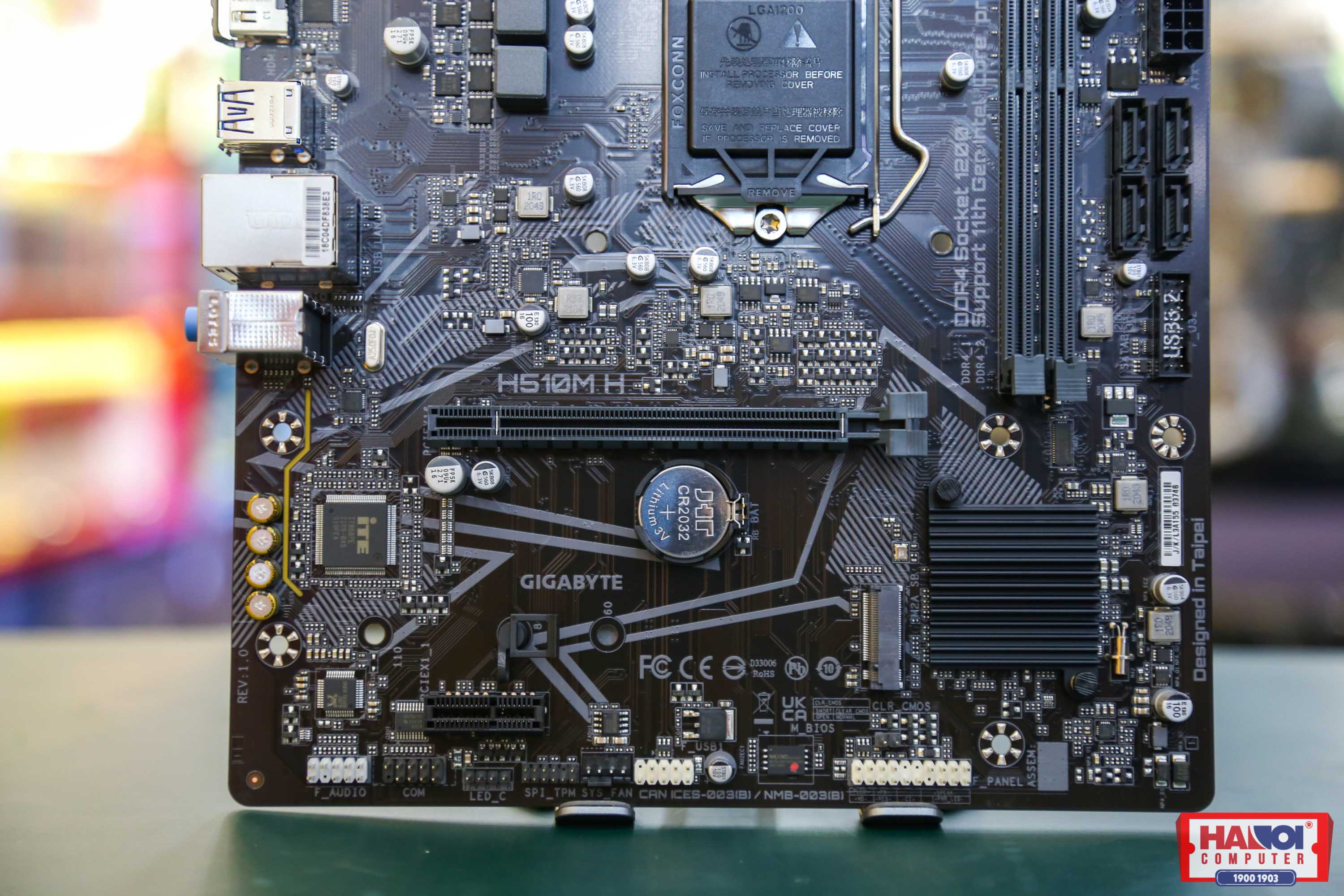

Mainboard Gigabyte H510M-H

CPU hỗ trợ

LGA1200 package:

- 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5

 processors

- 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5

 processors / Intel® Core™ i3 processors/ Intel® Pentium® process

Chipset

H510

Bộ nhớ trong

- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Card đồ họa tích hợp

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

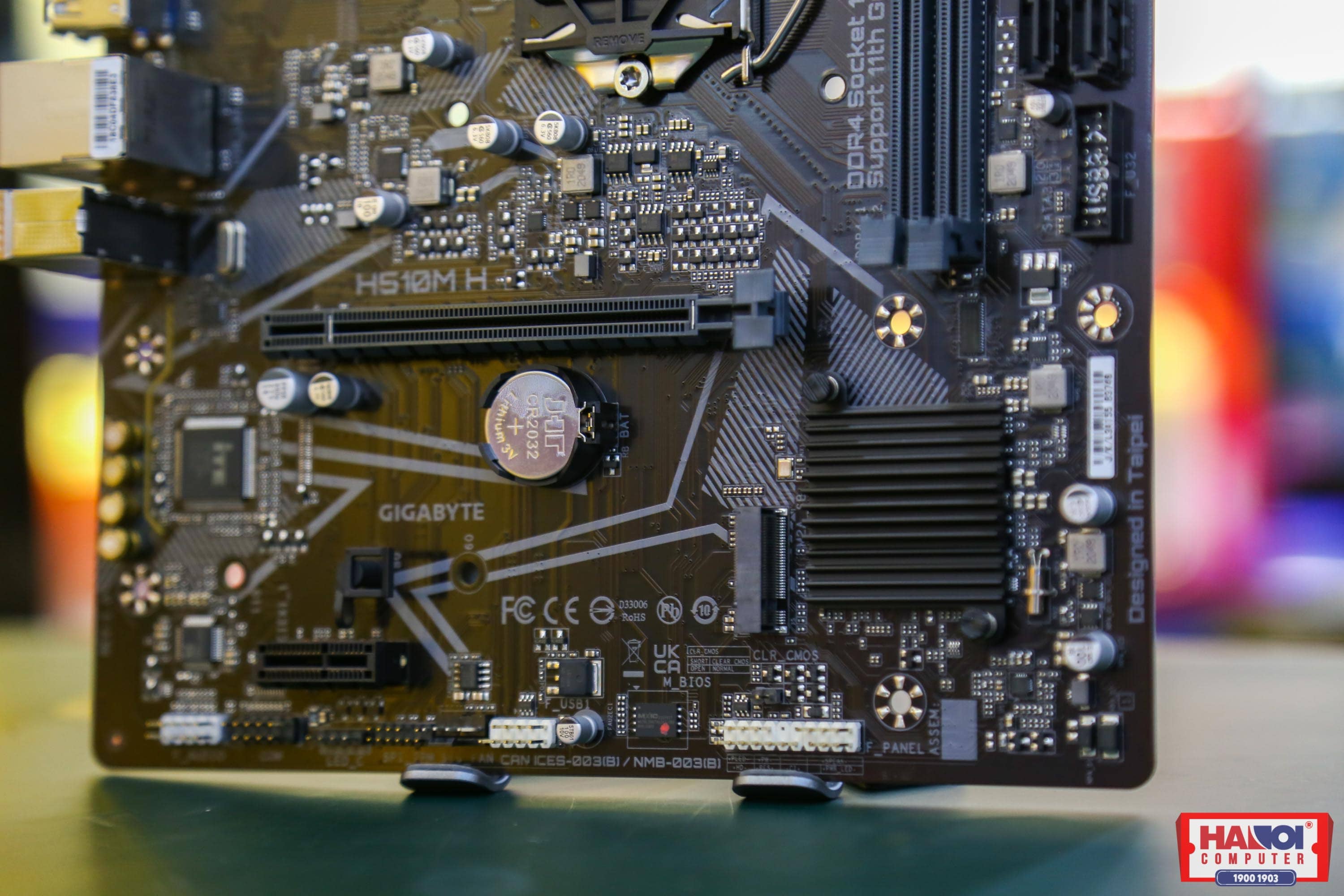

Khe mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16).

1 x PCI Express x1 slot (PCIEX1_1)

Chuẩn lưu trữ

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors

Mạng

Âm Thanh

- Realtek® ALC1220-VB codec

- Support for DTS:X® Ultra

- High Definition Audio

- 2/4/5.1/7.1-channel

- Support for S/PDIF Out

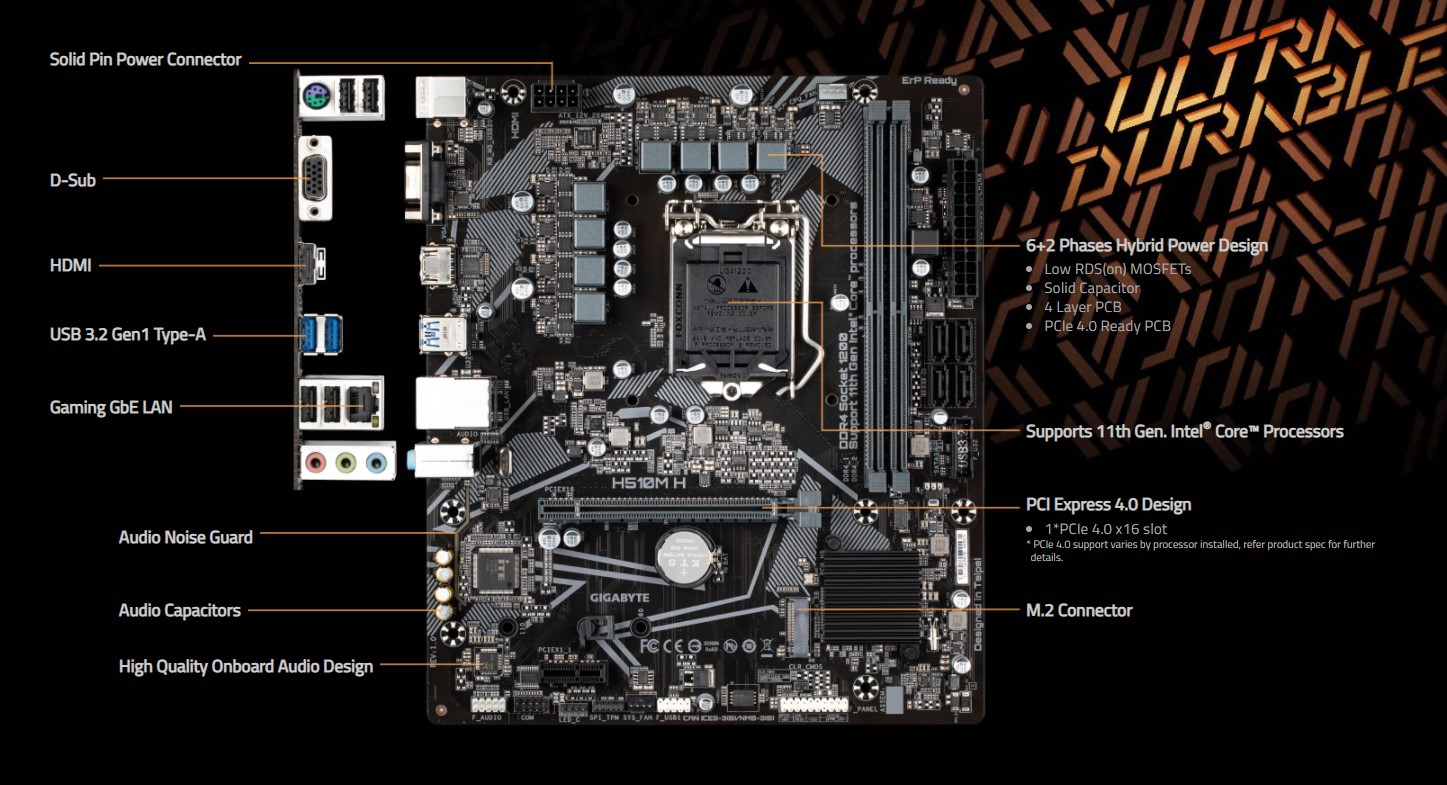

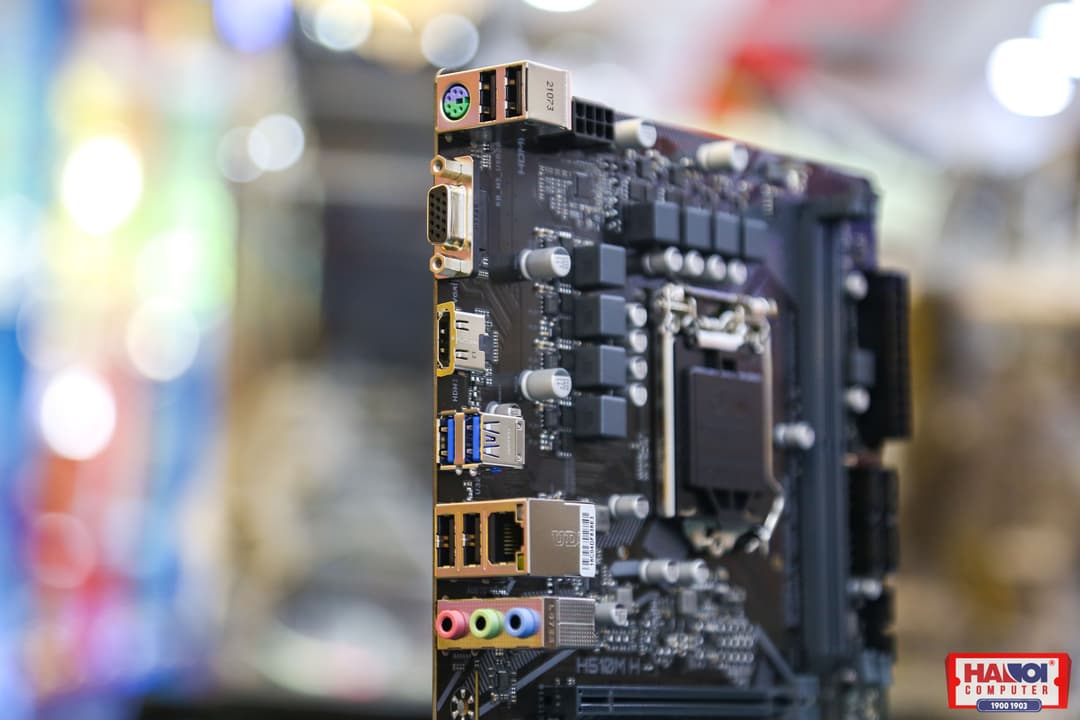

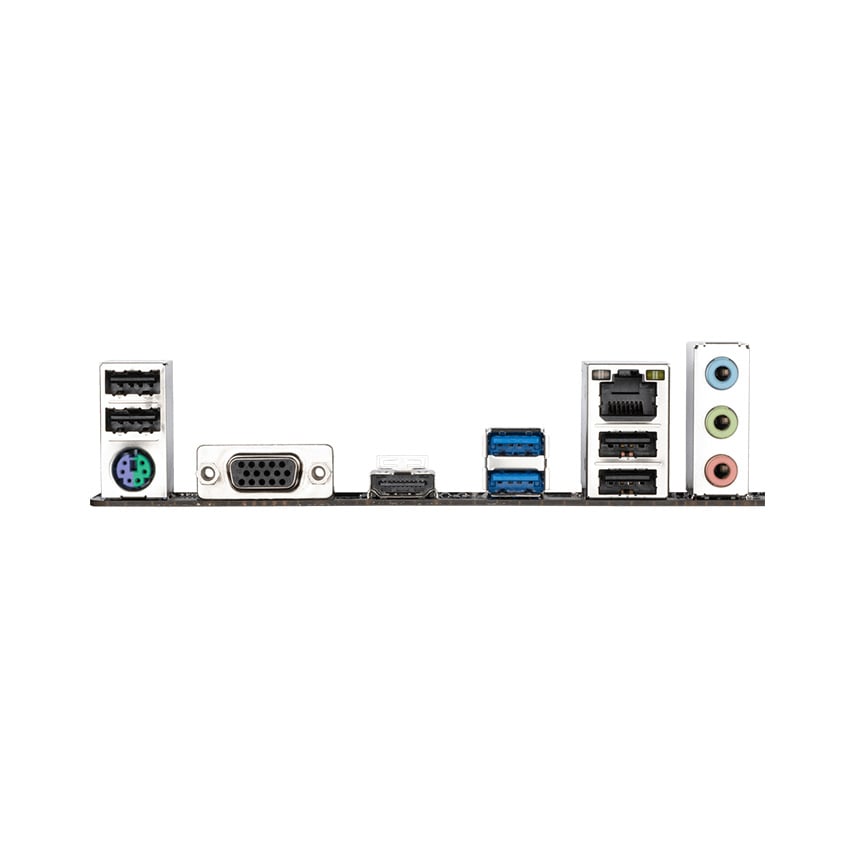

Kết nối ngoài

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x HDMI port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jac

Kết nối trong

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

Kích thước

Micro ATX Form Factor; 24.4cm x 21.0cm
