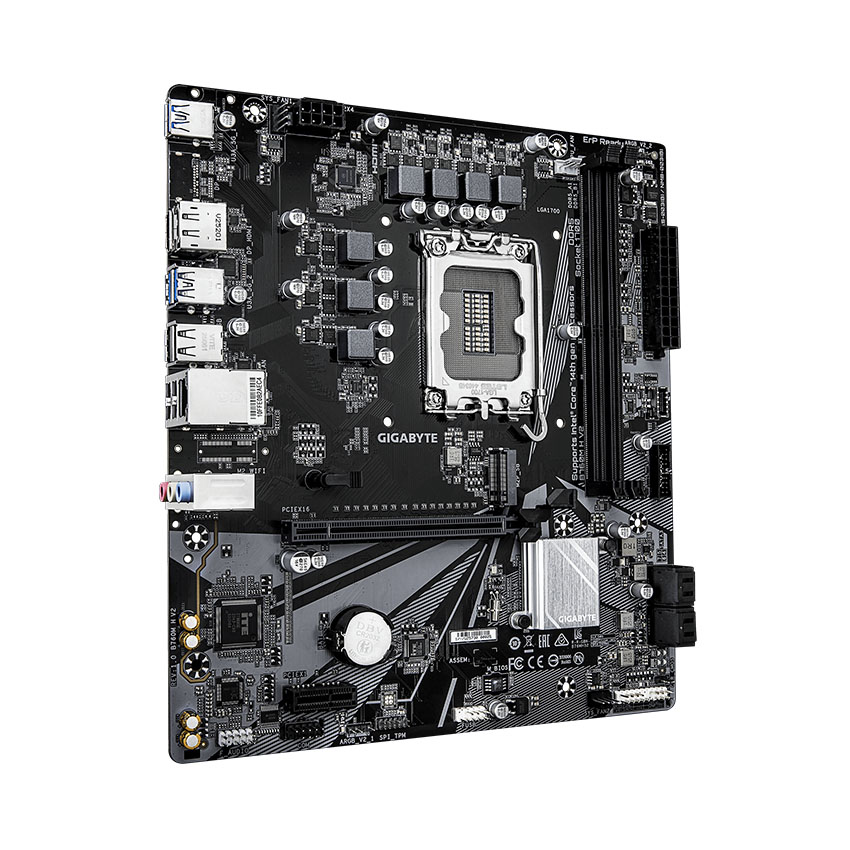

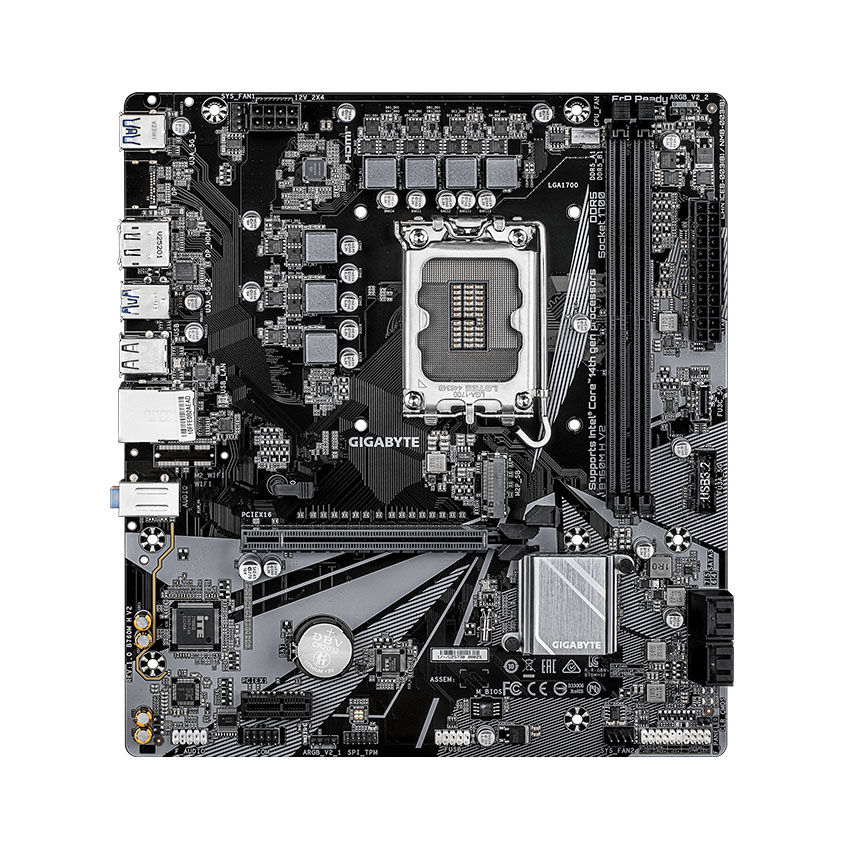

Mainboard Gigabyte B760M H V2 DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

CPU hỗ trợ

Intel

Chipset

B760

RAM hỗ trợ

Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

• CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  Chipset:
  - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Ổ cứng hỗ trợ

• Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
  - 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal)

• 1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  2 x addressable RGB Gen2 LED strip headers
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x Clear CMOS jumper

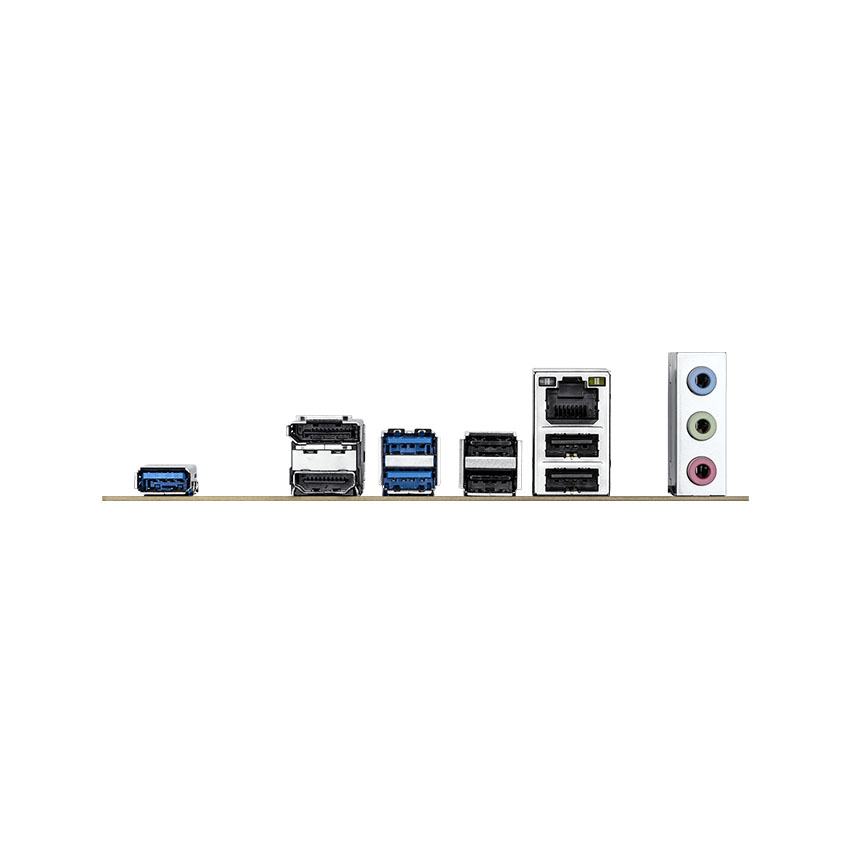

Cổng kết nối (Back Panel)

1 x DisplayPort (Note)
1 x HDMI port (Note)
3 x USB 3.2 Gen 1 port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

LAN / Wireless

• Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Kích cỡ

• Micro ATX Form Factor; 24.4cm x 22.0cm
