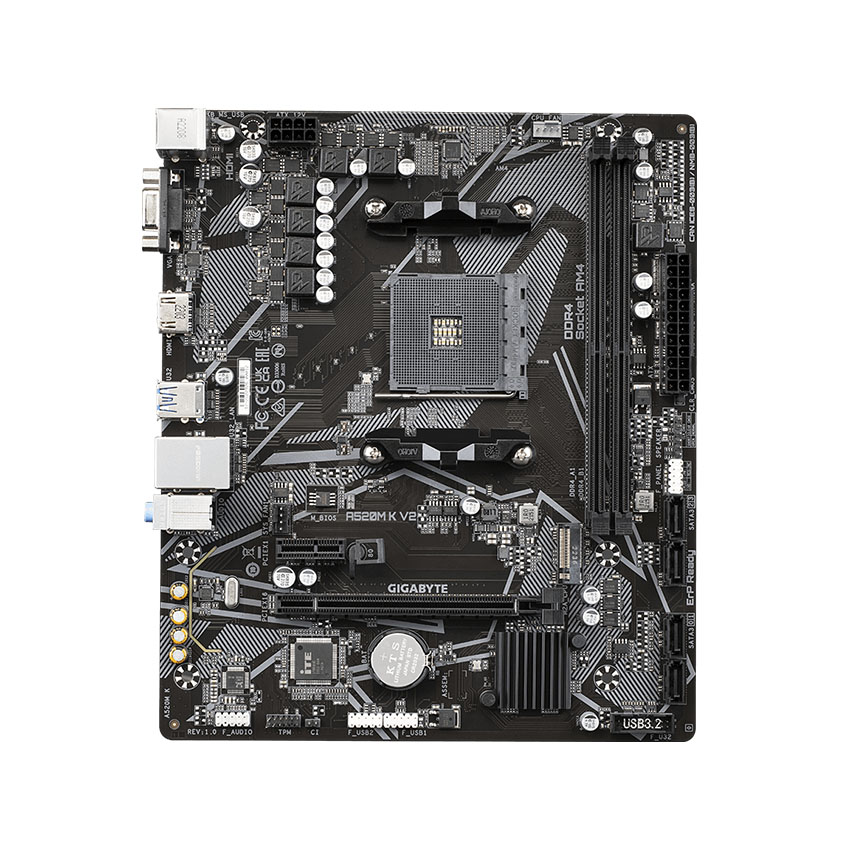

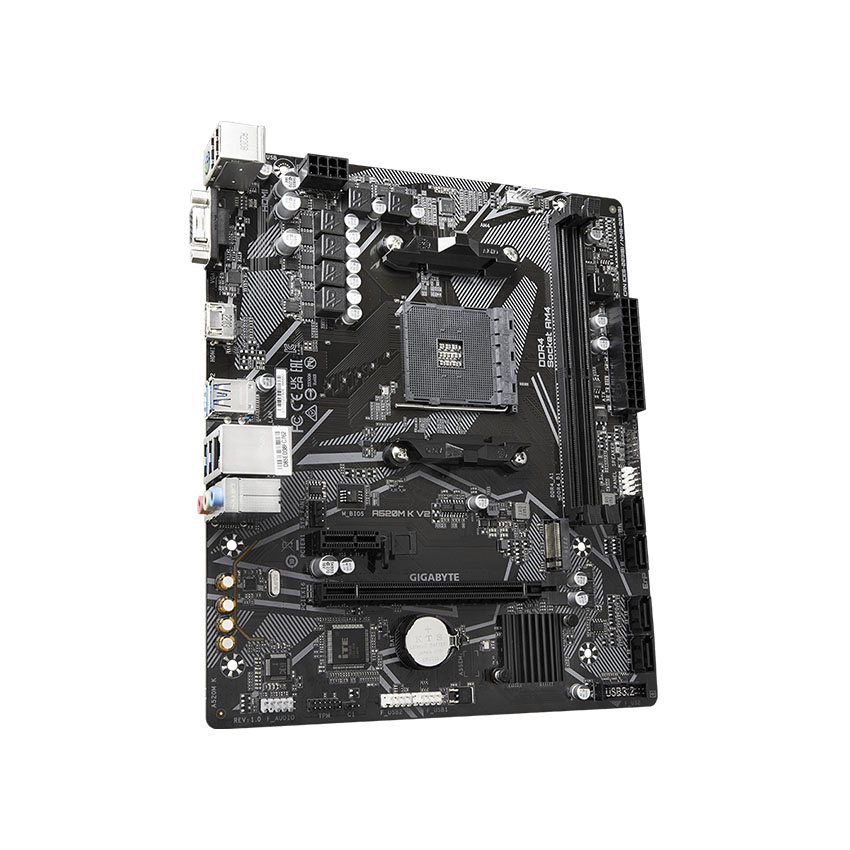

Mainboard Gigabyte A520M-K V2

Tên Hãng

GIGABYTE

Model

CPU hỗ trợ

AMD

Chipset

AMD A520

RAM hỗ trợ

1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
2. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Ổ cứng hỗ trợ

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:

1. 4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x M.2 Socket 3 connector
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.2 Gen 1 header
10. 2 x USB 2.0/1.1 headers
11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
12. 1 x speaker header
13. 1 x Clear CMOS jumper
14. 1 x chassis intrusion header

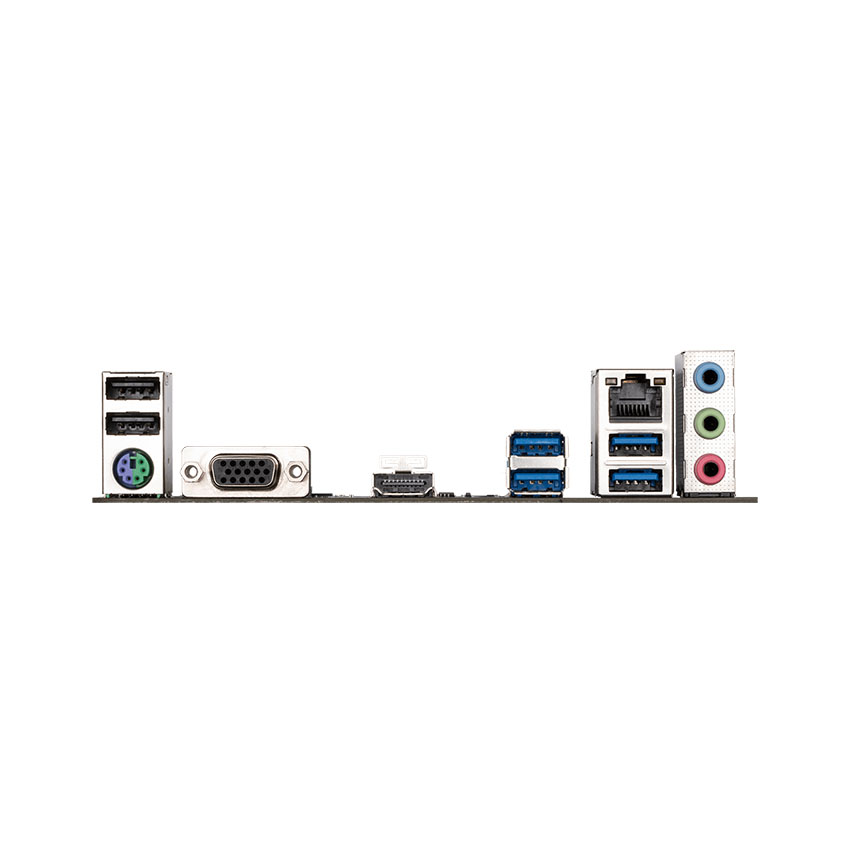

Cổng kết nối (Back Panel)

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x HDMI port
4. 4 x USB 3.2 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks

LAN / Wireless

1. Realtek^® GbE LAN chip (1 Gbps/100 Mbps)

Kích cỡ

1. Micro ATX Form Factor; 23.3cm x 19.8cm
