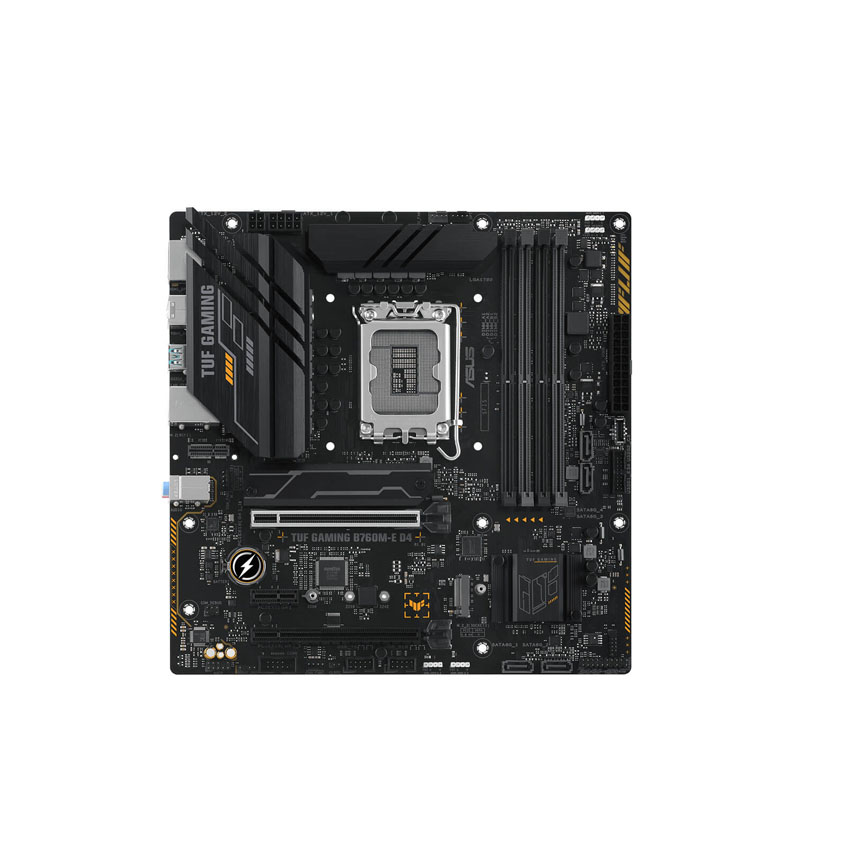

Mainboard ASUS TUF GAMING B760M-E DDR4 - Likenew (Box)

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

TUF Gaming B760M-E DDR4

CPU hỗ trợ

Intel

Chipset

B760

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)
3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel^® 13^th & 12^th Gen Processors
1 x PCIe 4.0 x16 slot
Intel^® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)

Ổ cứng hỗ trợ

Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
Intel^® 13^th & 12^th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header

Cổng kết nối (Back Panel)

2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek2.5Gb Ethernet port
3 x Audio jacks
1 x Vertical M.2 slot (Key E)
1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Kích cỡ

mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
