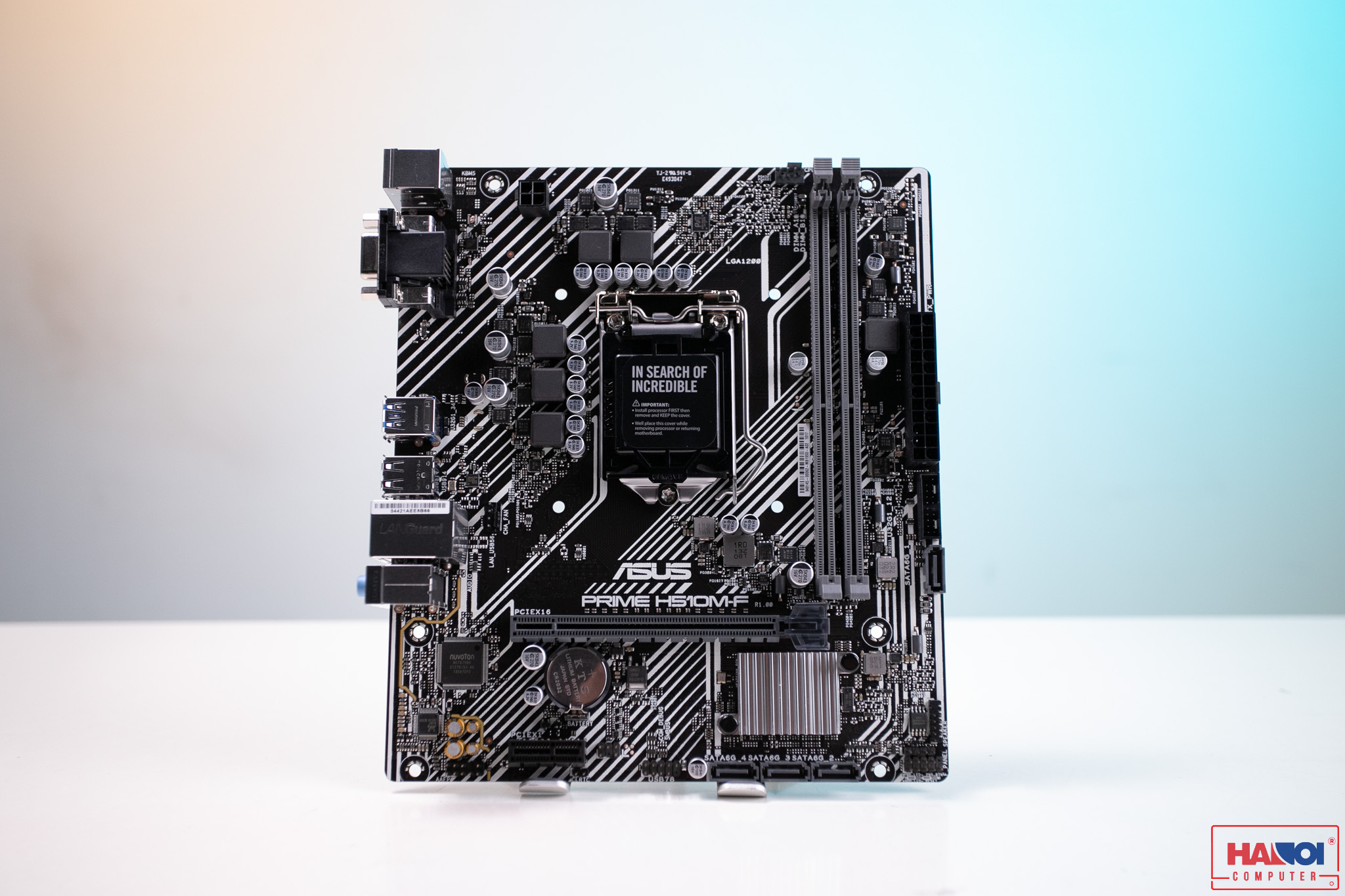

Mainboard ASUS PRIME H510M-F là bo mạch chủ tầm trung của ASUS phù hợp với các CPU Intel Celeron, Core i3, Core i5 non K.
Mainboard ASUS PRIME H510M-F có thiết kế đơn giản với tông màu đen chủ đạo, các linh kiện sắp xếp gọn gàng
Sản phẩm | Bo mạch chủ |
Tên Hãng | ASUS |
Model | PRIME H510M-F |
CPU hỗ trợ | Intel |
Chipset | H510 |
RAM hỗ trợ | 2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* |
Khe cắm mở rộng | Intel® 11th & 10th Gen Processors |
1 x PCIe 4.0/3.0 x16 slot | |
- Intel® 11th Gen processors support PCIe 4.0 x16 mode | |
- Intel® 10th Gen processors support PCIe 3.0 x16 mode | |
Intel® H510 Chipset | |
1 x PCIe 3.0 x1 slot | |
Ổ cứng hỗ trợ | Total supports 4 x SATA 6Gb/s ports |
Intel® H510 Chipset | |
4 x SATA 6Gb/s ports | |
Cổng kết nối (Internal) | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin Chassis Fan header | |
Power related | |
1 x 24-pin Main Power connector | |
1 x 4-pin +12V Power connector | |
Storage related | |
4 x SATA 6Gb/s ports | |
USB | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
1 x USB 2.0 header supports additional 2 USB 2.0 ports | |
Miscellaneous | |
1 x Clear CMOS header | |
1 x Front Panel Audio header (AAFP) | |
1 x Speaker header | |
1 x 10-1 pin System Panel header | |
Cổng kết nối (Back Panel) | 2 x USB 3.2 Gen 1 ports (2 x Type-A) |
4 x USB 2.0 ports (4 x Type-A) | |
1 x D-Sub port | |
1 x Realtek 1Gb Ethernet port | |
3 x Audio jacks | |
1 x PS/2 Keyboard (purple) port | |
1 x PS/2 Mouse (green) port | |
LAN / Wireless | 1 x Realtek 1Gb Ethernet |
Kích cỡ | microATX |
8.4 inch x 7.4 inch ( 21.3 cm x 18.8 cm ) |
Sản phẩm | Bo mạch chủ |
Tên Hãng | ASUS |
Model | PRIME H510M-F |
CPU hỗ trợ | Intel |
Chipset | H510 |
RAM hỗ trợ | 2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* |
Khe cắm mở rộng | Intel® 11th & 10th Gen Processors |
1 x PCIe 4.0/3.0 x16 slot | |
- Intel® 11th Gen processors support PCIe 4.0 x16 mode | |
- Intel® 10th Gen processors support PCIe 3.0 x16 mode | |
Intel® H510 Chipset | |
1 x PCIe 3.0 x1 slot | |
Ổ cứng hỗ trợ | Total supports 4 x SATA 6Gb/s ports |
Intel® H510 Chipset | |
4 x SATA 6Gb/s ports | |
Cổng kết nối (Internal) | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin Chassis Fan header | |
Power related | |
1 x 24-pin Main Power connector | |
1 x 4-pin +12V Power connector | |
Storage related | |
4 x SATA 6Gb/s ports | |
USB | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
1 x USB 2.0 header supports additional 2 USB 2.0 ports | |
Miscellaneous | |
1 x Clear CMOS header | |
1 x Front Panel Audio header (AAFP) | |
1 x Speaker header | |
1 x 10-1 pin System Panel header | |
Cổng kết nối (Back Panel) | 2 x USB 3.2 Gen 1 ports (2 x Type-A) |
4 x USB 2.0 ports (4 x Type-A) | |
1 x D-Sub port | |
1 x Realtek 1Gb Ethernet port | |
3 x Audio jacks | |
1 x PS/2 Keyboard (purple) port | |
1 x PS/2 Mouse (green) port | |
LAN / Wireless | 1 x Realtek 1Gb Ethernet |
Kích cỡ | microATX |
8.4 inch x 7.4 inch ( 21.3 cm x 18.8 cm ) |
