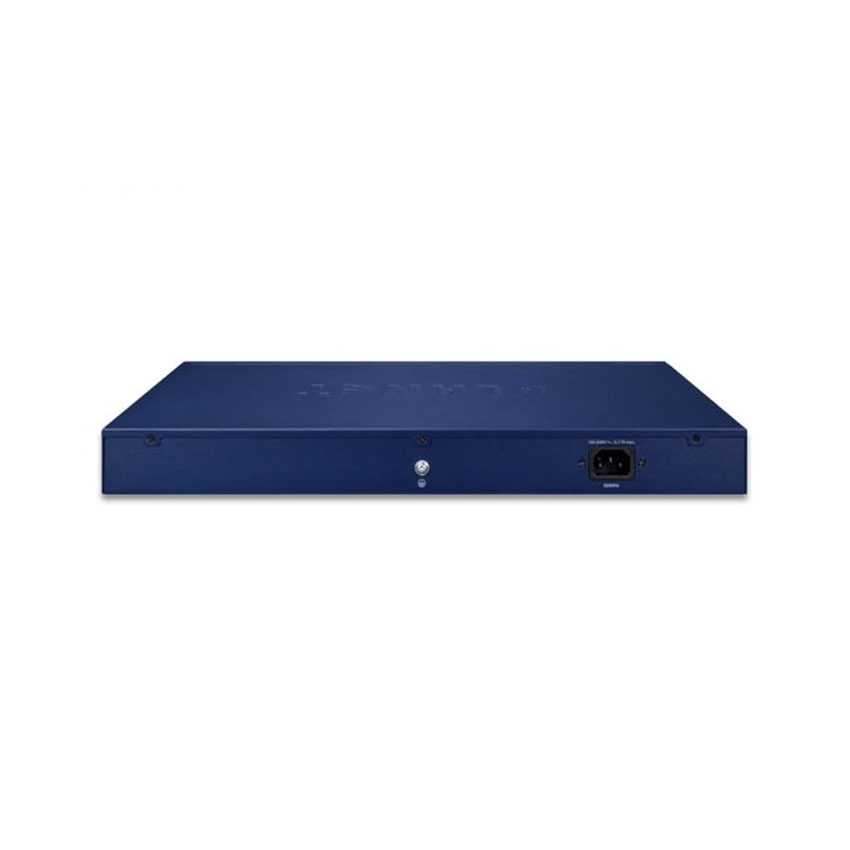

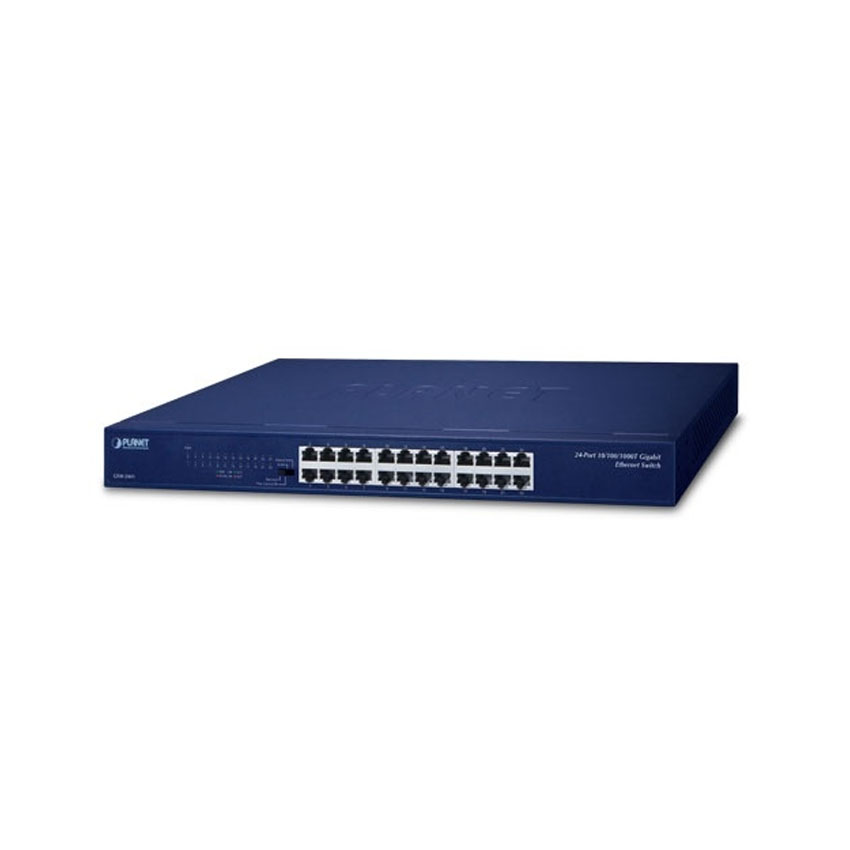

Switch PLANET GSW-2401, 24-Port 10/100/1000Mbps Gigabit Ethernet

Model

GSW-2401

Network Ports

24-Port 10/100/100Mbps RJ-45 with Auto-MDI/MDI-X

Switch Architecture

Store and Forward

Switch Fabric

48Gbps

Switch Throughput

35.7Mbps

Address Table 8K Entries

8 entries

Share Data Buffer

400KB

Flow Control

Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex

Dimension (W x H x D)

440 x 44 x 120 mm

Weight

1.75 KG

Power Requirement

100~240 VAC, 3.0A, 50-60 Hz

Power Consumption

30 watts, 102BTU

Temperature

Operating: 0~50 degree C, Storage -40~70 degree C

Humidity Operating:

10% to 90%, Storage: 5% to 95% (Non-condensing)

Regulation Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab(Gigabit Ethernet)
IEEE 802.3x (Full-duplex flow control)
