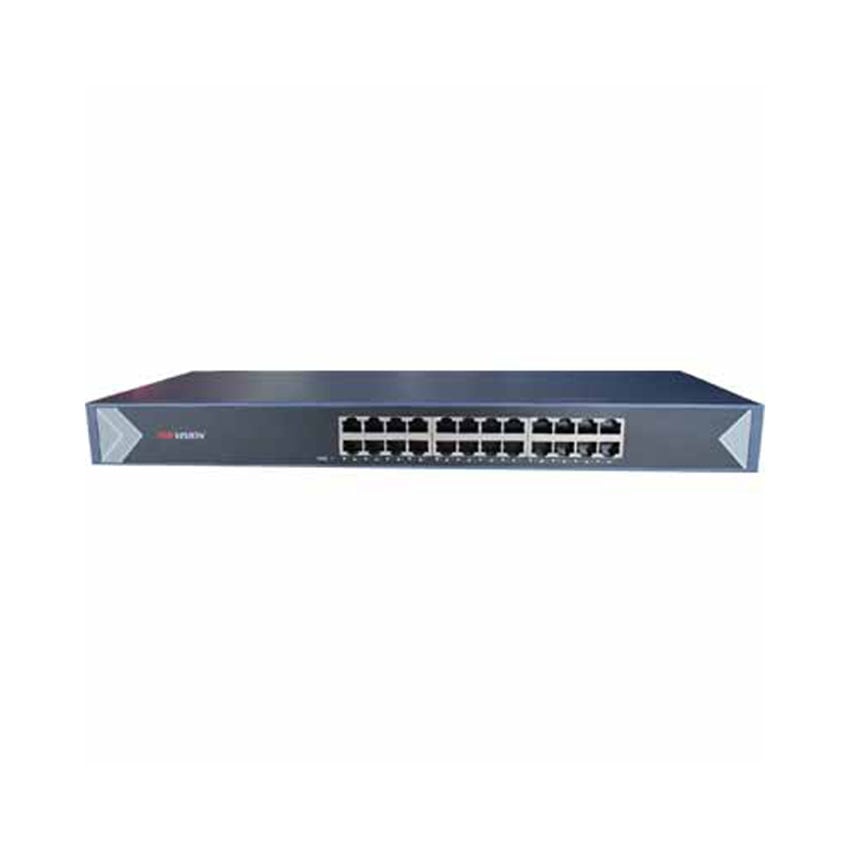

Product Model | DS-3E0524-E |
Network Standard | IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3x |
Transmission Speed | Ethernet: 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex); Fast Ethernet: 100 Mbps (half-duplex)/200 Mbps (full-duplex); Gigabit Ethernet: 2000 Mbps (full-duplex) |
Transmission Medium | Ethernet: CAT3 or better UTP/STP cable; Fast Ethernet: CAT5 or better UTP/STP cable; Gigabit Ethernet: CAT5E or CAT6 UTP/STP cable (recommended) |
Ports | 24 x 10/100/1000Mbps auto-negotiation; RJ45 ports |
Port loopguard | Supported |
Uplink port | Port 23 and Port 24 |
Lightning-proof Ranking RJ45 port | 4 kV |
Lightning-proof Ranking Power source | 4 kV |
LED Indicator | 1 x power LED, 24 x Link/Act LED |
Dimensions (L*W*H) | 440mm×178.8mm×44mm |
Store-and-forward | Supported |
MAC address table | 8 k |
MAC address learning | Automatic learning/Aging |
Package filtering/Forwarding rate | Ethernet: 14881 pps one port; Fast Ethernet: 148810 pps one port; Gigabit Ethernet: 1488100 pps one port |
Backplane bandwidth | 48 Gbps |
Power supply | Input: 100-240 V AC, 50/60 Hz |
Power consumption | ≤18w |
Operating temperature | 0°C - 40°C |
Operating humidity | (10-90) % RH, non-condensing |
Storage temperature | -40°C – 70°C |
Storage humidity | (5-90) % RH, non-condensing |
