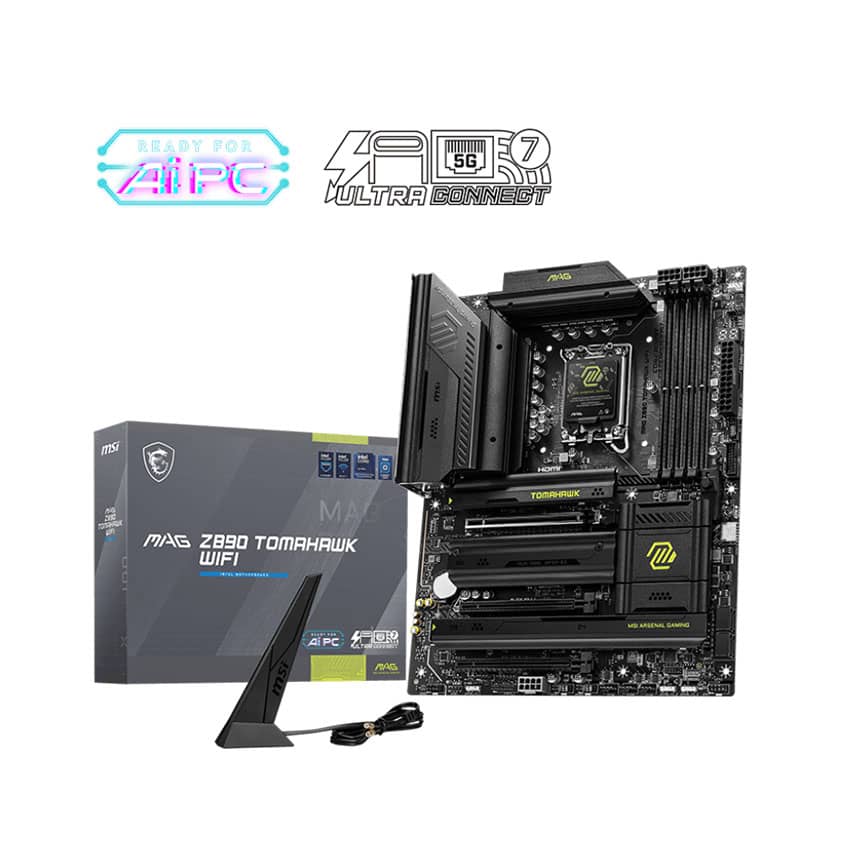

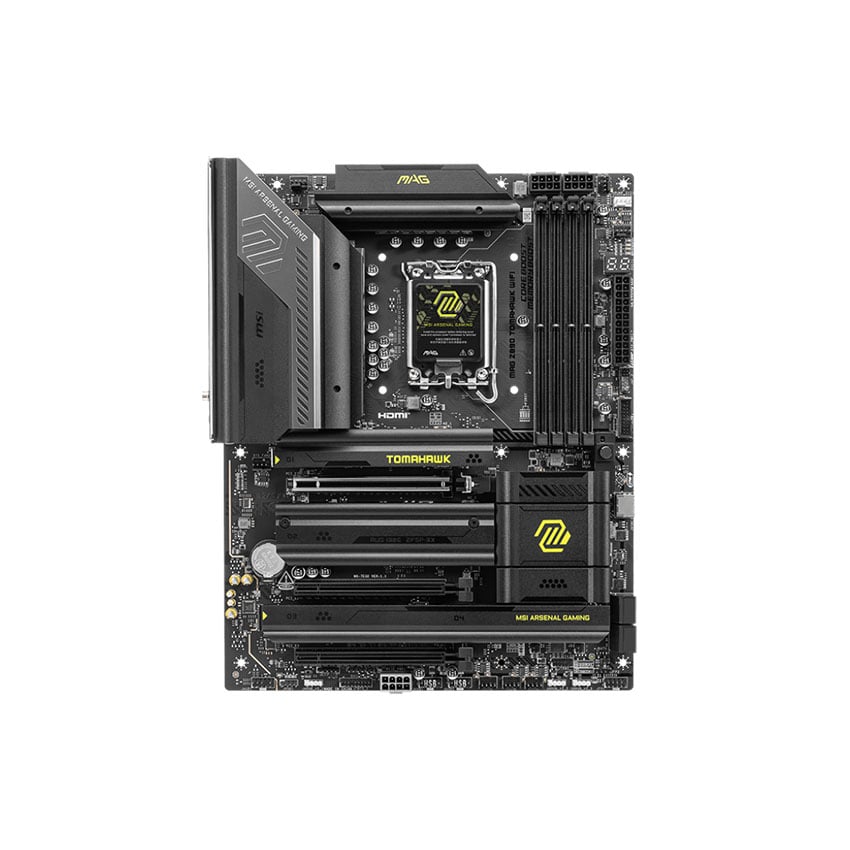

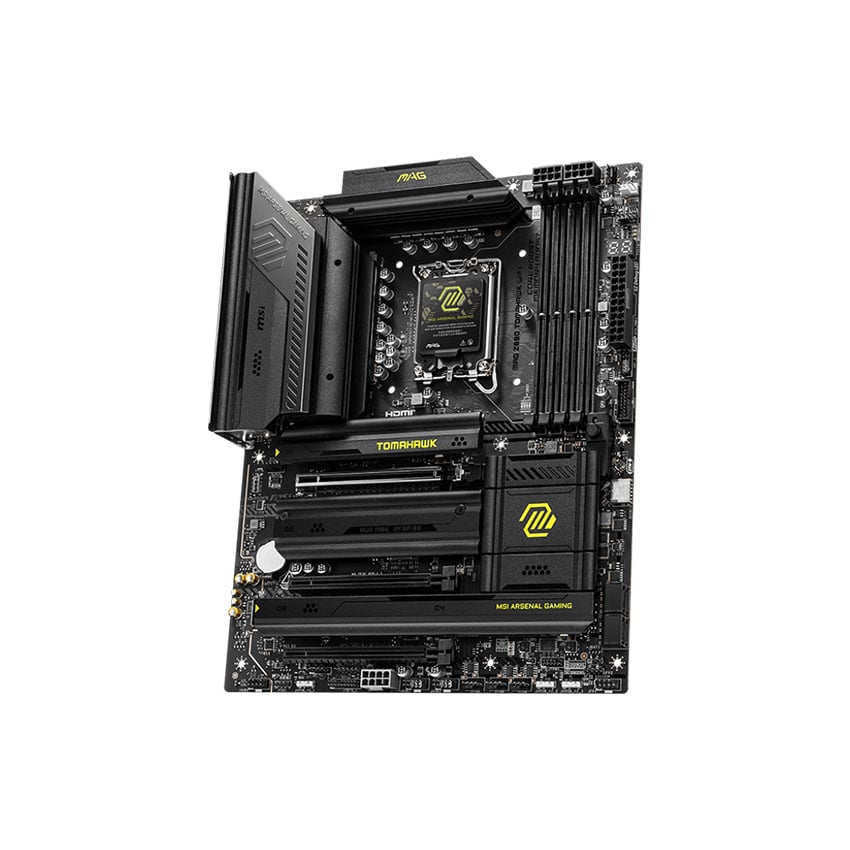

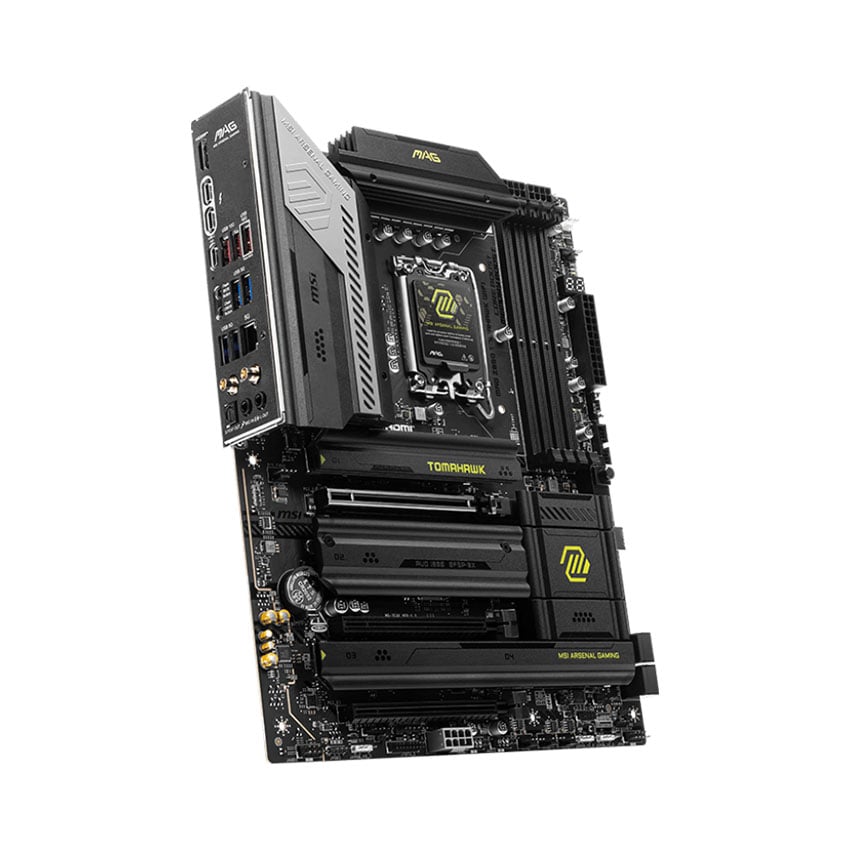

Mainboard MSI MAG Z890 TOMAHAWK WIFI

Sản phẩm

Bo mạch chủ

Tên Hãng

Mainboard MSI

Model

CPU hỗ trợ

Intel

Chipset

INTEL Z890

RAM hỗ trợ

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Khe cắm mở rộng

3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Ổ cứng hỗ trợ

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

Cổng kết nối (Internal)

1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

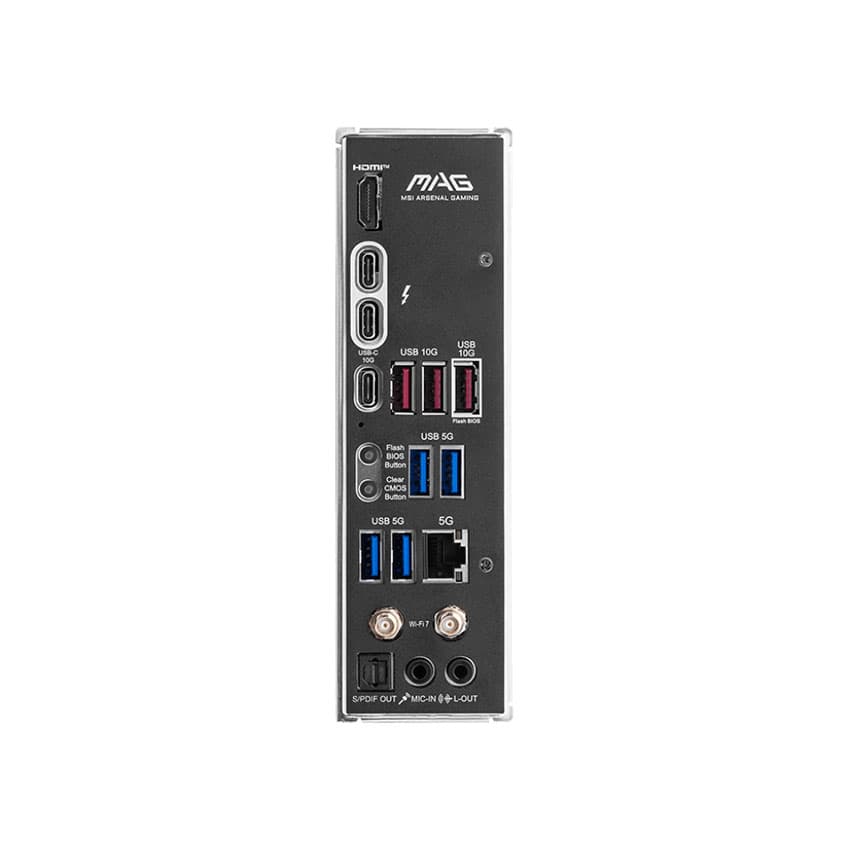

Cổng kết nối (Back Panel)

1. USB 10Gbps Type-A
2. USB 5Gbps Type-A
3. 5G LAN
4. Wi-Fi / Bluetooth
5. Audio Connectors
6. HDMI™
7. Thunderbolt™ 4 40Gbps (Type-C)
8. USB 10Gbps Type-C
9. Flash BIOS Button
10. Clear CMOS Button
11. USB 5Gbps Type-A
12. S/PDIF-OUT

LAN / Wireless

Intel^® Killer™ E5000 5Gbps LAN

Intel^® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth^® 5.4**, MLO, 4KQAM

Onboard Thunderbolt

2x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display

USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1

Kích cỡ

ATX
243.84mmx304.8mm
