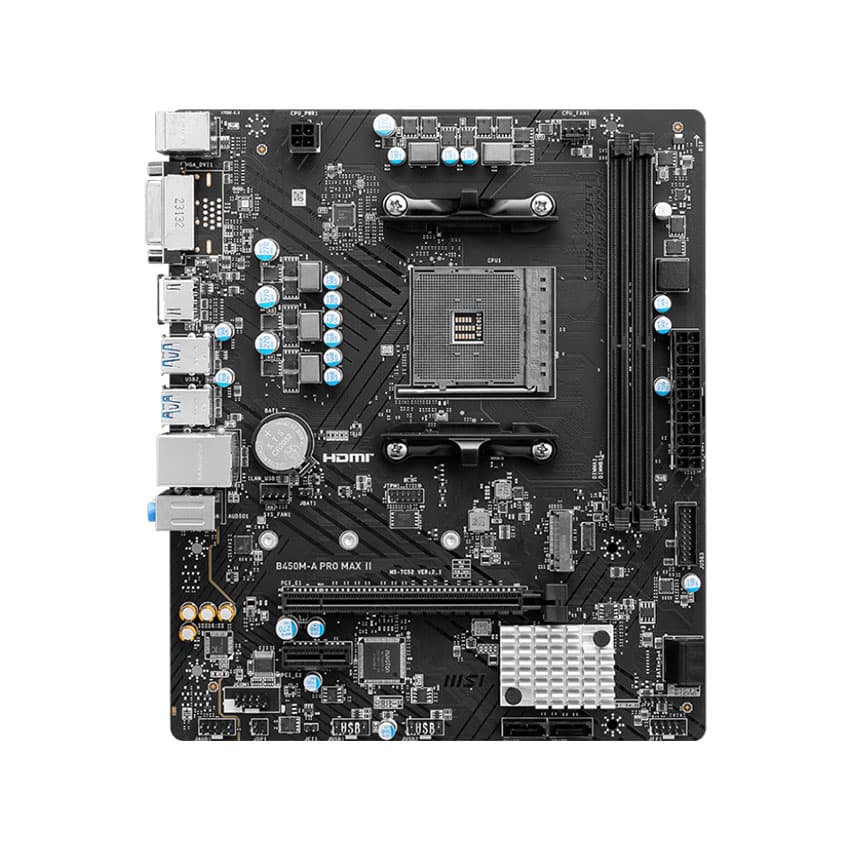

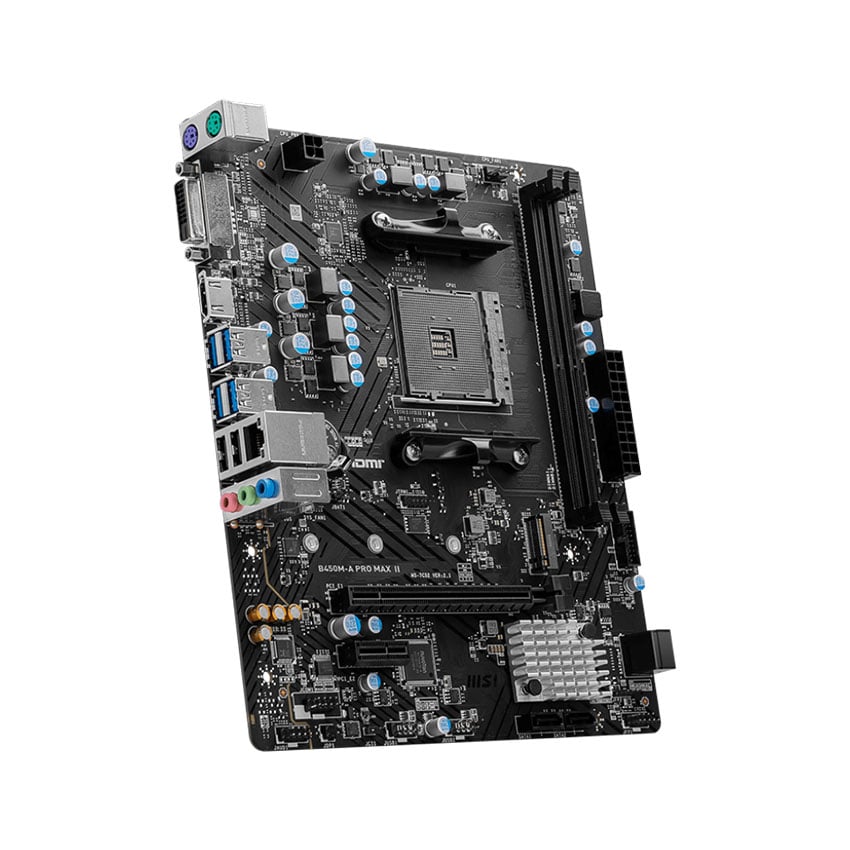

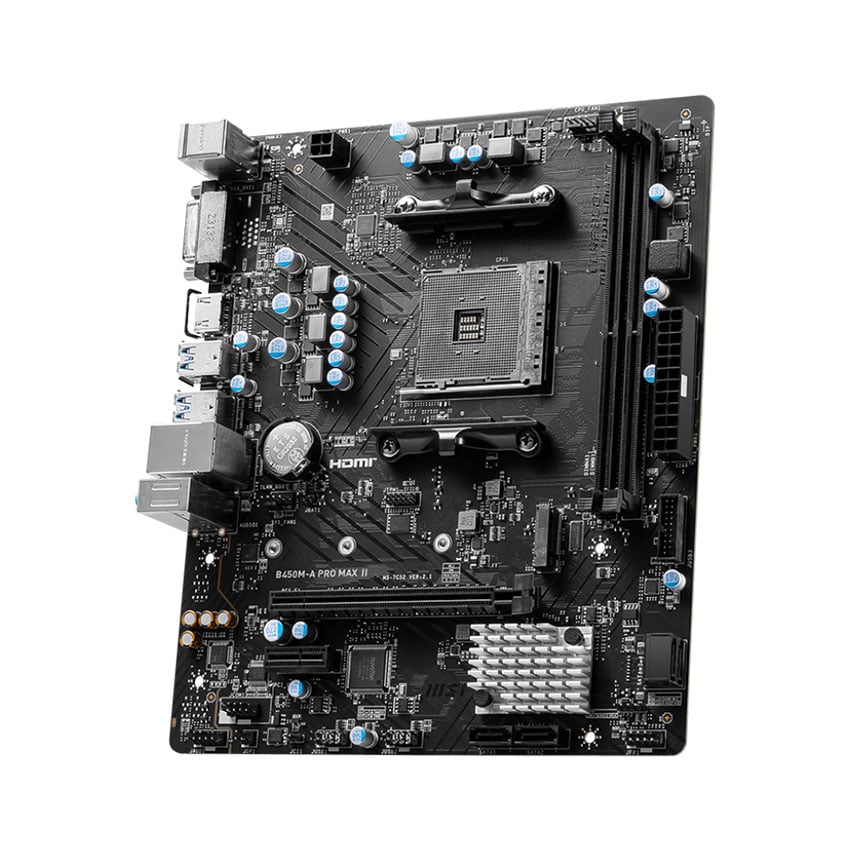

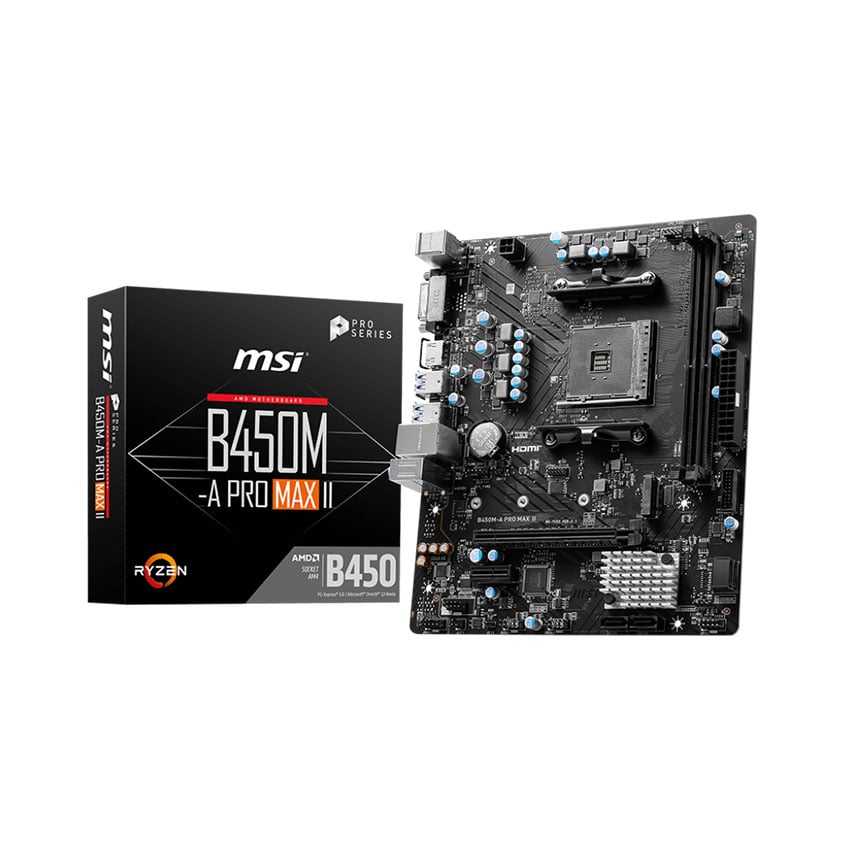

Mainboard MSI B450M-A PRO MAX II

Mã SP: MBMS0503

Đánh giá: rate 0

Bình luận: 0

Lượt xem: 2.932

Thông số sản phẩm

Hỗ trợ CPU: AMD Socket AM4
Socket: AMD AM5
Hỗ trợ Ram: 2 x DDR4 (Max 64GB)
Kích thước: m-ATX

1.699.000đ

1.999.000đ

Tiết kiệm: 300.000đ

Giá đã bao gồm VAT

Bảo hành: 36 Tháng

QUÀ TẶNG KHUYẾN MẠI

CAM KẾT GIÁ CẠNH TRANH NHẤT, GỌI 19001903 HOẶC ĐẾN TẠI CỬA HÀNG

Liên hệ mua hàng

KD Chi Nhánh Đống Đa 0968391551 / 0986650460 / 0862014768

KD Chi nhánh Hai Bà Trưng: 0914169845

KD Chi nhánh Long Biên: 0862014768

KD Chi nhánh Hà Đông 1: 0988849755

KD Chi nhánh Hà Đông 2: 0981650022

KD Dự án - Doanh nghiệp: 0964110606

Hỗ trợ kỹ thuật: 0862013066

Đánh giá: Mainboard MSI B450M-A PRO MAX II

thumbnail-diy-friendly

DIY FRIENDLY

thumbnail-enhanced-performance

Enhanced Performance

thumbnail-in-game-advantage

In-Studio Advantage

thumbnail-exhilarating-and-inspiring

Exhilarating and Inspiring

thumbnail-loyal-comrade

Loyal Comrade

B450M-A PRO MAX II

STRONGER THAN STEEL

  • Keyboard & Mouse
  • DVI-D
  • HDMI™
  • USB 3.2 Gen1
  • USB 3.2 Gen1
  • USB 2.0 & LAN Port
  • HD Audio Connectors
  • DDR4 Boost Optimized traces and isolated memory
  • Turbo M.2 Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Heavy Plated Heatsinks Leading heatsinks design, for maximum cooling
  • Audio Boost Reward your ears with studio grade sound quality
DIY FRIENDLY

MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.

LEARN MORE
Cooling

Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.

LEARN MORE
BIOS and Software

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance.

LEARN MORE
Compatibility

Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.

ENHANCED PERFORMANCE

MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.

LEARN MORE
CPU

Power on your RYZEN processor with optimized circuit layouts and high quality power delivery parts for an incredibly stable operation.

LEARN MORE
Storage

MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

IN-STUDIO ADVANTAGE

MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.

LEARN MORE
Audio

Reward your ears with studio grade sound quality. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, studio quality sound to create the most immersive sound experience.

EXHILARATING AND INSPIRING

Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.

LEARN MORE
Industrial Design

PRO Series motherboards combine stable functionality and high quality assembly for clever business solutions. Designed to satisfy any professional workflow, PRO Series motherboards make life easier for businesses and office use.

LOYAL COMRADE

 With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.



Nhận xét và Đánh giá

0/5
5
0 đánh giá
4
0 đánh giá
3
0 đánh giá
2
0 đánh giá
1
0 đánh giá
Chia sẻ nhận xét về sản phẩm Viết nhận xét của bạn

Thông số kỹ thuật

Model B450M-A PRO MAX II

CPU hỗ trợ

Hỗ trợ AMD Ryzen / Ryzen thế hệ thứ nhất, thứ hai và thứ ba với Đồ họa Radeon Vega và AMD Ryzen thế hệ thứ hai với Đồ họa Radeon / Athlon với Đồ họa Radeon Vega và Bộ xử lý máy tính để bàn A-series / Athlon X4 cho Socket AM4

Chipset

AMD® B450

RAM hỗ trợ

2 x khe cắm bộ nhớ DDR4, hỗ trợ lên đến 64GB * BIOS dựa trên ComboPI 1.0.0.3 trở lên là bắt buộc.
Hỗ trợ DDR4 1866/2133/2400 / 2667Mhz (bởi JEDEC)
Đối với AMD Ryzen Gen3 (R5 / R7 / R9)
2667/2800/2933/3000/3066/300/3466/ 3733/3866/400/433 MHz (theo A-XMP OC MODE)
Đối với CPU khác của AMD
2667/2800/2933/3000/33066/300/3466 MHz (bằng A-XMP OC MODE)
Kiến trúc bộ nhớ kênh đôi
Hỗ trợ bộ nhớ ECC UDIMM (chế độ không phải ECC)
Hỗ trợ bộ nhớ UDIMM không phải ECC
Khe cắm mở rộng



1 x khe cắm PCIe 3.0 x16
Hỗ trợ tốc độ x16
AMD Ryzen thế hệ thứ nhất, thứ hai và thứ ba
Hỗ trợ tốc độ x8
Ryzen với Đồ họa Radeon Vega
AMD Ryzen thế hệ thứ 2 với Đồ họa Radeon
Một loạt
Athlon X4
Hỗ trợ tốc độ x4
AMD Athlon với Đồ họa Radeon Vega
Khe cắm PCIe 2.0 x1

Hình ảnh

1 x cổng DVI-D, hỗ trợ độ phân giải tối đa 1920x1200 @ 60Hz
1 x HDMI 2.0b với cổng HDR, hỗ trợ độ phân giải tối đa 4K @ 60Hz


Chỉ hỗ trợ khi sử dụng bộ xử lý với Graphicss
Bộ nhớ chia sẻ tối đa 2048 MB
Thông số kỹ thuật đồ họa có thể khác nhau tùy thuộc vào CPU được cài đặt.

Đa card màn hình Hỗ trợ AMD 2 chiều công nghệ CrossFire™

Lưu trữ

4 x cổng SATA 6Gb / s
Hỗ trợ RAID 0, RAID1 và RAID 10
1x khe M.2 (Phím M)
Hỗ trợ PCIe 3.0 x4 và SATA 6Gb / s
AMD Ryzen thế hệ thứ nhất, thứ hai và thứ ba
Ryzen với Đồ họa Radeon Vega
AMD Ryzen thế hệ thứ 2 với Đồ họa Radeon
Hỗ trợ PCIe 3.0 x2 và SATA 6Gb / s
AMD Athlon với Đồ họa Radeon Vega
Một loạt
Athlon X4
Hỗ trợ 2242/2280/22110 thiết bị lưu trữ

USB

6x cổng USB 3.2 Gen1 (SuperSpeed ​​USB) (4 cổng ở mặt sau, 2 cổng khả dụng thông qua đầu nối USB bên trong)


6x cổng USB 2.0 (USB tốc độ cao) (2 cổng ở mặt sau, 4 cổng có sẵn thông qua các đầu nối USB bên trong)

Âm Thanh

Bộ giải mã Realtek ALC892 / ALC897
Âm thanh độ nét cao 7.1 kênh

LAN

1 x Realtek bộ điều khiển mạng LAN Gigabit 8111H

Cổng kết nối bên trong

1x đầu nối nguồn chính ATX 24 chân
1x đầu nối nguồn ATX 12V 4 chân
4x đầu nối SATA 6Gb / s
2x đầu nối USB 2.0 (hỗ trợ thêm 4 cổng USB 2.0)
1x đầu nối USB 3.2 Gen1 (hỗ trợ thêm 2 cổng USB 3.2 Gen1)
1x đầu nối quạt CPU 4 chân
1x đầu nối quạt hệ thống 4 chân
1x Đầu nối âm thanh mặt trước
2x đầu nối bảng điều khiển phía trước
1x đầu nối mô-đun TPM
1x Đầu nối xâm nhập khung gầm
1x đầu nối cổng nối tiếp
1x Clear CMOS jumper

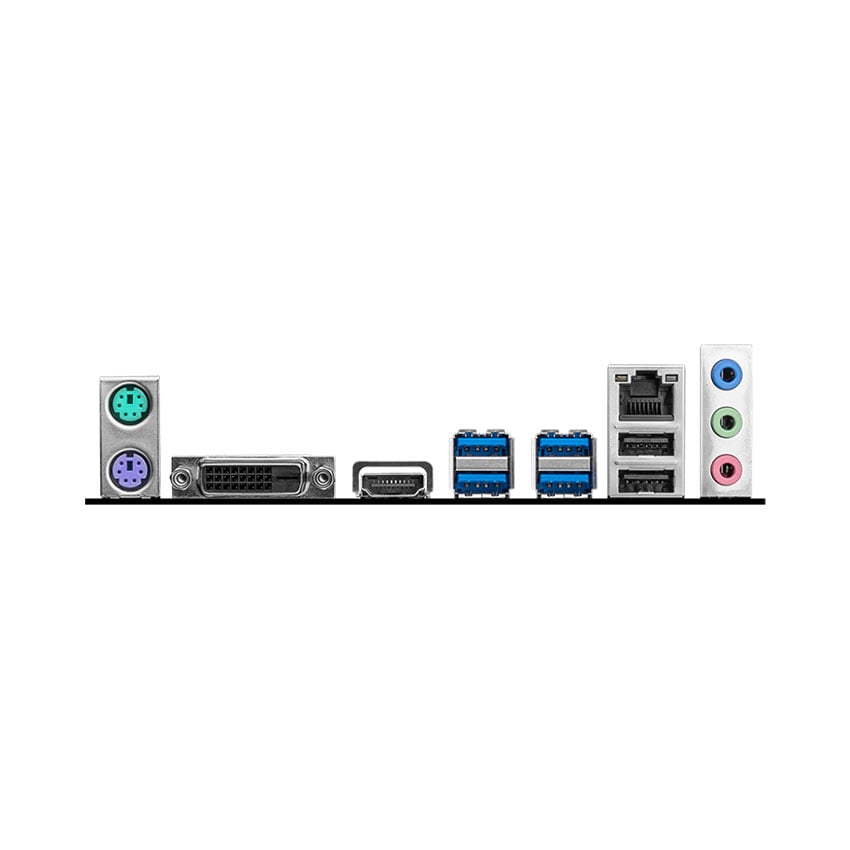

Cổng kết nối Phía sau

  1. Mouse
  2. DVI-D Port
  3. USB 3.2 Gen1
  4. LAN Port
  5. Keyboard
  6. HDMI Port
  7. USB 2.0 Ports
  8. HD Audio Connectors

Kích cỡ

9,3 inch x 7,9 inch (23,6 cm x 20,0 cm)
Hệ số hình thức m-ATX
Lỗ bắt ốc 6 mounting holes
