CPU
|

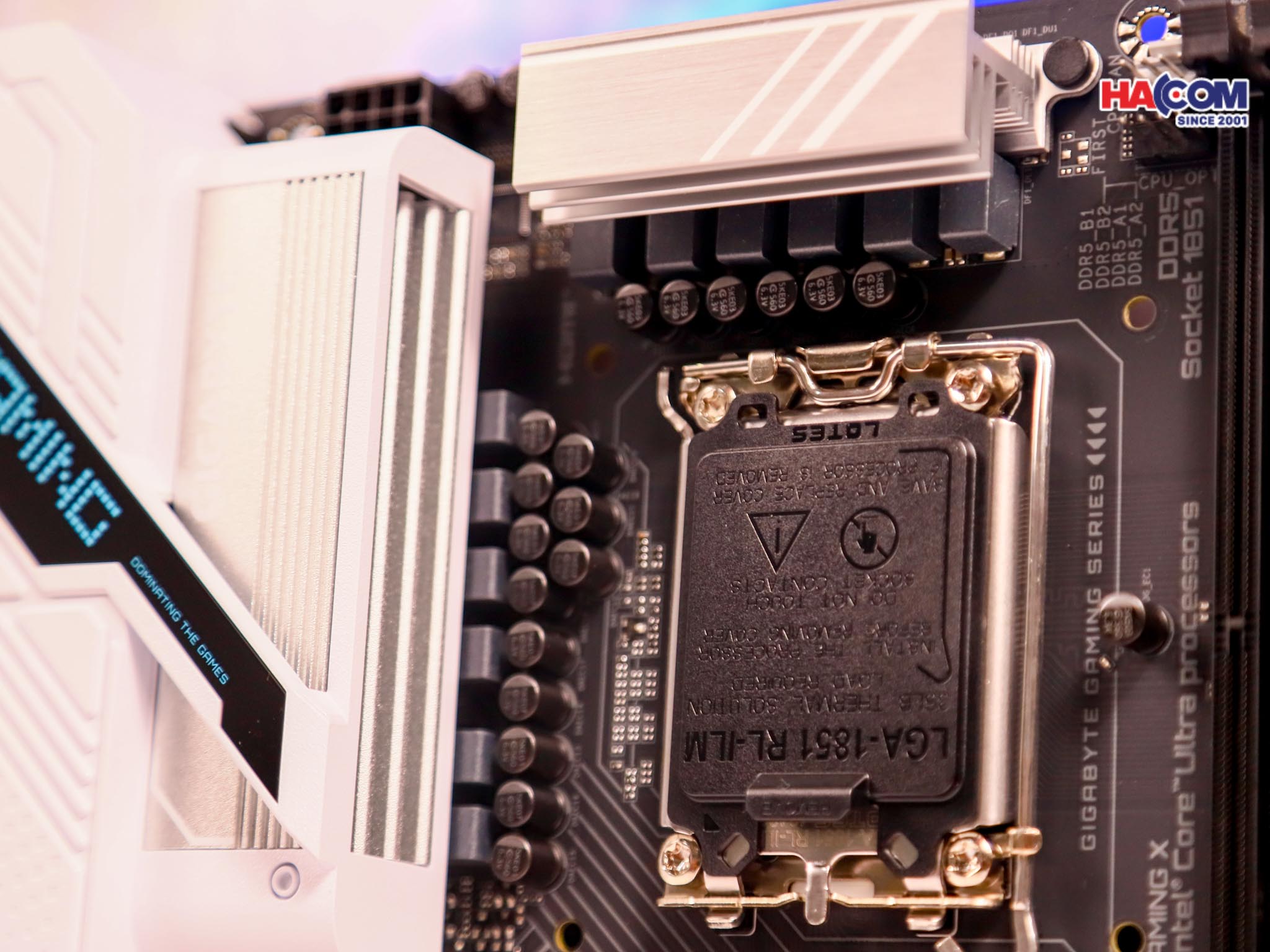

LGA1851 socket: Support for Intel® Core™ Ultra Processors
|
| L3 cache varies with CPU |
| * Please refer to "CPU Support List" for more information. |
|
Chipset
|
Intel® Z890 Express Chipset
|
|
Bộ nhớ
|
Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
|
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory |
|
Card đồ họa tích hợp
|
Integrated Graphics Processor-Intel® HD Graphics support:
|
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| * Support for HDMI 2.1 version and HDCP 2.3. |
| ** Support for native HDMI 2.1 TMDS compatible ports. |
| - 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz |
| * Support for DisplayPort 2.1 version. |
| (Graphics specifications may vary depending on CPU support.) |
| Support for up to triple-display at the same time |
|
Âm thanh
|
Realtek® Audio CODEC
|
| High Definition Audio |
| 2/4/5.1/7.1-channel |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
|
LAN
|
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
|
Khe cắm mở rộng
|
CPU:
|
| - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| |
| Chipset: |
| - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
Giao diện lưu trữ
|
CPU:
|

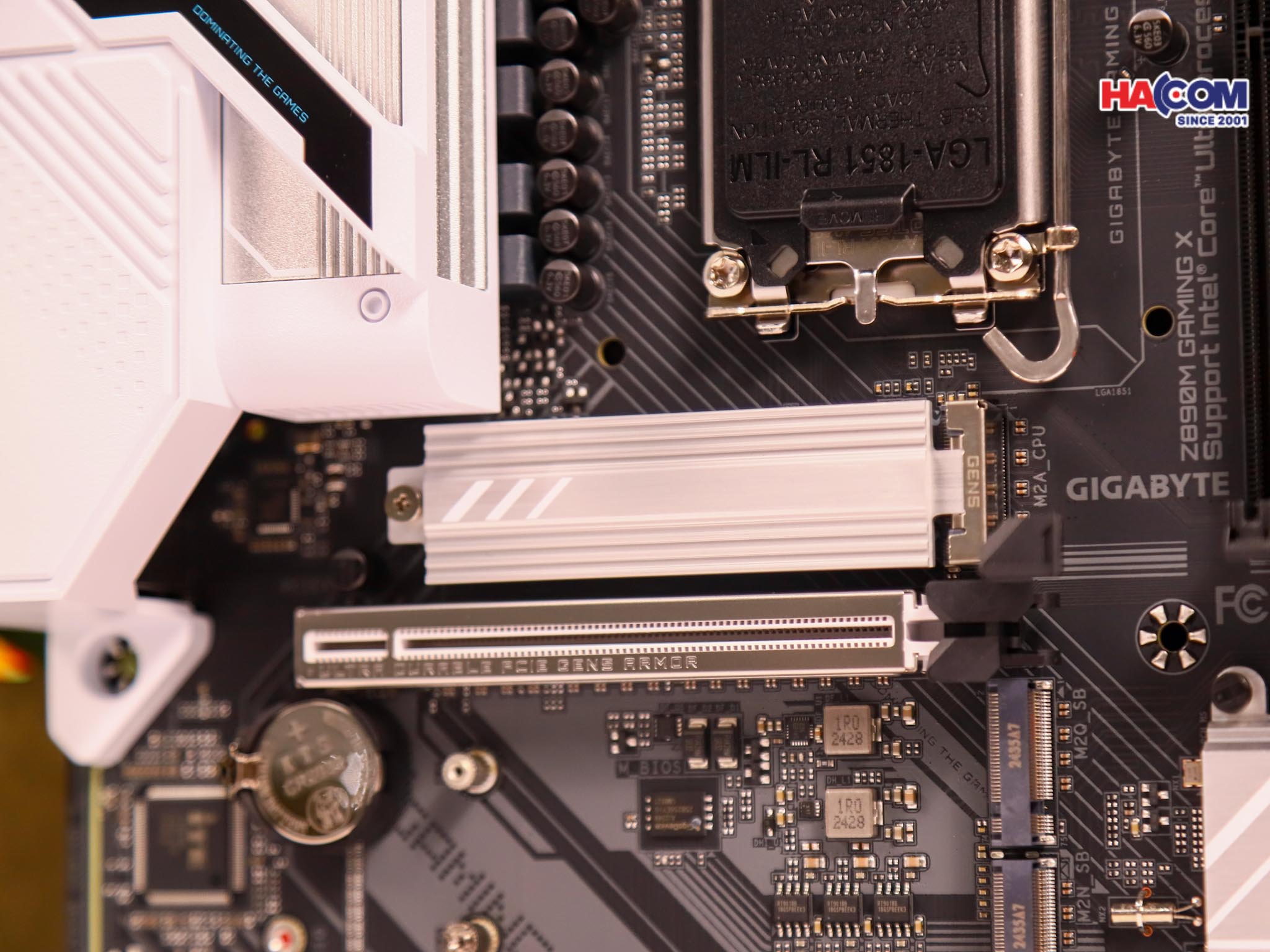

| - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset: |
| - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) |
| - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) |
| - 4 x SATA 6Gb/s connectors |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
USB
|
Chipset:
|
| - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
| - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) |
| - 2 x USB 2.0/1.1 ports on the back panel |
| Chipset+2 USB 2.0 Hubs: |
| - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
Kết nối I/O bên trong
|
1 x 24-pin ATX main power connector
|
| 1 x 8-pin ATX 12V power connector |
| 1 x CPU fan header |
| 1 x CPU fan/water cooling pump header |
| 1 x system fan header |
| 1 x system fan/water cooling pump header |
| 2 x addressable RGB Gen2 LED strip headers |
| 1 x RGB LED strip header |
| 3 x M.2 Socket 3 connectors |
| 4 x SATA 6Gb/s connectors |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| 1 x USB 3.2 Gen 1 header |
| 2 x USB 2.0/1.1 headers |
| 2 x Thunderbolt™ add-in card connectors |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| 1 x serial port header |
| 1 x Clear CMOS jumper |
|

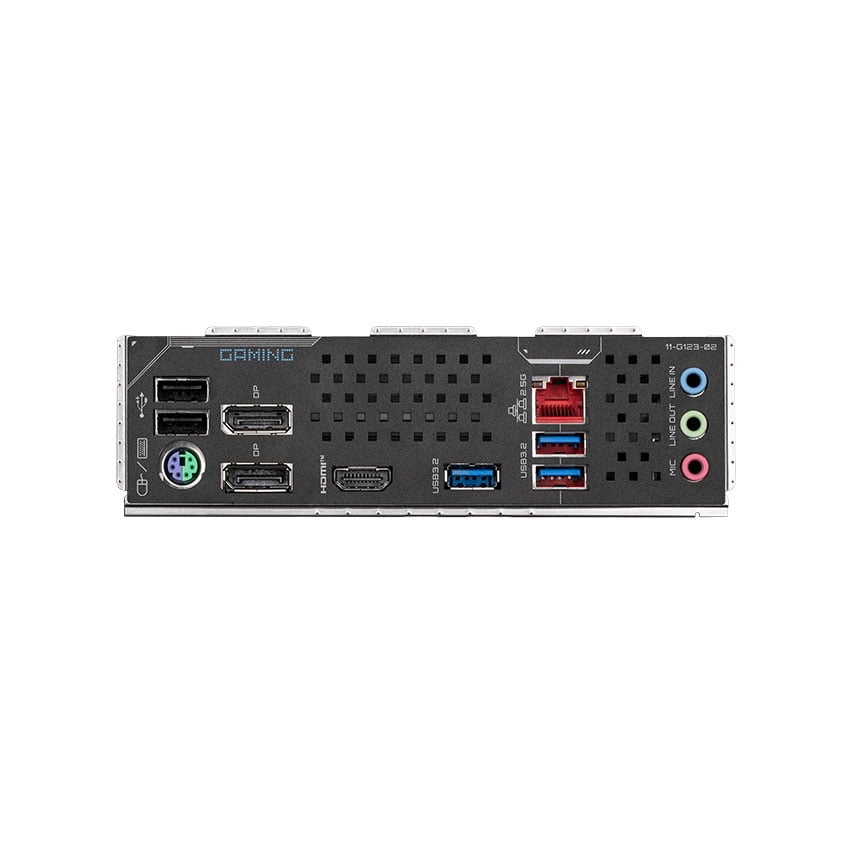

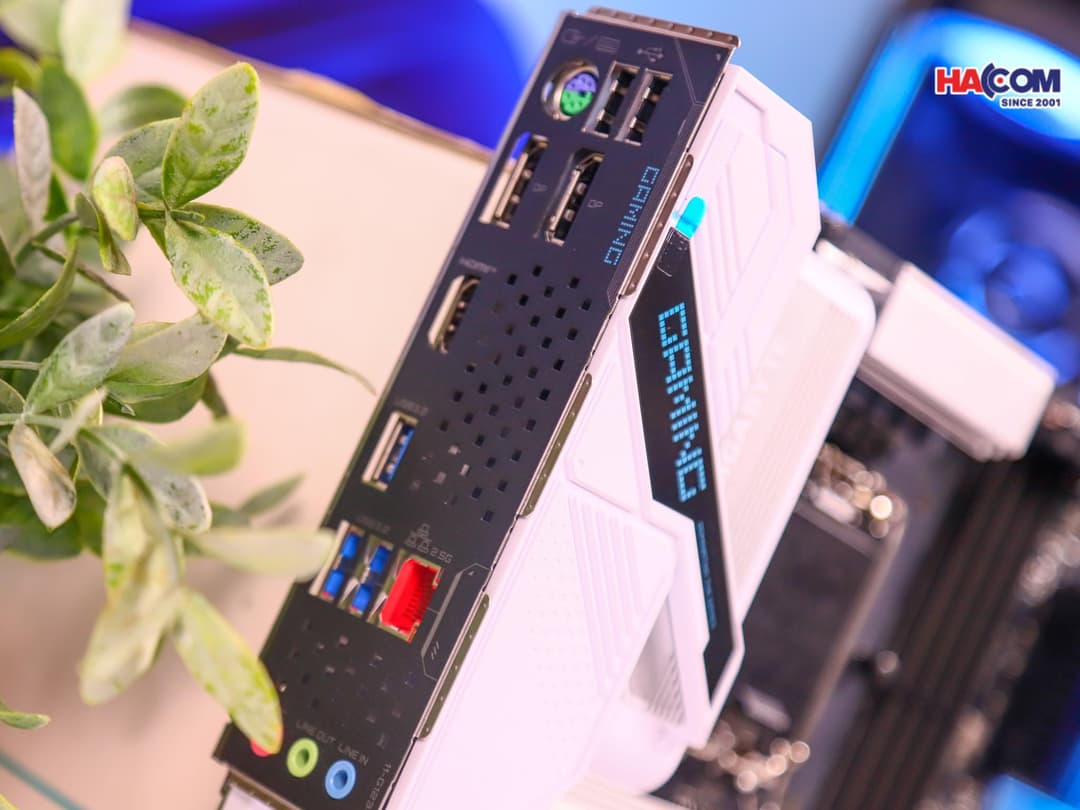

Kết nối bảng phía sau
|
1 x PS/2 keyboard/mouse port
|
| 3 x USB 3.2 Gen 1 ports |
| 2 x USB 2.0/1.1 ports |
| 1 x HDMI port (Note) |
| 2 x DisplayPorts (Note) |
| 1 x RJ-45 port |
| 3 x audio jacks |
| |
| (Note) Actual support may vary by CPU. |
|
Điều khiển I/O
|
iTE® I/O Controller Chip
|
|
BIOS
|
1 x 256 Mbit flash
|
| Use of licensed AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Hệ điều hành
|
Support for Windows 11 64-bit
|
| |
Support for Windows 10 64-bit |
|
Kích thước
|
Micro ATX Form Factor; 24.4cm x 24.4cm
|
