| Sản phẩm |
Bo mạch chủ |
| Tên Hãng |
Asus |
| Model |
TUF GAMING Z790-PLUS |
| CPU hỗ trợ |
Intel |
| Chipset |
Intel Z790 Chipset |
| RAM hỗ trợ |
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC) |
| 4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC) |
| 3866(OC)/3733(OC) |
| /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000 |
| 2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |

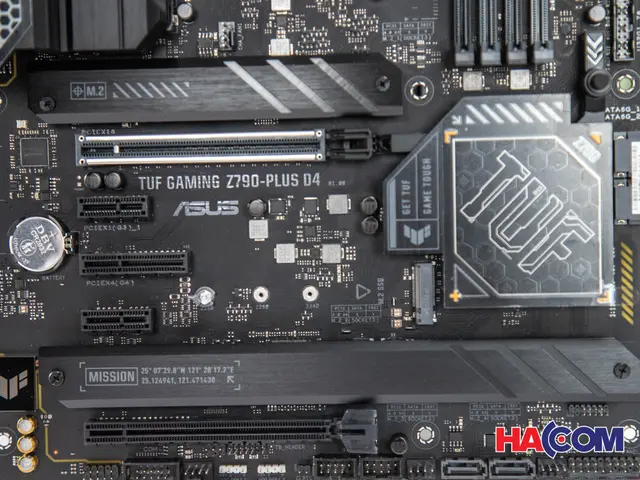

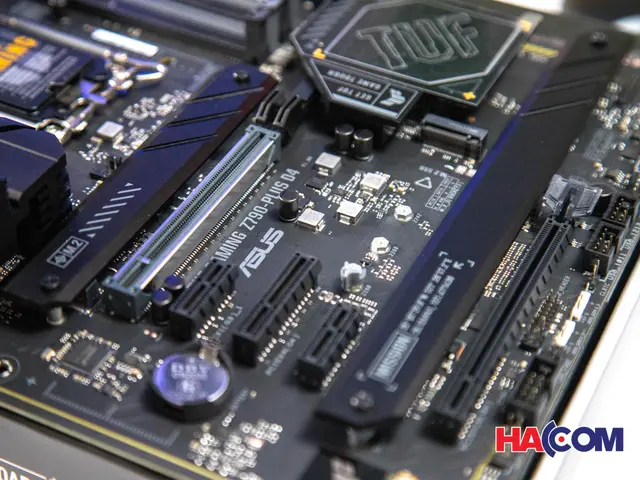

| Khe cắm mở rộng |
Intel® 13th & 12th Gen Processors* |
| 1 x PCIe 5.0 x16 slot |
| Intel® Z790 Chipset |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| 1 x PCIe 4.0 x4 slot |
| 2 x PCIe 3.0 x1 slots |
| Ổ cứng hỗ trợ |
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® 13th & 12th Gen Processors |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 |
| - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode |
| Intel® Z790 Chipset |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| 4 x SATA 6Gb/s ports |
| Cổng kết nối (Internal |
Fan and Cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 4 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 1 x 8-pin +12V Power connector |
| 1 x 4-pin +12V Power connector |
| Storage related |
| 4 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 1 x Aura RGB header |
| 1 x Clear CMOS header |
| 1 x COM Port header |
| 1 x Front Panel Audio header (AAFP) |
| 1 x 20-3 pin System Panel header with Chassis intrude function |
| 1 x Thunderbolt™ (USB4®) header |

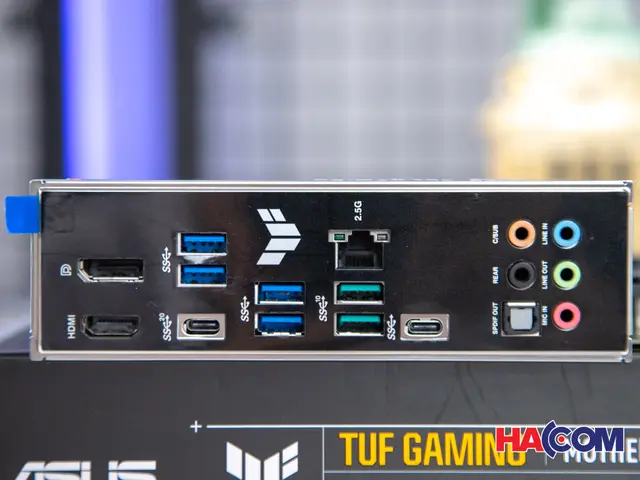

| Cổng kết nối (Back Panel) |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
| 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| 1 x DisplayPort |
| 1 x HDMI® port |
| 1 x Wi-Fi Module |
| 1 x Intel® 2.5Gb Ethernet port |
| 5 x Audio jacks |
| 1 x Optical S/PDIF out port |
| LAN / Wireless |
1 x Intel® 2.5Gb Ethernet |
| TUF LANGuard |
| Kích cỡ |
ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
