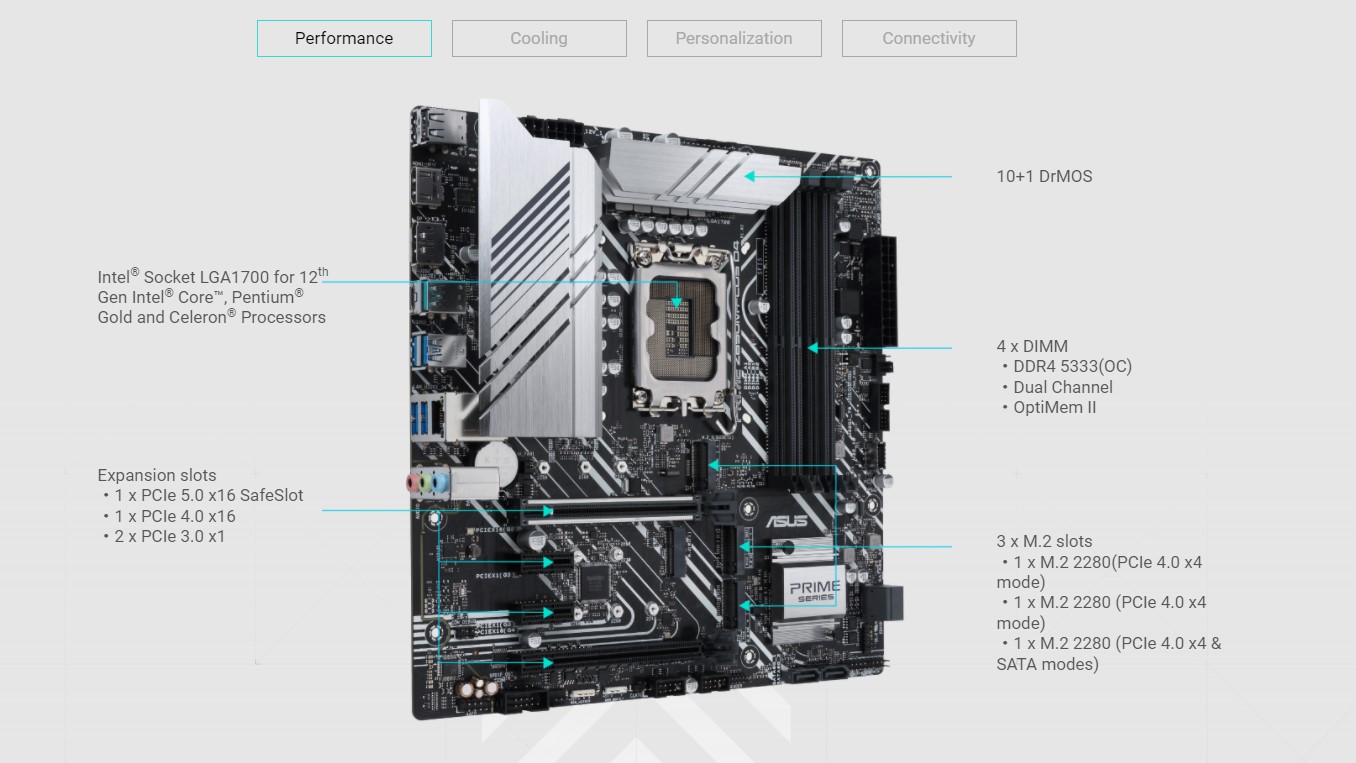

Bo mạch chủ |
|

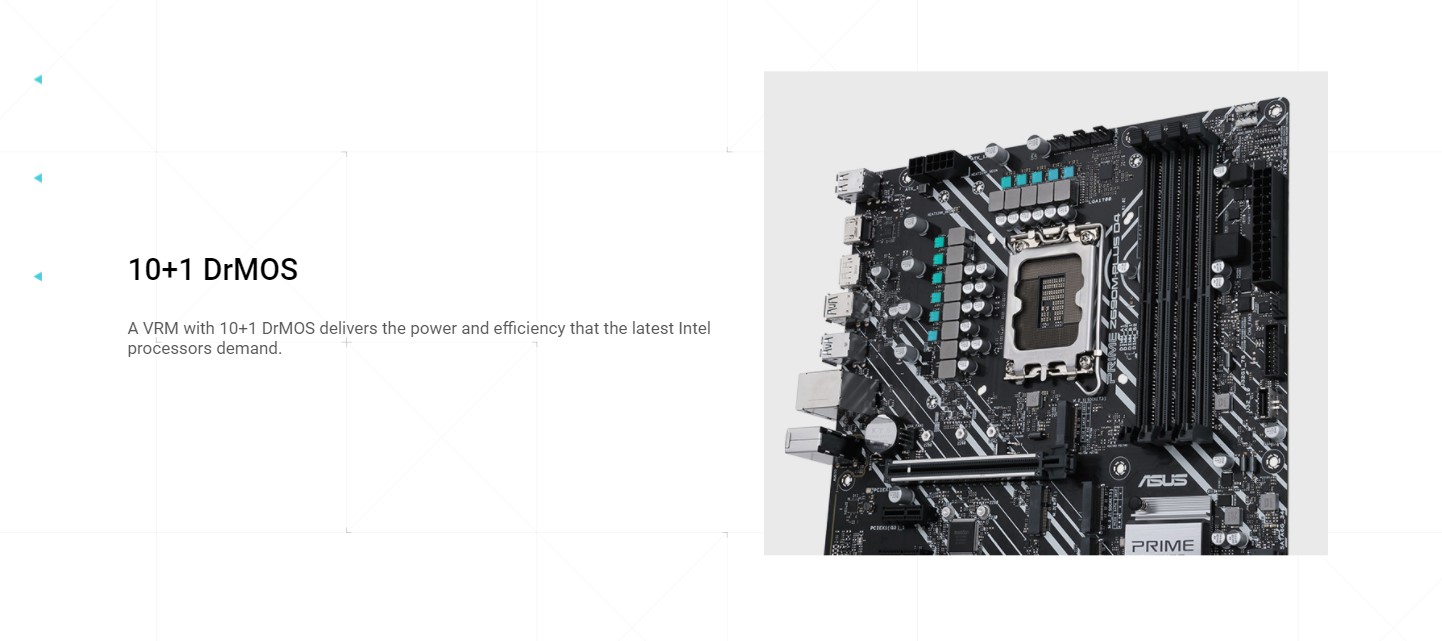

CPU hỗ trợ
|
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| * Refer to www.asus.com for CPU support list. |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset |
Intel® Z690 Chipset |
| Bộ nhớ trong |
4 x DIMM, Max. 128GB, DDR4 |
| 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered Memory*Dual Channel Memory Architecture |
| Supports Intel® Extreme Memory Profile (XMP) |
| OptiMem II |
| *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. |
| Hiển thị đồ họa |
1 x DisplayPort** |
| 1 x HDMI® port*** |
| *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| **Support 4K@60Hz as specified in DisplayPort 1.4. |
| ***Support 4K@60Hz as specified in HDMI 2.1. |
| Khe mở rộng |
Intel® 12th Gen Processors* |
| 1 x PCIe 5.0/4.0/3.0 x16 slot |
| Intel® Z690 Chipset** |
| 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) |
| 2 x PCIe 3.0 x1 slots |
| * Please check PCIe bifurcation table in support site. |
| ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot |
| Chuẩn lưu trữ |

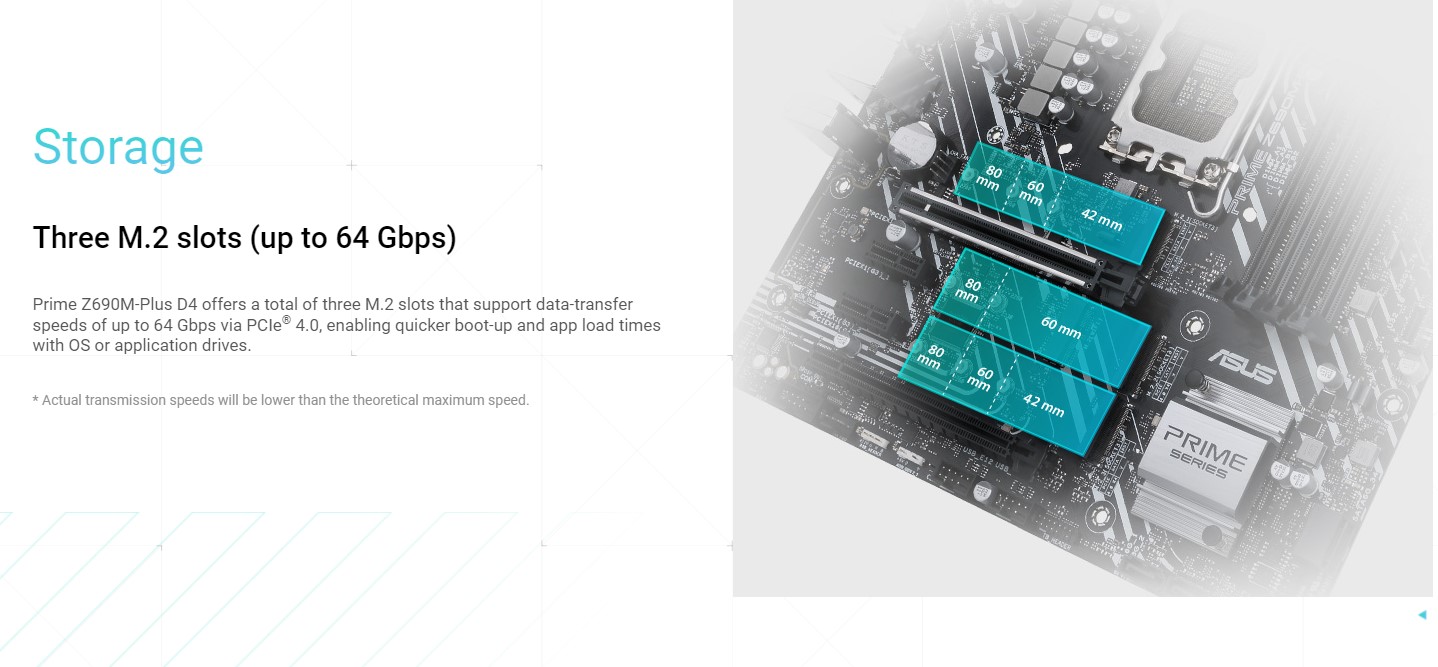

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Intel® 12th Gen Processors |
| M.2_1 slot (Key M), type 2242/2260/2280 |
| – Intel® 12th Gen processors support PCIe 4.0 x4 mode. |
| Intel® Z690 Chipset** |
| M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| 4 x SATA 6Gb/s ports |
| * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. |
| ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
| Mạng |
1 x Intel® 1Gb Ethernet |
| M.2 slot only (Key E, CNVi & PCIe) |
| *Wi-Fi module is sold separately. |
| Âm Thanh |
Realtek 7.1 Surround Sound High |
| Definition Audio CODEC* |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| – Supports up to 24-Bit/192 kHz playback |
| Audio Features |
| – Audio Shielding |
| – Premium audio capacitors |
| – Dedicated audio PCB layers |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Kết nối ngoài |

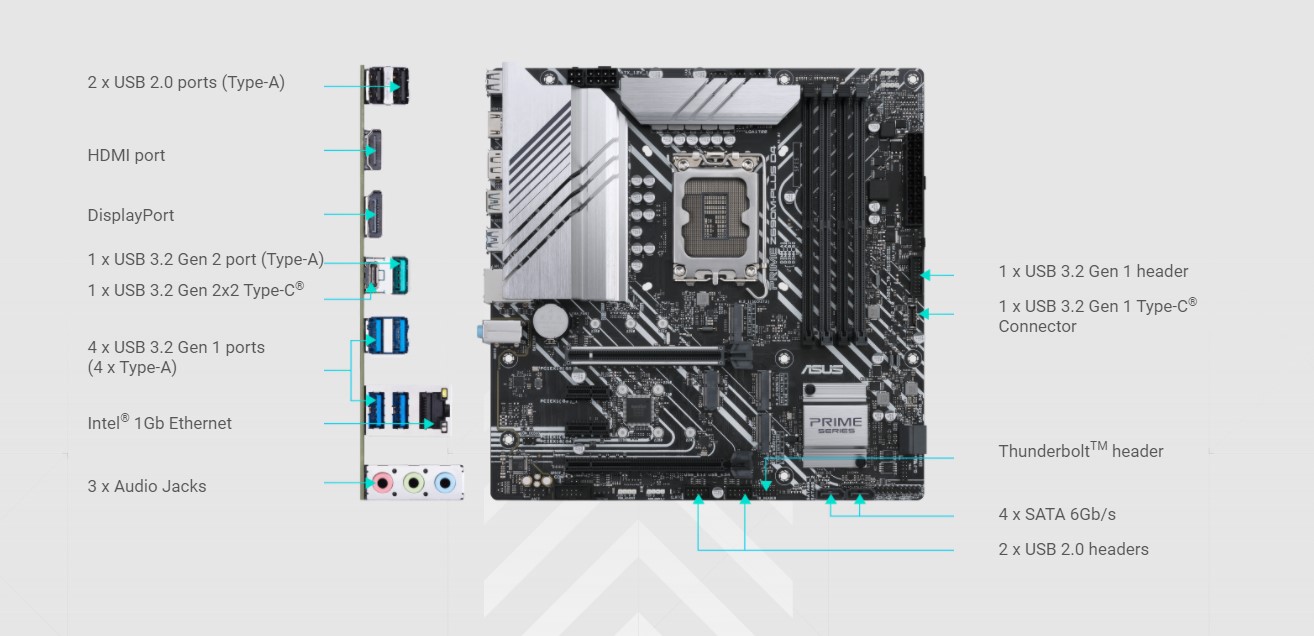

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) |
| 1 x DisplayPort |
| 1 x HDMI® port |
| 1 x Intel® 1Gb Ethernet port |
| 3 x Audio jacks |
| Kết nối trong |
Fan and cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 3 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 1 x 8-pin +12V Power connector |
| 1 x 4-pin +12V Power connector |
| Storage related |
| 3 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 1 x AURA RGB header |
| 1 x Clear CMOS header |
| 1 x COM Port header |
| 1 x Front Panel Audio header (AAFP) |
| 1 x M.2 slot (Key E) |
| 1 x S/PDIF Out header |
| 1 x SPI TPM header (14-1pin) |
| 1 x 20-3 pin System Panel header with Chassis intrude function |
| 1 x Thunderbolt™ header |
| Kích thước |
microATX |
| 24.4cm x 24.4cm |
