| Sản phẩm |
Bo mạch chủ |
| Tên Hãng |
Asus |
| Model |
ROG STRIX Z790-I GAMING WIFI |
| CPU hỗ trợ |
Intel |
| Chipset |
Intel Z790 Chipset |
| RAM hỗ trợ |
2 x DIMM, Max. 64GB, DDR5 |
| 7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ |
| 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory |
| Khe cắm mở rộng |
Intel® 13th & 12th Gen Processors* |
| 1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode) |
| Ổ cứng hỗ trợ |
Total supports 2 x M.2 slots and 2 x SATA |
| 6Gb/s ports |
| Intel® 13th & 12th Gen Processors |
| M.2_1 slot (Key M), type 2280 (supports |
| PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)*** |
| M.2_2 slot (Key M), type 2242/2260/2280 |
| (supports PCIe 4.0 x4 mode) |
| 2 x SATA 6Gb/s ports**** |
| *** M.2_1 comes from Intel® Z790 Chipset |
| when switched to PCIe 4.0 x4 mode |
| **** Install ROG FPS-II Card to support 2 x |
| SATA 6Gb/s ports. |
| Cổng kết nối (Internal |
Fan and Cooling related |
| 1 x 4-pin CPU Fan header(s) |
| 1 x 4-pin AIO Pump header(s) |
| 1 x 4-pin Chassis Fan header(s) |
| Power related |
| 1 x 24-pin Main Power connector |
| 1 x 8-pin +12V Power connector |
| Storage related |
| 2 x M.2 slots (Key M) |
| USB |
| 1 x USB 3.2 Gen 2x2 connector (support(s) |
| USB Type-C® ) |
| 1 x USB 3.2 Gen 1 header(s) support(s) 2 |
| additional USB 3.2 Gen 1 ports |
| Miscellaneous |
| 1 x Addressable Gen 2 header(s) |
| 1 x Aura RGB header(s) |
| 1 x Thermal Sensor header |
| 2 x USB Type-C® connectors to Install ROG |
| FPS-II card |
| ROG FPS-II card |
| 2 x SATA 6Gb/s ports |
| 1 x CPU Over Voltage jumper |
| 1 x Thermal Sensor header |
| 1 x Front Panel header |
| 1 x Alternative PCIe Mode switch |
| 2 x USB 2.0 header(s) support(s) additional |
| 3 USB 2.0 ports |

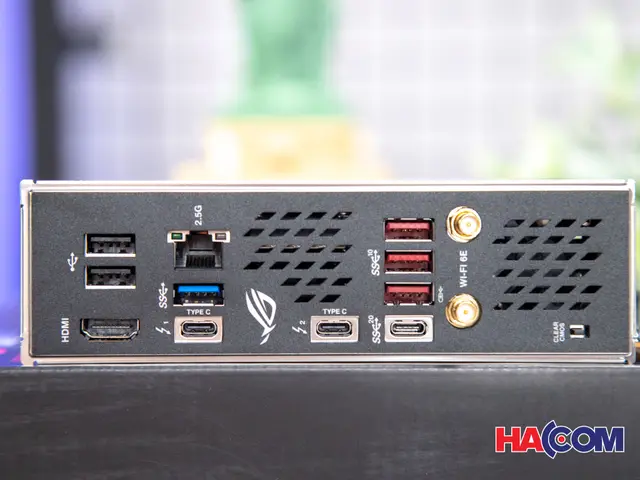

| Cổng kết nối (Back Panel) |
2 x Thunderbolt™ 4 USB Type-C® port(s) |
| 1 x USB 3.2 Gen 2x2 port(s) (1 x USB |
| Type-C®) |
| 3 x USB 3.2 Gen 2 port(s) (3 x Type-A) |
| (supports ROG STRIX HIVE) |
| 1 x USB 3.2 Gen 1 port(s) (1 x Type-A) |
| 2 x USB 2.0 port(s) (2 x Type-A) |
| 1 x HDMI® port |
| 1 x Wi-Fi Module |
| 1 x Intel® 2.5Gb Ethernet port |
| 1 x Clear CMOS button |
| LAN / Wireless |
Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| 1 x Intel® 2.5Gb Ethernet |
| ASUS LANGuard |
| Kích cỡ |
Mini-ITX Form Factor |
| 6.7 inch x 6.7 inch( 17cm x 17cm) |
