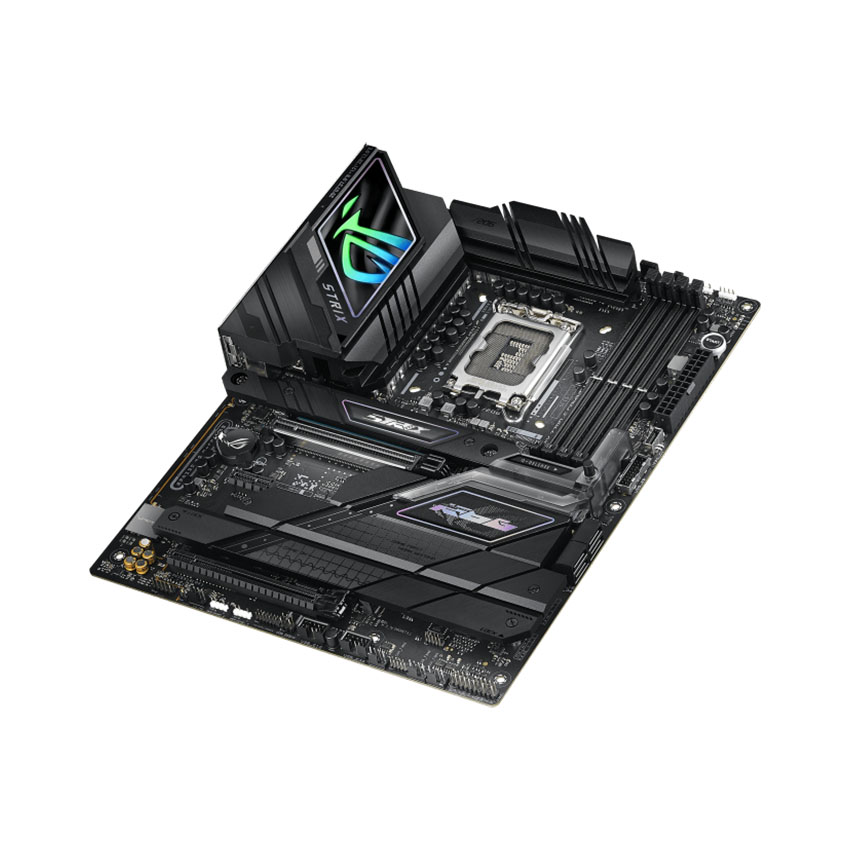

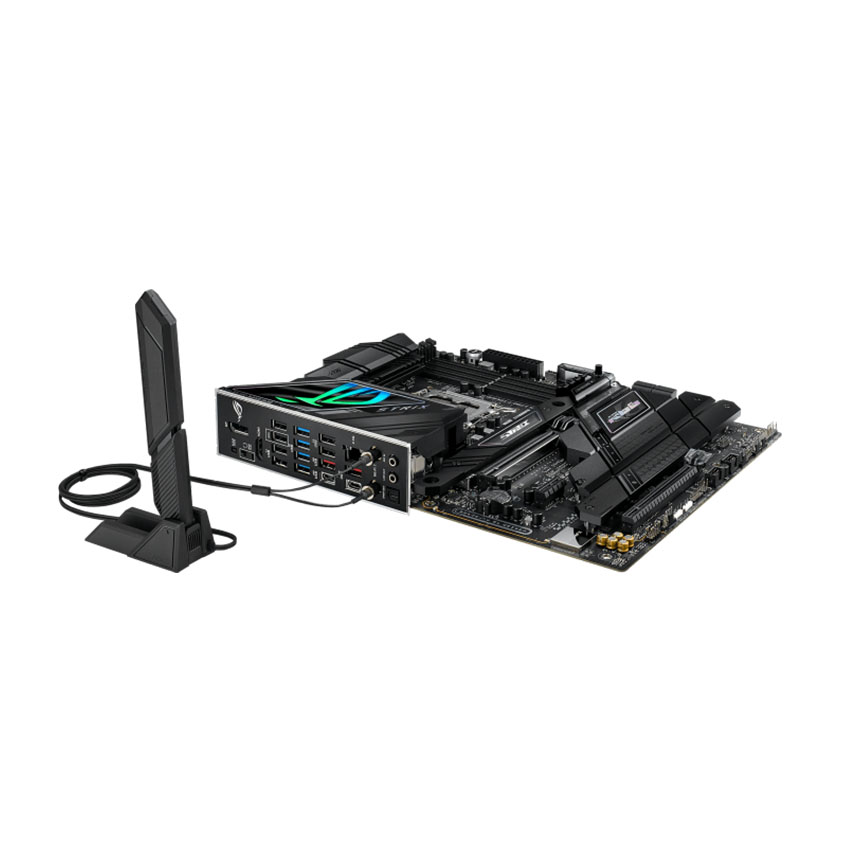

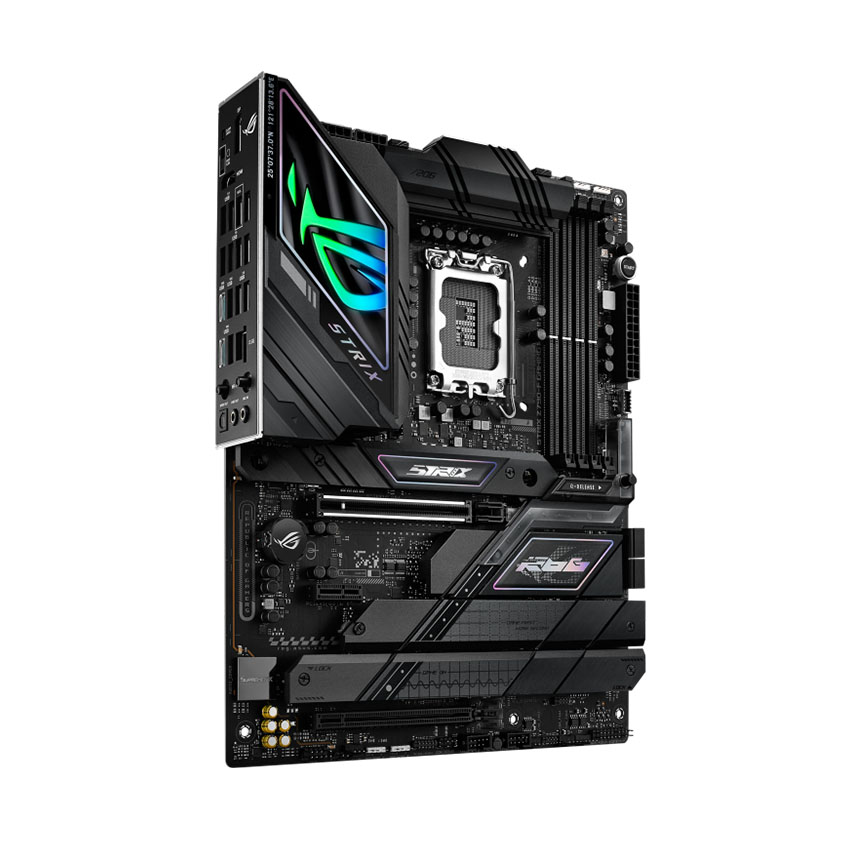

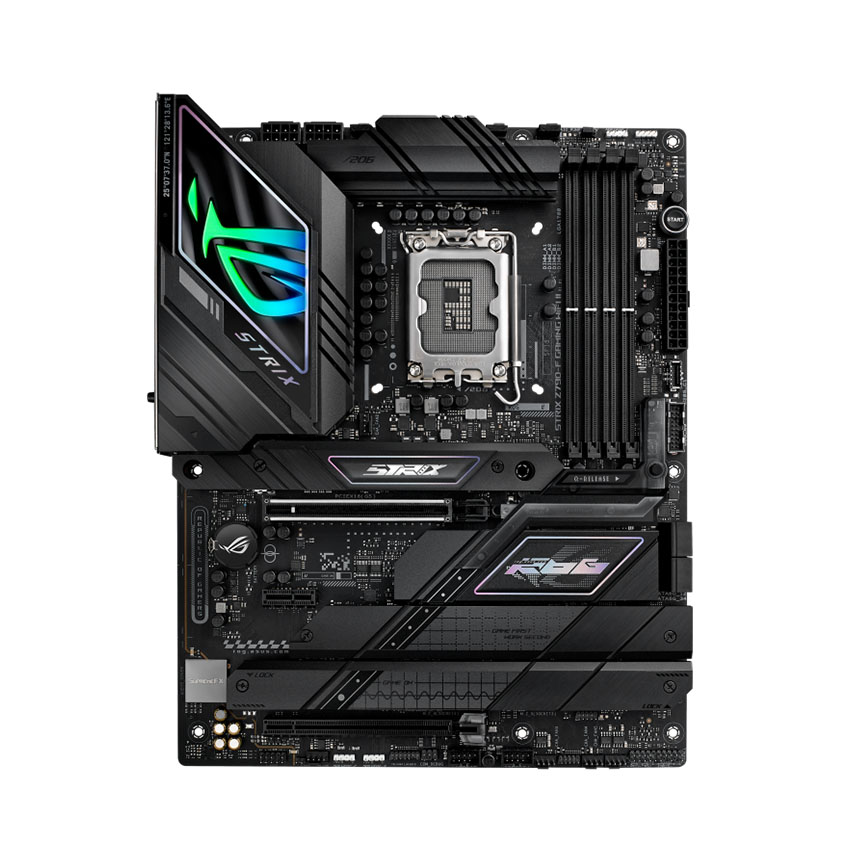

Mainboard ASUS ROG STRIX Z790-F GAMING WIFI II

Intel Core 12th/ 13th/ 14th

Socket LGA1700

• Intel Core 14th & 13th & 12th: 1 x PCIe 5.0 x16 (x16 mode)
• Intel Z690 chipset: 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1

2 x M.2 2242/2260/2280/22110 PCIe 4.0 x4

2 x M.2 2280 PCIe 4.0 x4

1 x M.2 2242/2260/2280 PCIe 4.0 x4/ SATA

4 x SATA III 6Gbps

Support Raid 0, 1, 5, 10

• LAN: Intel 2.5Gb Ethernet
• Wireless: Intel Wi-Fi 7 + BT 5.4

Fan and cooling

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage

5 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD)

1 x USB 5Gbps header supports 2 additional USB 5G ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x Start button

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4®) header

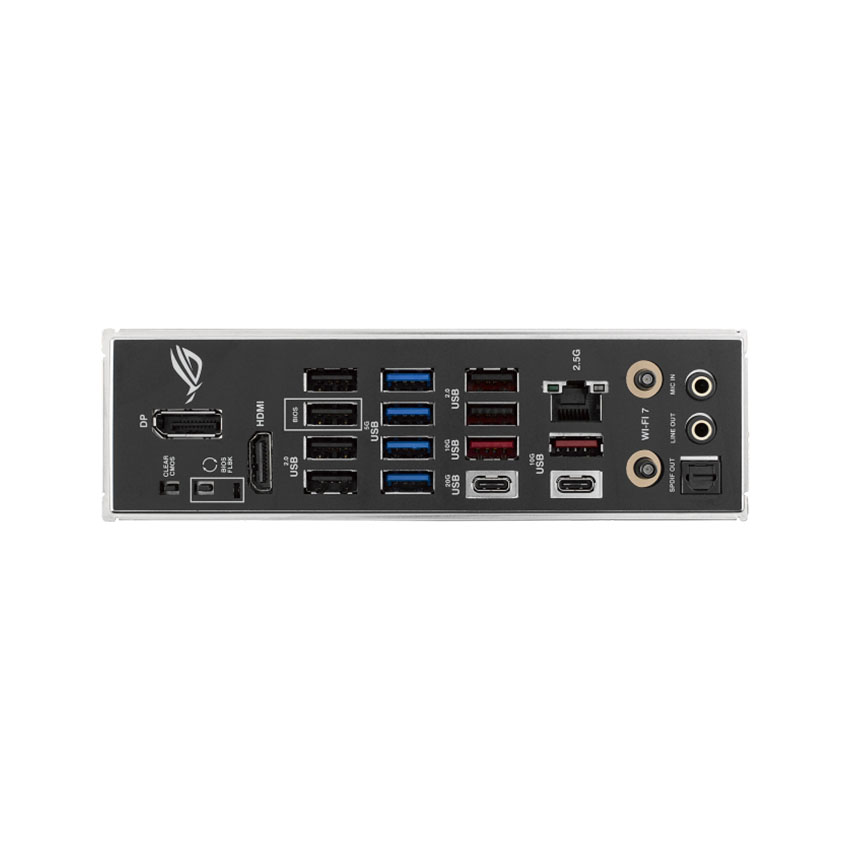

1 x USB 20Gbps Type-C

2 x USB 10Gbps Type-A

1 x USB 10Gbps Type-C

4 x USB 5Gbps Type-A

6 x USB 2.0 Type-A

1 x DisplayPort

1 x HDMITM port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button
