| Sản phẩm |
Bo mạch chủ |
| Tên Hãng |
Asus |
| Model |

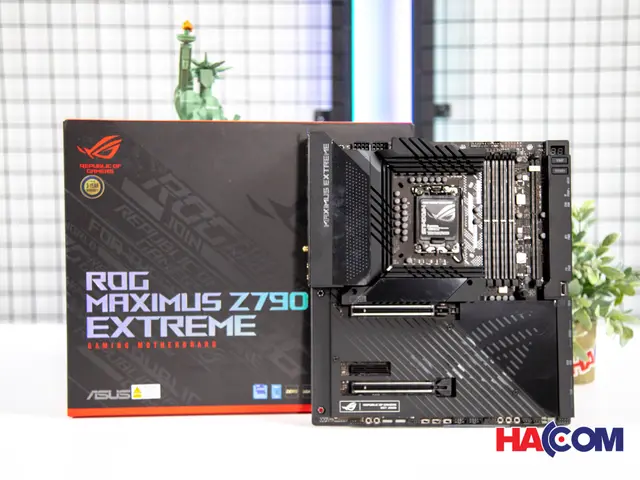

ROG MAXIMUS Z790 EXTREME |

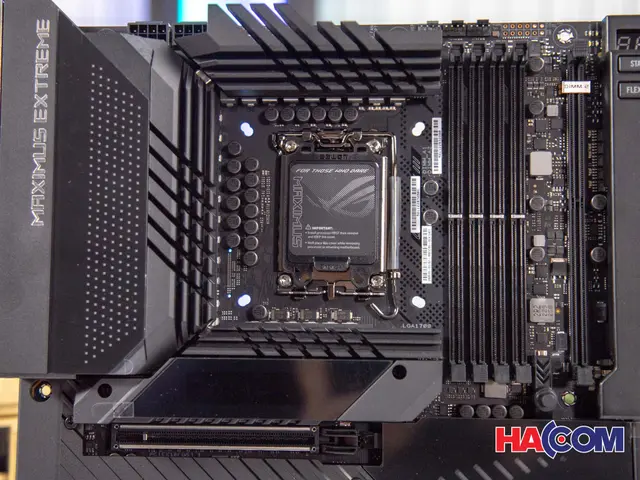

| CPU hỗ trợ |
Intel |
| Chipset |
Intel Z790 Chipset |
| RAM hỗ trợ |
4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
| Khe cắm mở rộng |
Intel® 13th & 12th Gen Processors* |

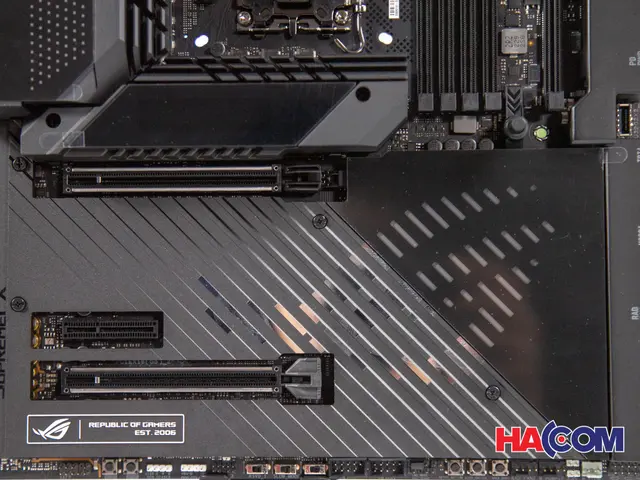

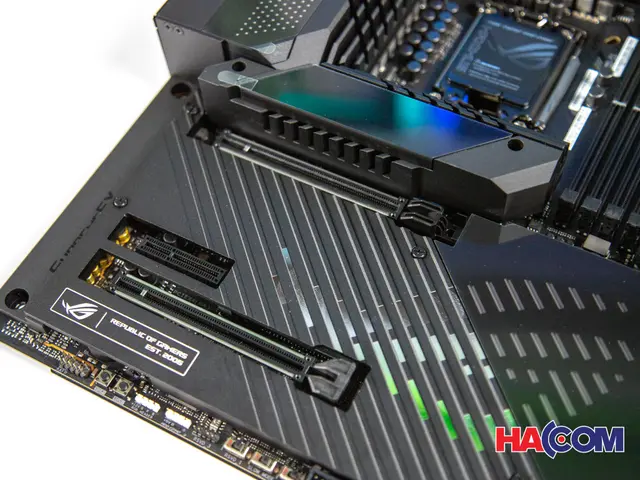

| 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) |
| Intel® Z790 Chipset |
| 1 x PCIe 4.0x4 slot |
| Ổ cứng hỗ trợ |
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports* |
| Intel® 13th & 12th Gen Processors |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** |
| M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Intel® Z790 Chipset |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes) |
| DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |

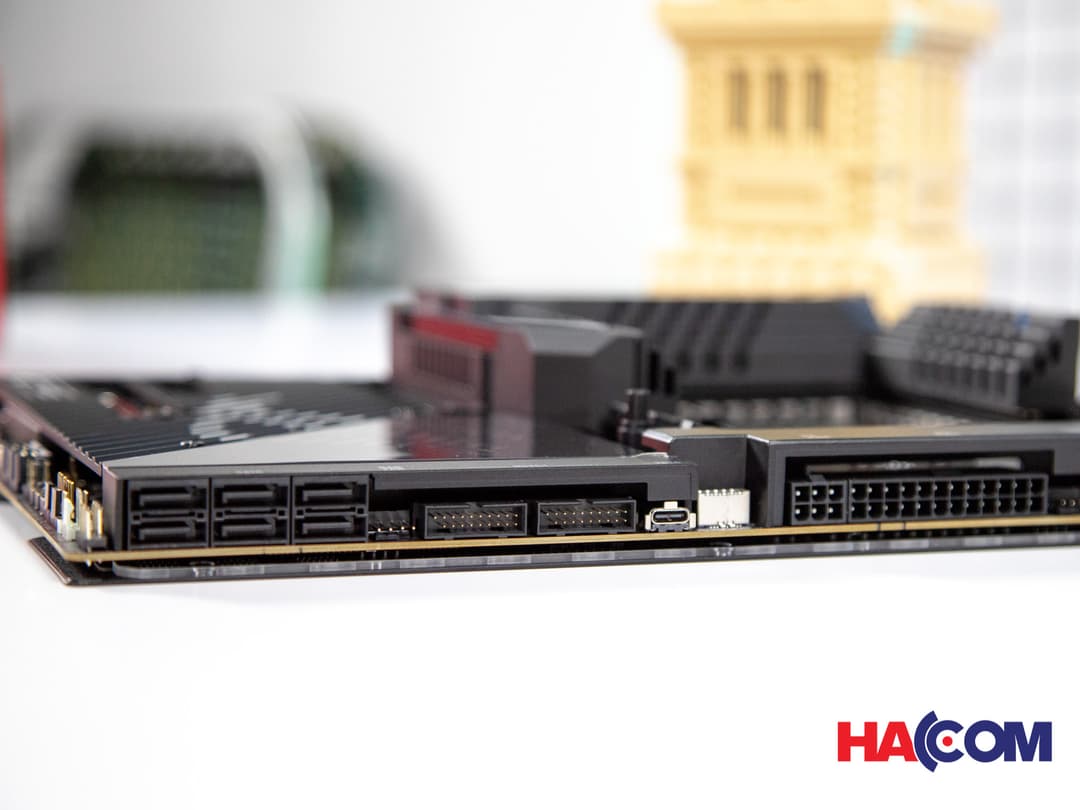

| 6 x SATA 6Gb/s ports |
| Cổng kết nối (Internal |
Fan and Cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 2 x 4-pin Chassis Fan headers |
| 2 x 4-pin Radiator Fan headers |
| 2 x W_PUMP+ headers |
| 1 x WB_SENSOR header |
| 1 x 2-pin Water In header |
| 1 x 2-pin Water Out header |
| 1 x 3-pin Water Flow header |
| Power related |

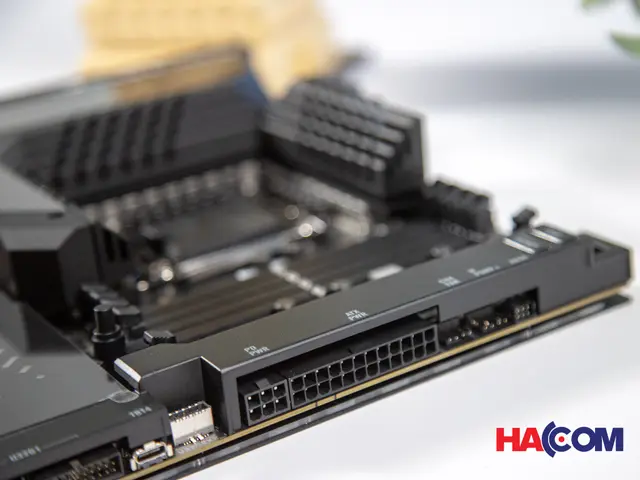

| 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V Power connector |
| 1 x 6-pin PCIe Power connector |
| Storage related |
| 3 x M.2 slots (Key M) |
| 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) |
| 6 x SATA 6Gb/s ports |
| USB |
| 1 x Thunderbolt™ 4 USB Type-C® port |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous |
| 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers |
| 1 x Addressable Gen 2 header |
| 1 x Aura RGB header |
| 2 x BCLK button |
| 1 x BIOS Switch button |
| 1 x FlexKey button |
| 1 x Front Panel Audio header (AAFP) |
| 1 x LN2 Mode jumper |
| 1 x Osc sense header |
| 12 x ProbeIt Measurement Points |
| 1 x ReTry button |
| 1 x RSVD switch |
| 1 x RSVD header |
| 1 x Safe Boot button |
| 1 x Slow Mode switch |
| 1 x Start button |
| 1 x V_Latch switch |
| 1 x 10-1 pin System Panel header |
| 1 x Thermal Sensor header |

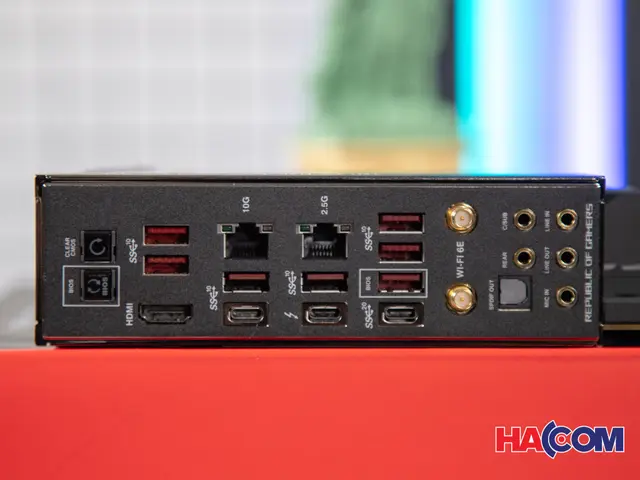

| Cổng kết nối (Back Panel) |
1 x Thunderbolt™ 4 USB Type-C® port |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) |
| 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) |
| 1 x HDMI® port |
| 1 x Wi-Fi Module |
| 1 x Intel® 2.5Gb Ethernet port |
| 1 x Marvell® AQtion 10Gb Ethernet port |
| 5 x LED-illuminated audio jacks |
| 1 x Optical S/PDIF out port |
| 1 x BIOS FlashBack™ button |
| 1 x Clear CMOS button |
| LAN / Wireless |
1 x Intel® 2.5Gb Ethernet |
| 1 x Marvell® AQtion 10Gb Ethernet |
| ASUS LANGuard |

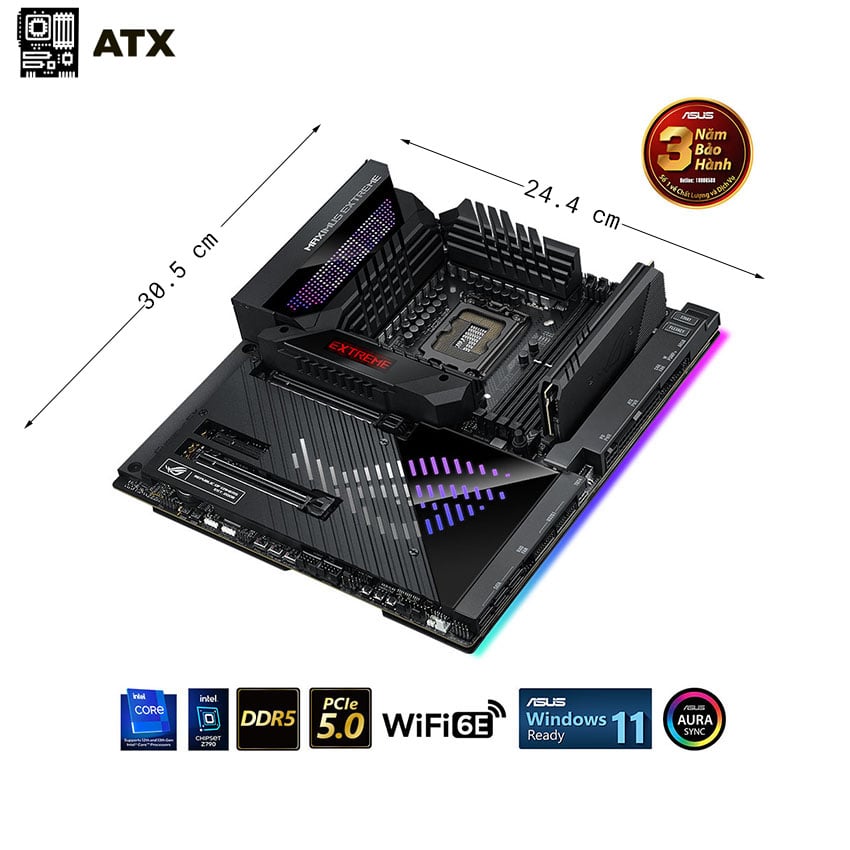

| Kích cỡ |
E-ATX Form Factor |
| 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
