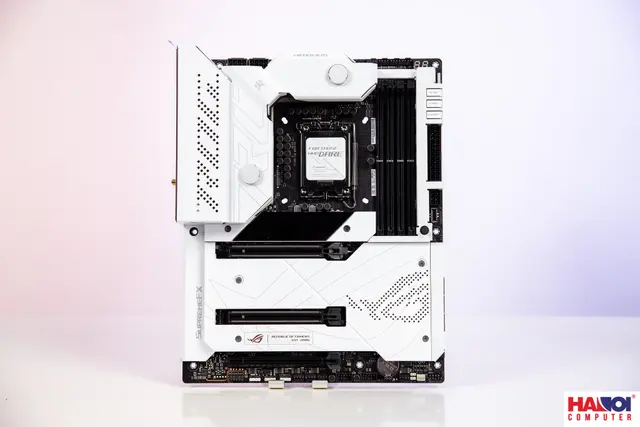

ASUS ROG MAXIMUS Z690 FORMULA là một trong những bo mạch chủ Z690 cao cấp nhất của Asus, được tích hợp sẵn block tản nhiệt nước cho VRM. Đây là bo mạch chủ chuyên dụng cho các hệ thống Gaming, Workstation hạng nặng, hướng đến hiệu năng cao nhất có thể.
Là bo mạch chủ cao cấp và toàn diện, ASUS ROG MAXIMUS Z690 FORMULA được trang bị những tính năng & linh kiện cao cấp nhất trong ngành:
| CPU |

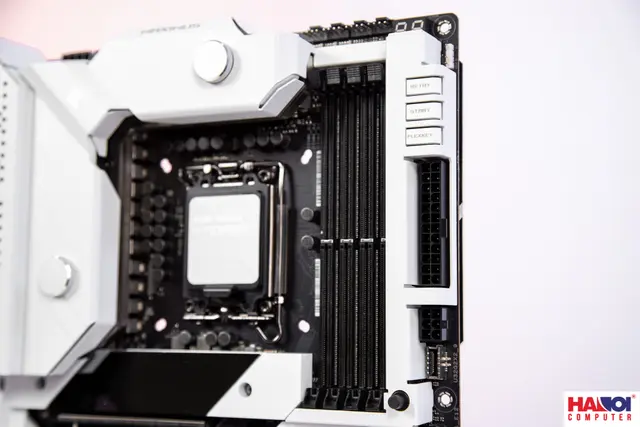

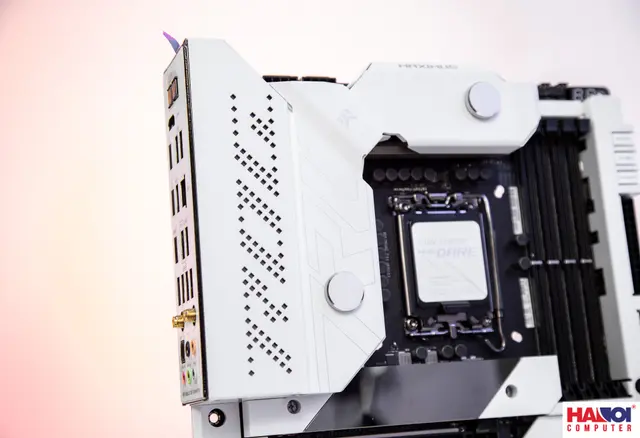

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
Refer to www.asus.com for CPU support list.
|
| Chipset | Intel® Z690 Chipset |
| Memory |
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
|
| Graphics |
1 x HDMI® port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs***
|

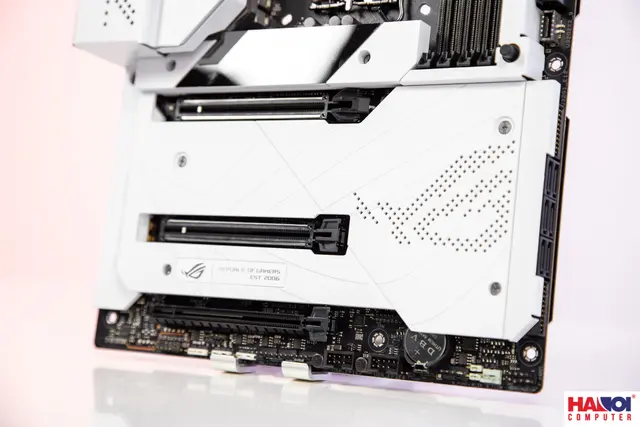

| Expansion Slots |
Intel® 12th Gen Processors*
2 x PCIe 5.0 x16 slot(s) (supports x16 or x8/x8 mode(s))**
Intel® Z690 Chipset***
1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)***
|
| Storage |
Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110***
- Intel® 12th Gen processors support PCIe 5.0 x4 mode
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)***
Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)****
6 x SATA 6Gb/s ports*****
|
| Ethernet |
1 x Marvell® 10Gb Ethernet
ASUS LANGuard
|
| Wireless & Bluetooth |
Intel® Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
|
| USB |
Rear USB:Total 12 ports
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®)
7 x USB 3.2 Gen 2 port(s) (6 x Type-A + 1 x USB Type-C®)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB:Total 9 ports
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
|
| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- ESS® SABRE9018Q2C DAC/AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
|

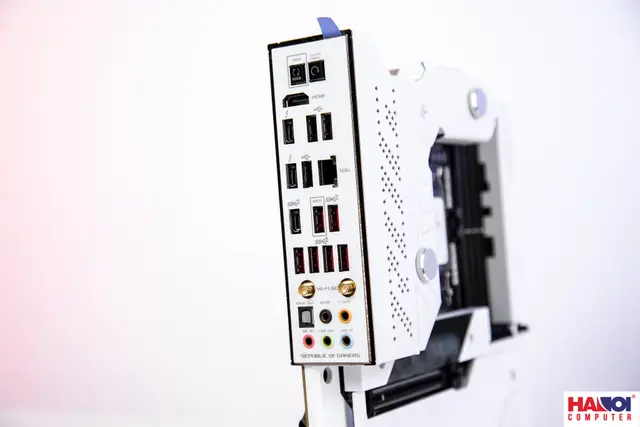

| Back Panel I/O Ports |
2 x Thunderbolt™ 4 USB Type-C® port(s)
7 x USB 3.2 Gen 2 port(s) (6 x Type-A + 1 x USB Type-C®)
3 x USB 2.0 port(s) (3 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
|
| Intrernal I/O Connectors |
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
1 x W_PUMP+ header(s)
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x FlexKey button
1 x 12-1 pin Front Panel Audio header (AAFP)
1 x ReTry button
1 x SPI TPM header (14-1pin)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
|
| Special Features |
Extreme OC Kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- CrossChill EK III
- M.2 heatsink backplate
- M.2 heatsinks

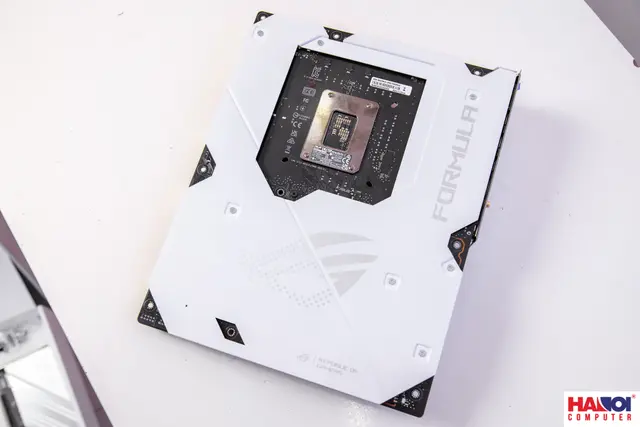

- Steel backplate
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
OLED 2"
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
- Support: up to 60W charging*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W
ASUS HYDRANODE
- 1 x 12-1 pin Front Panel Audio header (AAFP)
- 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P)
* Visit ASUS Website for the latest compatibility list.
|
| Software Features |
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
- Easy Optimization with AI Overclocking
TPU
EPU
DIGI+ Power Control
Turbo app
MyAsus
WinRAR
WEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |

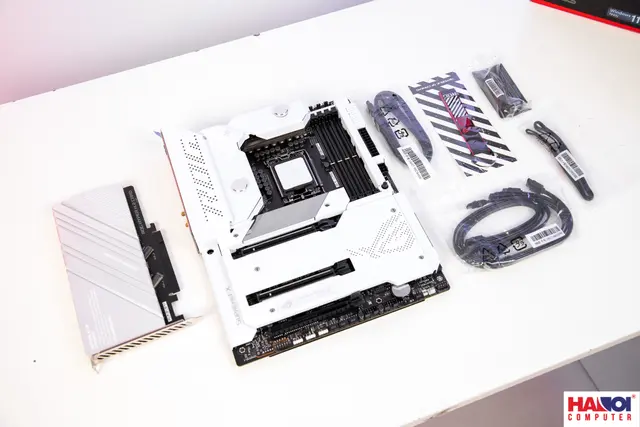

| Accessories |
Cables
1 x ARGB RGB extension cable
1 x RGB extension cable
2 x ROG weave SATA 6G cables
4 x SATA 6Gb/s cables
ROG Hyper M.2 Card
1 x ROG Hyper M.2 Card
2 x M.2 screw package for ROG Hyper M.2 Card
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x M.2 Rubber Package(s)
1 x Q-connector
1 x M.2 Q-Latch package(s)
2 x M.2 Q-Latch packages for M.2 backplate
1 x ROG key chain
1 x ROG stickers
1 x ROG thank you card
1 x ROG Graphic card holder
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x User guide
|
| Form Factor |
ATX
30.5cm x 24.4cm
|
