Mainboard ASUS ROG MAXIMUS Z690 EXTREME GLACIAL (Intel Z690, Socket 1700, ATX, 4 khe RAM DDR5)

Mã SP: MBAS678
Đánh giá:
1
Bình luận: 3
Lượt xem: 19175
Thông số sản phẩm
  • Chipset: Intel Z690
  • Socket: LGA 1700
  • Số khe RAM: 4 (DDR4)
  • Kích thước: E-ATX
  • Tích hợp sẵn Wifi & Bluetooth
Xem đầy đủ
45.999.000₫
Ưu đãi trả góp 0%
Giá đã có VAT
Bảo hành 36 Tháng
Quà tặng và ưu đãi kèm theo

Cam kết giá tốt nhất thị trường, liên hệ 19001903 hoặc đến tận nơi để có giá tốt nhất!

Liên hệ mua hàng

KD Chi Nhánh Đống Đa 0968391551 / 0986650460 / 0862014768

KD Chi nhánh Hai Bà Trưng: 0914169845

KD Chi Nhánh Hà Đông 2: 0911450995

KD Chi nhánh Long Biên: 0862014768

KD Chi nhánh Hà Đông 1: 0981650022

KD Dự án - Doanh nghiệp: 0964110606

Hỗ trợ kỹ thuật: 0862013066

💥 Bảng giá dịch vụ lắp đặt camera

ĐĂNG KÝ NHẬN THÔNG TIN KHI CÓ HÀNG
khách hàng đã đăng ký
Họ tên Số điện thoại Thời gian đăng ký
THÔNG TIN KHO HÀNG
- Liên hệ 1900.1903 để mua hàng
MIỄN PHÍ GIAO HÀNG
  • Giao hàng miễn phí toàn quốc
  • Nhận hàng và thanh toán tại nhà (ship COD)

Đánh giá: Mainboard ASUS ROG MAXIMUS Z690 EXTREME GLACIAL (Intel Z690, Socket 1700, ATX, 4 khe RAM DDR5)

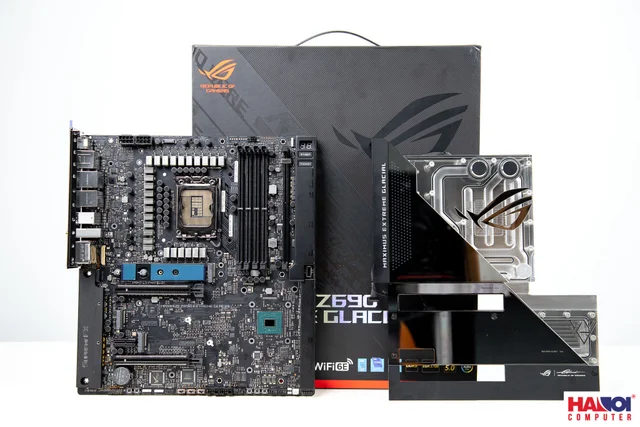

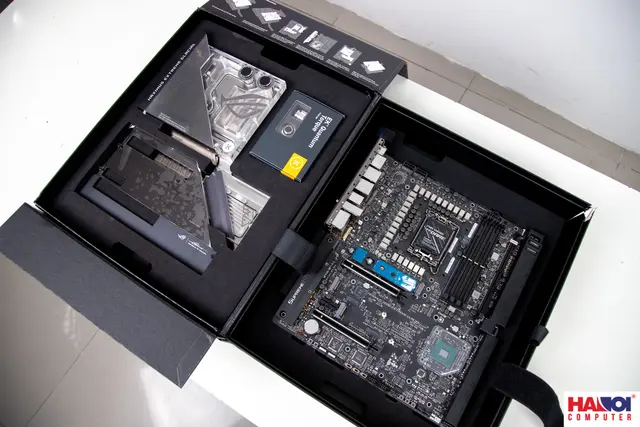

ASUS ROG MAXIMUS Z690 EXTREME GLACIAL là phiên bản bo mạch chủ Z690 cao cấp nhất của Asus, được tích hợp sẵn block tản nhiệt nước từ thương hiệu hàng đầu EK. Đây là bo mạch chủ chuyên dụng cho các hệ thống Gaming, Workstation hạng nặng, hướng đến hiệu năng cao nhất có thể.

Mainboard ASUS ROG MAXIMUS Z690 EXTREME GLACIAL

Thiết kế

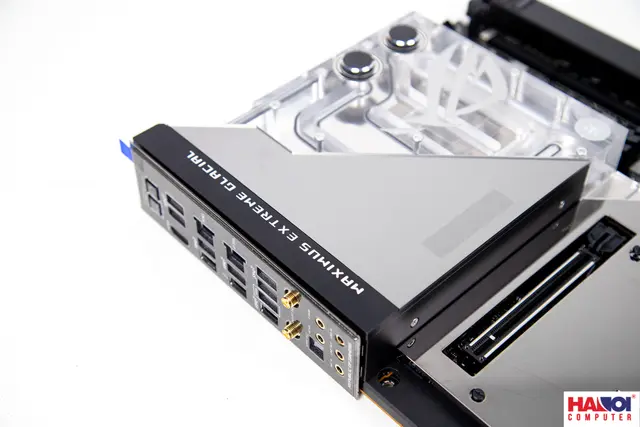

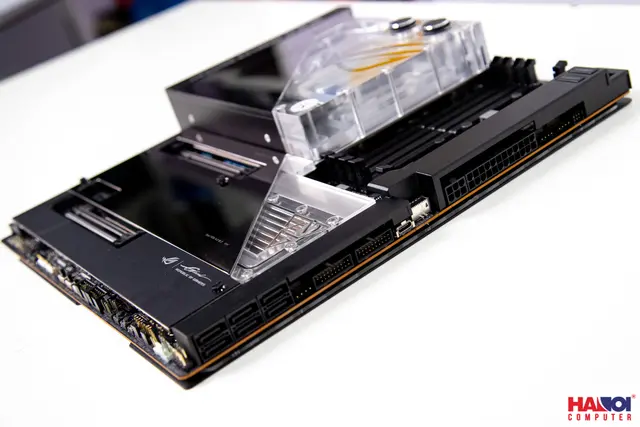

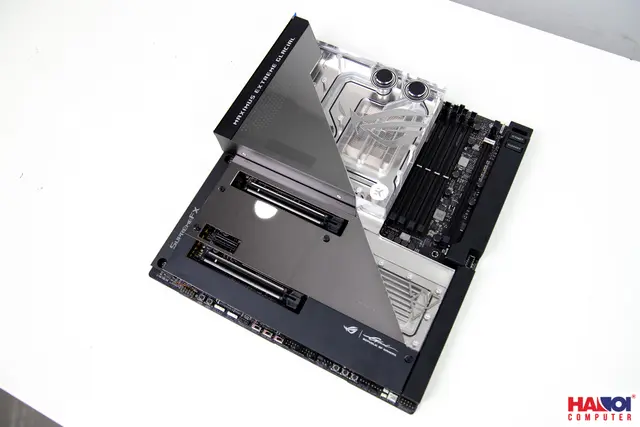

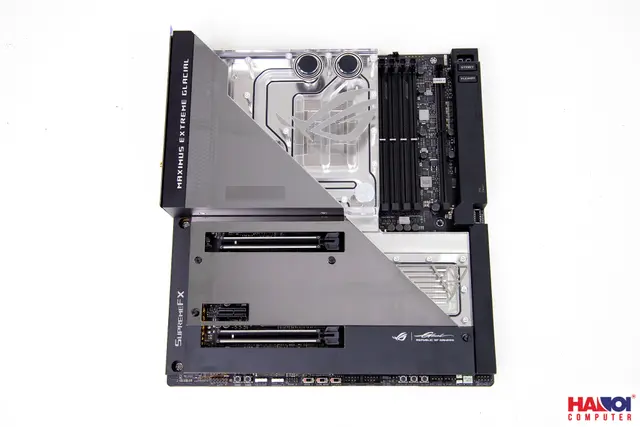

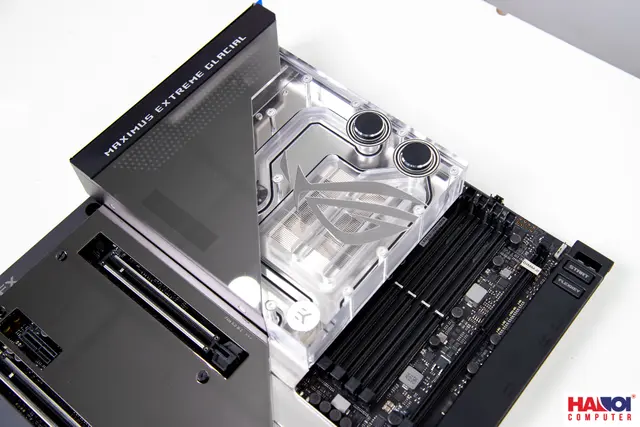

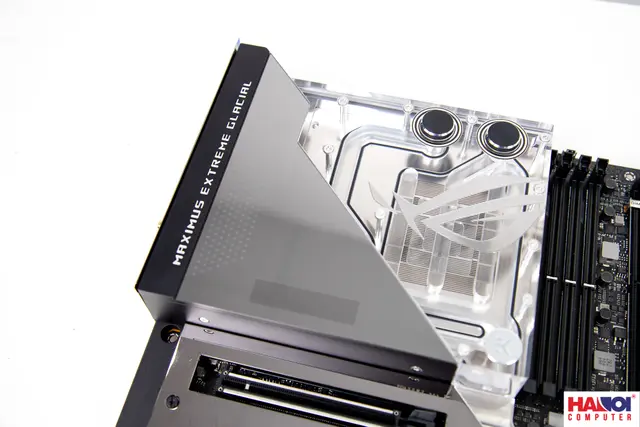

  • ASUS ROG MAXIMUS Z690 EXTREME GLACIAL sở hữu thiết kế trên nền tảng kích thước E-ATX với ngoại hình cực kỳ hầm hố, nổi bật nhất là khối block nước EK cao cấp bao phủ gần như toàn bộ bề mặt mainboard.

Mainboard ASUS ROG MAXIMUS Z690 EXTREME GLACIAL

  • Ở mặt sau, Asus cũng trang bị cả 1 lớp giáp bằng kim loại, bảo vệ toàn diện cho mainboard khỏi các tác động vật lý.
  • Phần PCB được cấu thành từ nhiều lớp với rất nhiều đồng (Cu) - giúp truyền dẫn tín hiệu và hỗ trợ khả năng tản nhiệt cho các linh kiện.

Mainboard ASUS ROG MAXIMUS Z690 EXTREME GLACIAL

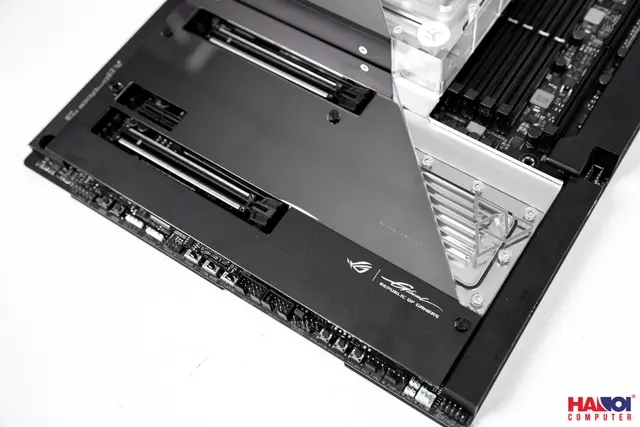

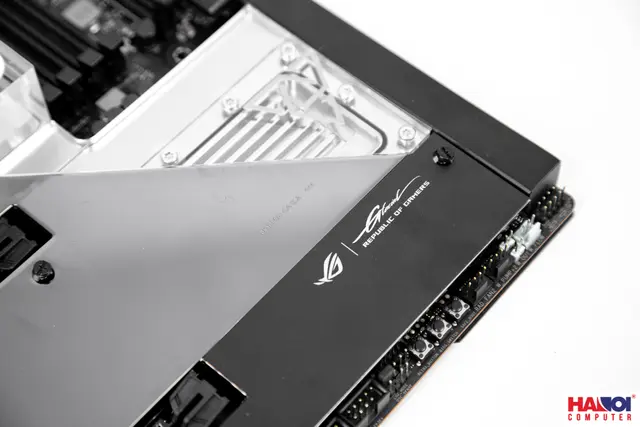

  • Khe RAM, khe PCI-E đều được bọc thép gia cường, tăng độ bền và sự cao cấp cho sản phẩm

Mainboard ASUS ROG MAXIMUS Z690 EXTREME GLACIAL

Trang bị

Là bo mạch chủ cao cấp và toàn diện, ASUS ROG MAXIMUS Z690 EXTREME GLACIAL được trang bị những tính năng & linh kiện cao cấp nhất trong ngành:

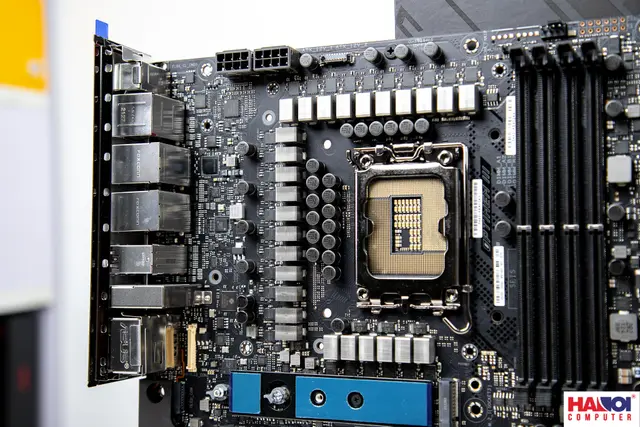

  • 24 + 1 phase nguồn cấp điện cho CPU (105A): Đảm bảo cho mọi nhu cầu của người dùng từ cơ bản đến Overclocking ở mức khắt khe nhất

Mainboard ASUS ROG MAXIMUS Z690 EXTREME GLACIAL

  • 5 khe M.2 PCI-e, trong đó có 1 khe hỗ trợ chuẩn PCI-e 5.0 mới nhất

Mainboard ASUS ROG MAXIMUS Z690 EXTREME GLACIAL

  • Wifi 6E, Lan AQtion 10Gb

Mainboard ASUS ROG MAXIMUS Z690 EXTREME GLACIAL

  • AniMe Matrix™ LED display, LiveDash OLED: Hiển thị thông tin qua màn hình tích hợp sẵn trên bo mạch chủ

Mainboard ASUS ROG MAXIMUS Z690 EXTREME GLACIAL

  • 4 khe RAM DDR5: Tối đa 128GB

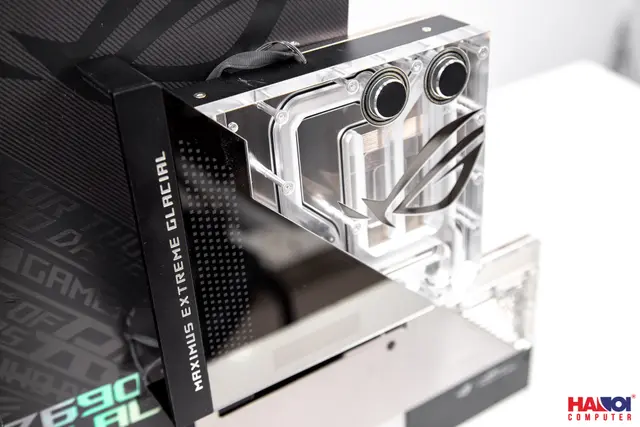

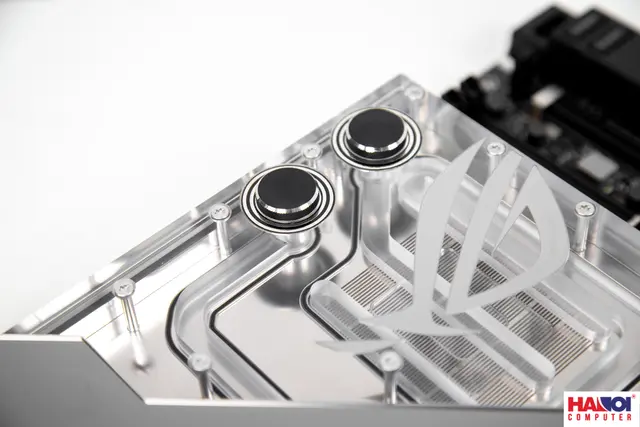

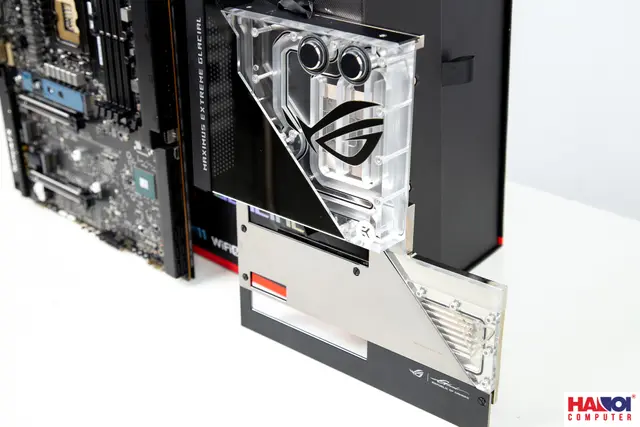

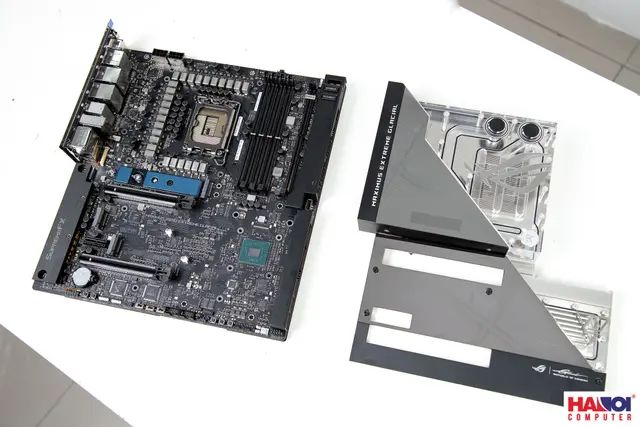

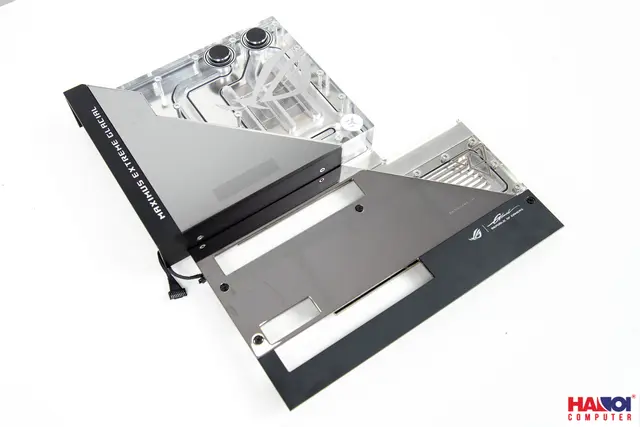

  • Block nước cho CPU, VRM, Chipset đến từ thương hiệu nổi tiếng EK

Mainboard ASUS ROG MAXIMUS Z690 EXTREME GLACIAL

Tính năng

  • ASUS ROG MAXIMUS Z690 EXTREME GLACIAL sở hữu hệ thống chân cắm ARGB 2.0 cho phép chủ nhân điều khiển đến từng bóng LED của bất kỳ thiết bị kết nối nào có hỗ trợ
  • Tích hợp trí tuệ nhân tạo: AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation
  • Q-release: Gỡ nhanh khe PCI-E để dễ dàng tháo lắp, nâng cấp card đồ họa

Mainboard ASUS ROG MAXIMUS Z690 EXTREME GLACIAL

  • Asus Amoury Crate: Tổ hợp phần mềm giúp người dùng kiểm soát toàn bộ hệ thống 1 cách trực quan (điều khiển LED, tốc độ quạt, theo dõi thông số hệ thống,...)

Mainboard ASUS ROG MAXIMUS Z690 EXTREME GLACIAL

Khách hàng chấm điểm, đánh giá, nhận xét

5/5
5
1 đánh giá
4
0 đánh giá
3
0 đánh giá
2
0 đánh giá
1
0 đánh giá
Chia sẻ nhận xét về sản phẩm Viết nhận xét của bạn

Thông số kỹ thuật

CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset Z690
Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem III

Graphics

Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

***Support 4K@60Hz as specified in HDMI® 2.1.

Expansion Slots

Intel® 12th Gen Processors*

2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**

Intel® Z690 Chipset***

1 x PCIe 3.0 x1 slot

Storage
Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports

Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110***

- Intel® 12th Gen processors support PCIe 5.0 x4 mode.

M.2_2 slot (Key M), type 2280

- Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® Z690 Chipset**

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)

DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

6 x SATA 6Gb/s ports****

Ethernet
1 x Intel® 2.5Gb Ethernet
1 x Marvell® 10Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Intel® Wi-Fi 6E
USB
Rear USB:Total 10 ports

1 x Thunderbolt™ 4 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)

1 x Thunderbolt™ 4 connector (1 x USB Type-C®)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

- ESS® SABRE9018Q2C DAC/AMP

- LED-illuminated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

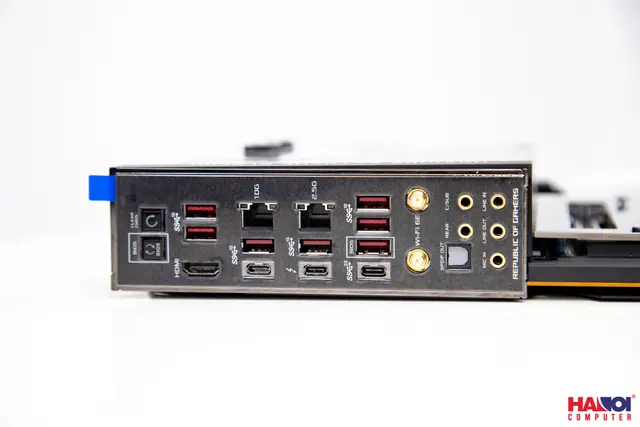

Back Panel I/O Ports

1 x Thunderbolt™ 4 USB Type-C® port

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)

1 x HDMI® port

1 x ASUS Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

1 x Marvell® AQtion 10Gb Ethernet port

5 x LED-illuminated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Intrernal I/O Connectors

Fan and Cooling related

2 x 4-pin Chassis Fan headers

2 x 4-pin Radiator Fan headers

2 x W_PUMP+ headers

1 x WB_SENSOR header

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Graphics Card connector

Storage related

3 x M.2 slots (Key M)

1 x DIMM.2 slot supports 2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x Intel® Thunderbolt™ 4 port (USB Type-C®)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers

1 x Addressable Gen 2 header

1 x AURA RGB header

1 x WB_ADD header

1 x BIOS Switch button

2 x BCLK button

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x LN2 Mode jumper

1 x Osc sence header

12 x ProbeIt Measurement Points

1 x ReTry button

1 x RSVD switch

1 x RSVD header

1 x Safe Boot button

1 x Slow Mode switch

1 x Start button

1 x V_Latch switch

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

Special Features

Extreme OC Kit

- FlexKey button

- LN2 Mode

- Probelt

- ReTry button

- Safe boot button

- Start button

- Slow Mode

Extreme Engine Digi+

- 10K Black Metallic Capacitors

- MicroFine Alloy Choke

ASUS Q-Design

- M.2 Q-Latch

- Q-Code

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- Steel backplate

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- ROG AURA sync backplate

- AURA RGB header(s)

- Addressable Gen 2 header(s)

Dual BIOS

OLED 2"

Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support

- Support: up to 60W charging*

- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS

* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W

ASUS HYDRANODE

- 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P)

* Visit ASUS Website for the latest compatibility list.

Software Features

ROG Exclusive Software

- GameFirst VI

- ROG CPU-Z

- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

- Sonic Radar III

- DTS® Sound Unbound

- BullGuard Internet Security (1-year full version)

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (1 year full version)

- AURA Creator

- AURA Sync

- Fan Xpert 4

- Two-Way AI Noise Cancelation

- OLED Display

- AniMe MatrixTM LED Display

AI Suite 3

- Easy Optimization with AI Overclocking

TPU

EPU

DIGI+ Power Control

Turbo app

MyAsus

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

MemTest86

BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
Accessories

Cables

1 x 1-to-3 ARGB splitter cable

1 x 1-to-2 ARGB splitter cable

2 x 1-to-4 fan splitter cables

1 x RGB extension cable

3 x ROG weave SATA 6G cables

1 x 3-in-1 Thermistor cables pack

ROG Fan Controller

1 x ROG Fan Controller

1 x Fan EXT PWR cable

1 x ARGB input cable

1 x USB input cable

1 x ROG Fan Controller 3M Mounting tape

1 x Fan Controller manual

ROG DIMM.2 with Heatsink

1 x ROG DIMM.2 with heatsink

1 x M.2 pad for ROG DIMM.2

2 x M.2 screw package for ROG DIMM.2

Additional Cooling Kit

1 x Monoblock

3 x Screw package for monoblock

1 x Thermal pad for monoblock

1 x Fittings for monoblock

1 x M.2 heatsink

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x M.2 SSD screw package

1 x Q-connector

1 x ROG CLAVIS DAC

1 x ROG graphics card holder

1 x ROG key chain

1 x ROG logo plate stickers

1 x ROG screwdriver

1 x ROG stickers

1 x ROG thank you card

Installation Media

1 x USB drive with utilities and drivers

Documentation

1 x User guide

Form Factor
EATX
30.5cm x 27.7cm
