Hình ảnh và video sản phẩm
Giá mua online: 9.499.000 VND
Giá mua trả góp (6 tháng): 1.583.167 VND / tháng
Trả góp qua thẻ VISA (12 tháng): 791.584 VND / tháng
Giá đã bao gồm VAT
Thông số nổi bật
- Ready for Ryzen™: Latest AMD socketTR4 for Threadripper™ processors.
- 5-Way Optimization: One-click, system-wide tuning, delivering optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks.
- Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI.
Thông số kỹ thuật
| CPU | AMD Socket TR4 for AMD Ryzen™ Threadripper™ Processors |
| Chipset | AMD X399 |
| Bộ nhớ | AMD Ryzen™ Threadripper™ Processors 8 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
| Hỗ trợ Multi-GPU | Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 3-Way SLI™ Technology Supports NVIDIA® 2-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology Supports AMD 2-Way CrossFireX Technology |
| khe cắm mở rộng | AMD Ryzen™ Threadripper™ Processors 4 x PCIe 3.0 x16 (single@x16, dual@x16/x16, triple@x16/x16/x8 mode) AMD X399 chipset 1 x PCIe 2.0 x4 (max at x4 mode) 1 x PCIe 2.0 x1 |
| Lưu trữ | AMD Ryzen™ Threadripper™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x U.2 port AMD X399 chipset : 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN | Intel® I211-AT ASUS Turbo LAN Utility ASUS LAN Guard |
| Am thanh | Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB (Line-out at rear) and 113 dB SNR recording input (Line-in) Audio Feature : - DTS Connect - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - EMI protection cover to prevent electrical noise to affect the amplifier quality Separate layer for left and right track, ensuring both sound deliver equal quality |
| cổng USB | AMD Ryzen™ Threadripper™ Processors : 8 x USB 3.1 Gen 1 port(s) (8 at back panel, , Type-A) AMD X399 chipset : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board) AMD X399 chipset : 4 x USB 3.1 Gen 1 port(s) (4 at mid-board) AMD X399 chipset : 4 x USB 2.0 port(s) (4 at mid-board) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM) |
| Tính năng đặc biệt | OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - USB BIOS Flashback - AI Suite 3 - Ai Charger - Onboard Button : Power - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN - Crystal Sound 3 - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Design Heat-pipe solution - Stylish Fanless Design with M.2 Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) |
| Operating System Support | Windows® 10 , 64bit |

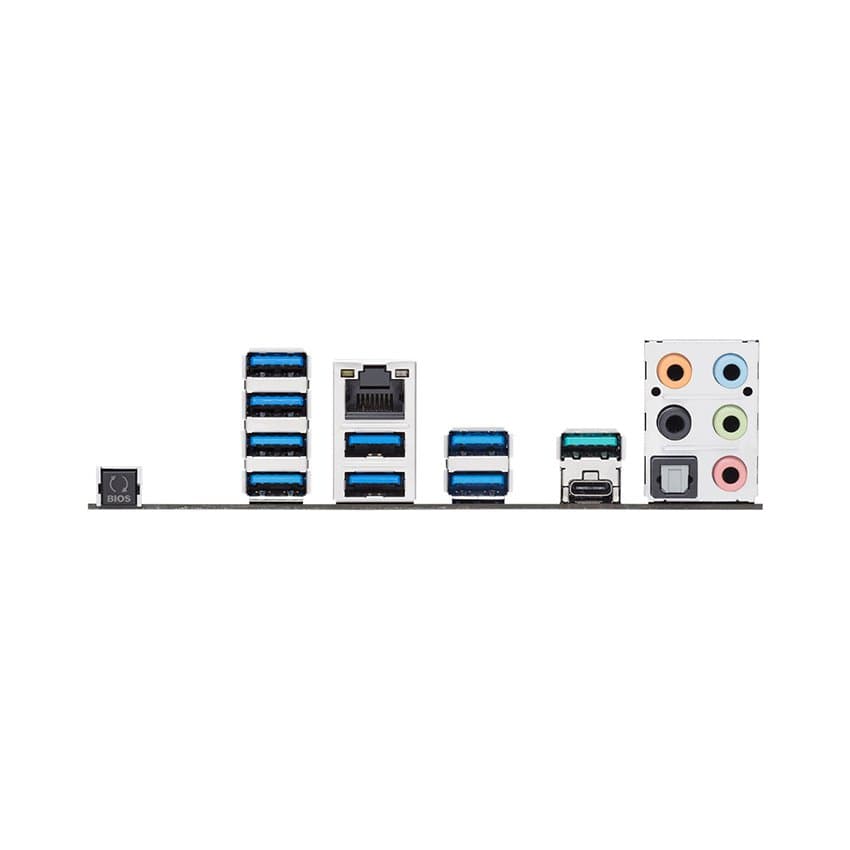

| Cổng I / O phía sau | 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue)Type-A + USB Type-CTM 8 x USB 3.1 Gen 1 (blue) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback Button(s) |
| Cổng I/O ở trong | 1 x 3-pin Cover fan (COV_FAN) connector 1 x Q_Code 1 x U.2 port 2 x RGB Header(s) 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS button(s) 1 x USB 3.1 Gen 2 front panel connector |

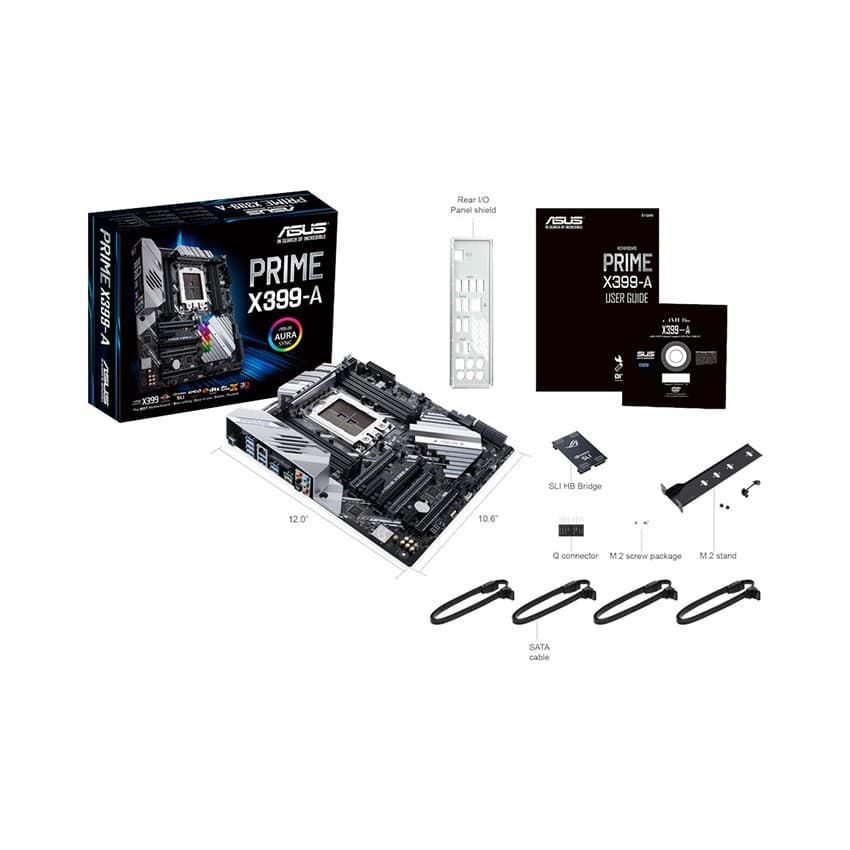

| Phụ kiện | User's manual ASUS Q-Shield 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-Connector |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Form Factor | Extended ATX Form Factor 12 inch x 10.6 inch ( 30.5 cm x 26.9 cm ) |
Mô tả sản phẩm

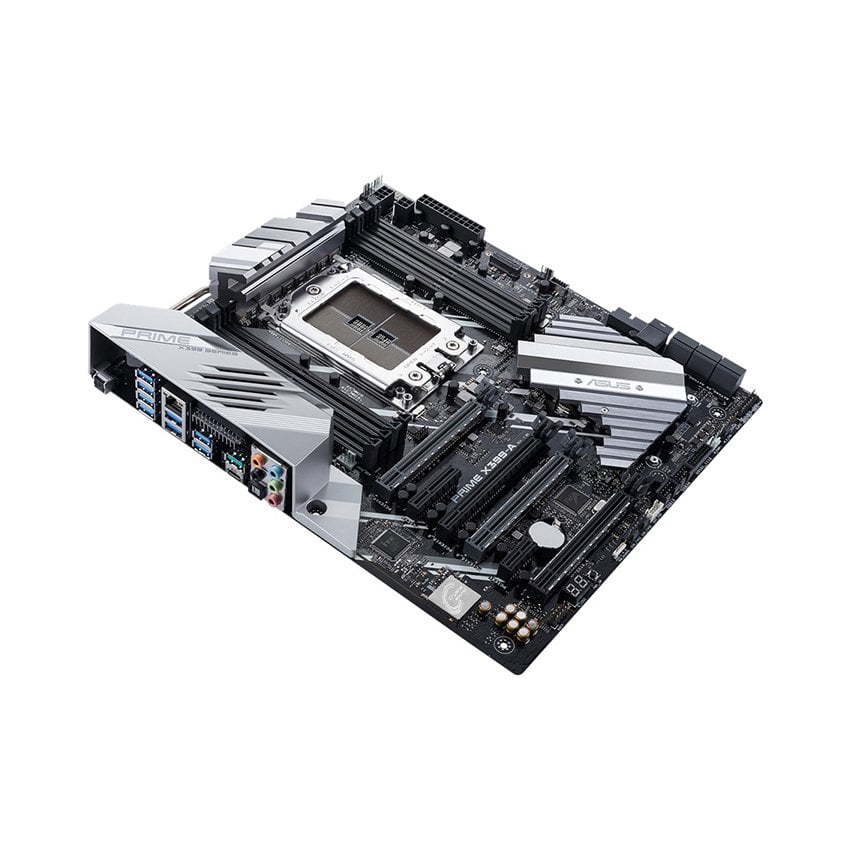

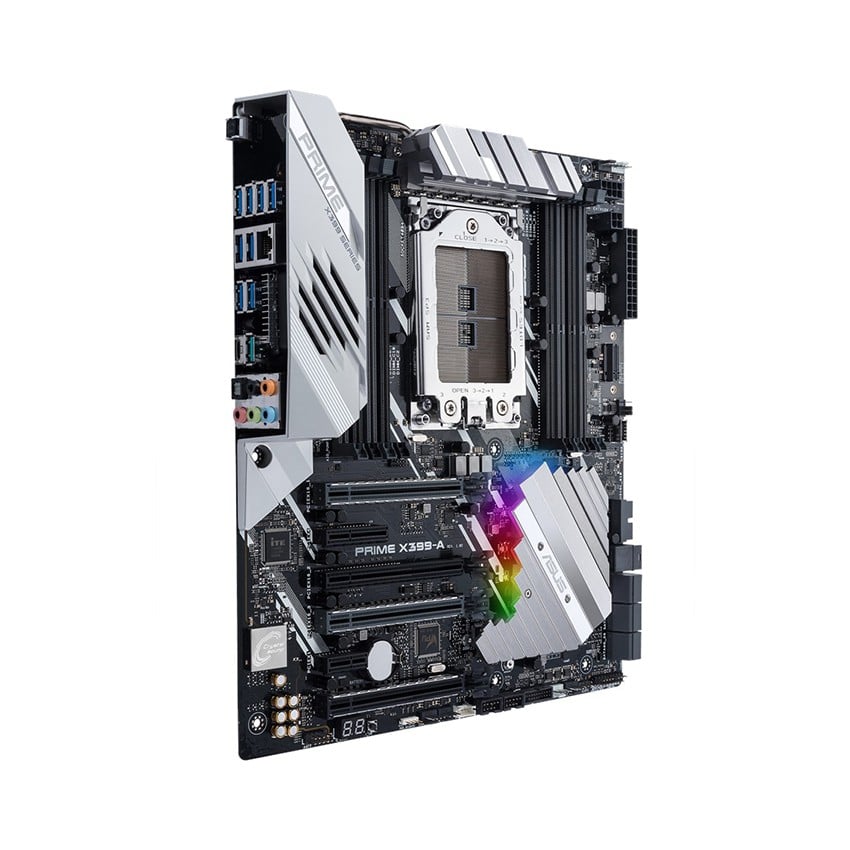

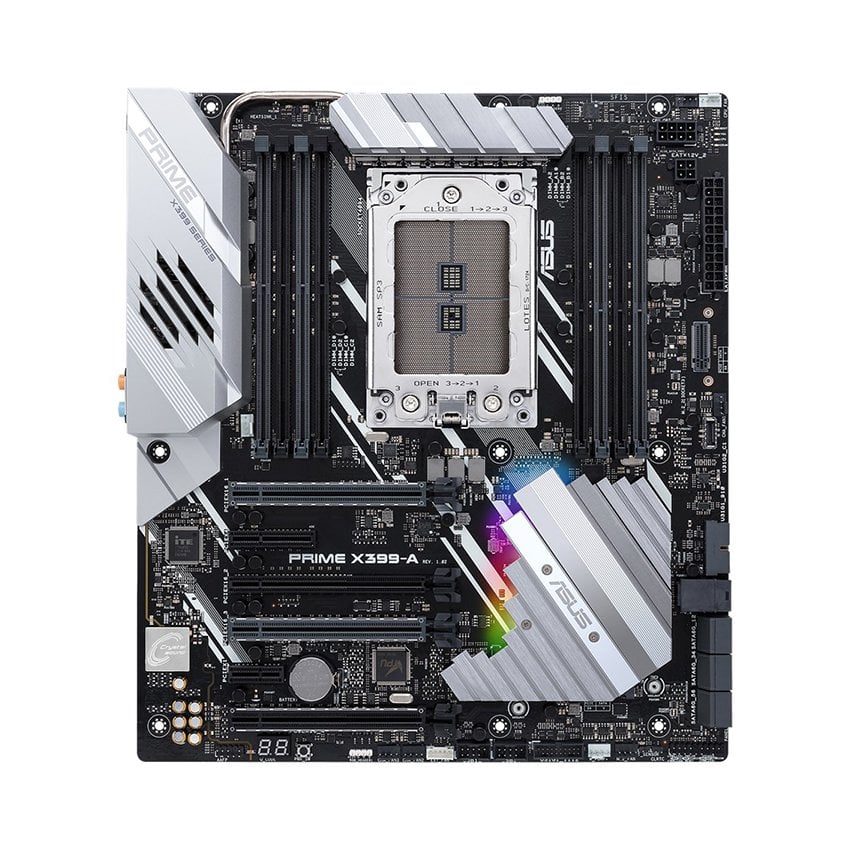

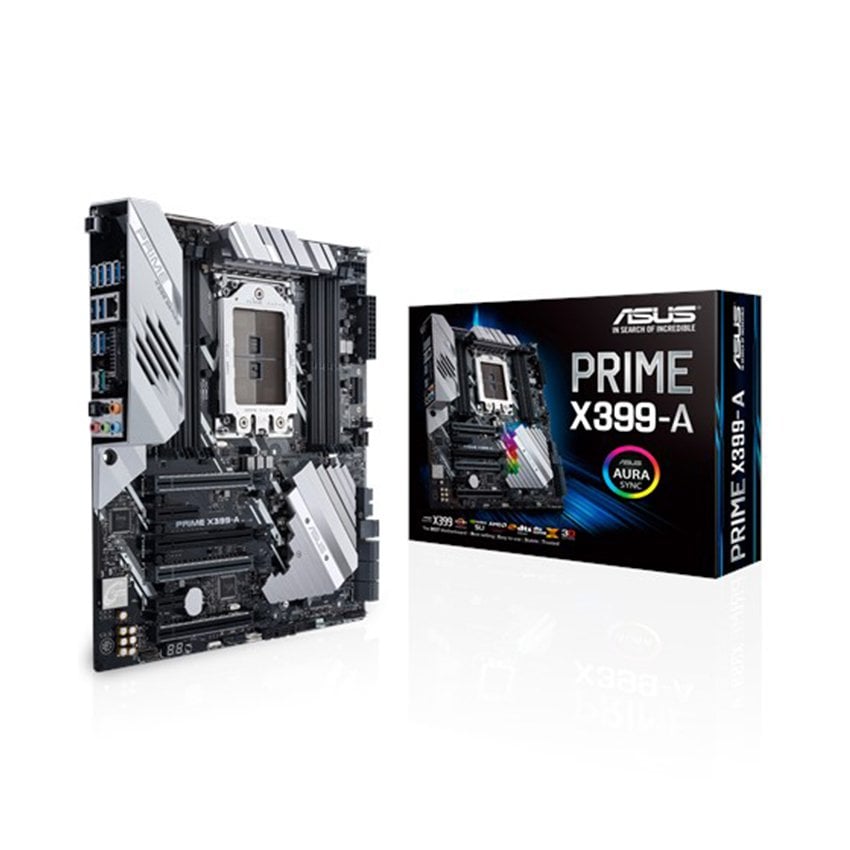

Mainboard ASUS PRIME X399-A là bo mạch chủ chipset AMD X399 cao cấp, socket TR4 chuyên dụng cho các bộ máy chơi game, làm việc cần hiệu năng cao.
Thiết kế
Mainboard ASUS PRIME X399-A có kích thước E-ATX tương đối lớn và thiết kế bắt mắt với các tấm heatsink lớn màu trắng bố trí ở các vị trí quan trọng trên bo mạch.
Trang bị
Mainboard ASUS PRIME X399-A sở hữu tất cả các tính năng hiện đại nhất tại thời điểm nó ra mắt:
- Digi+ VRM
- DDR4 3600 (O.C)
- 4 khe PCI 3.0
- USB 3.1 Gen 2 Front-Panel Connector
- USB 3.1 Gen 2 Front-Panel Connector
- 2x M.2 Slot
- 8x USB 3.1 gen 1 Type A
- 2x USB 3.1 Gen 2 Type A/C
Tính năng
- Sẵn sàng cho thế hệ thứ 2 của bộ vi xử lý AMD Threadripper
- Tối ưu cho khả năng Overclock theo nhiều cách
- Khe M.2 tốc độ tối đa 32Gbs
- Hỗ trợ kết nối nhiều card đồ họa
- LED RGB đồng bộ Aura Sync
