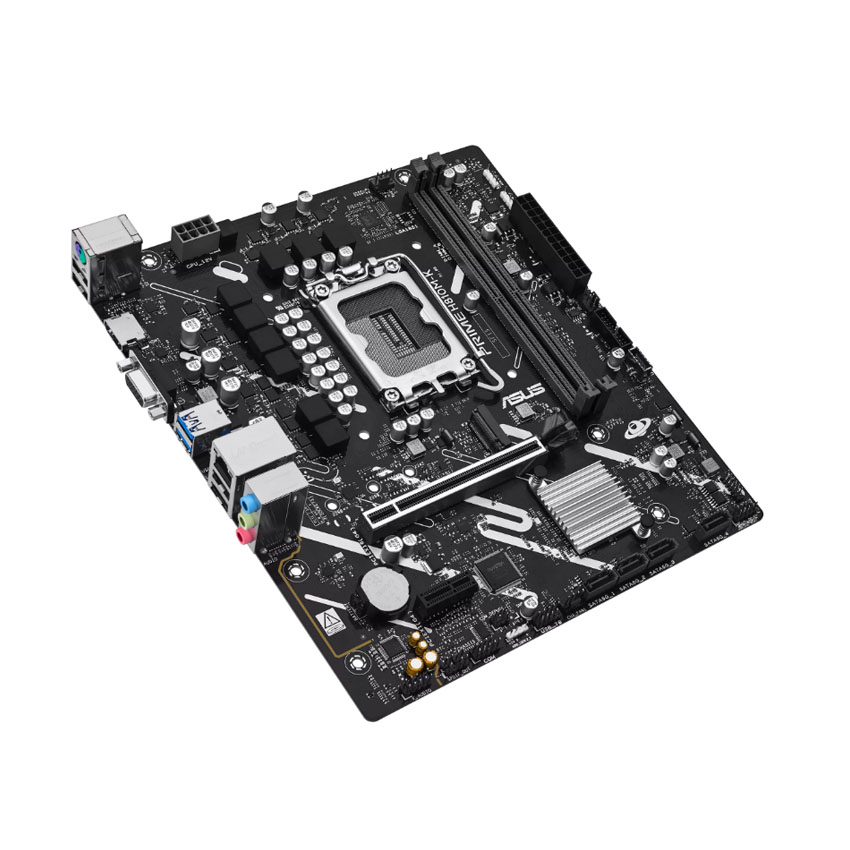

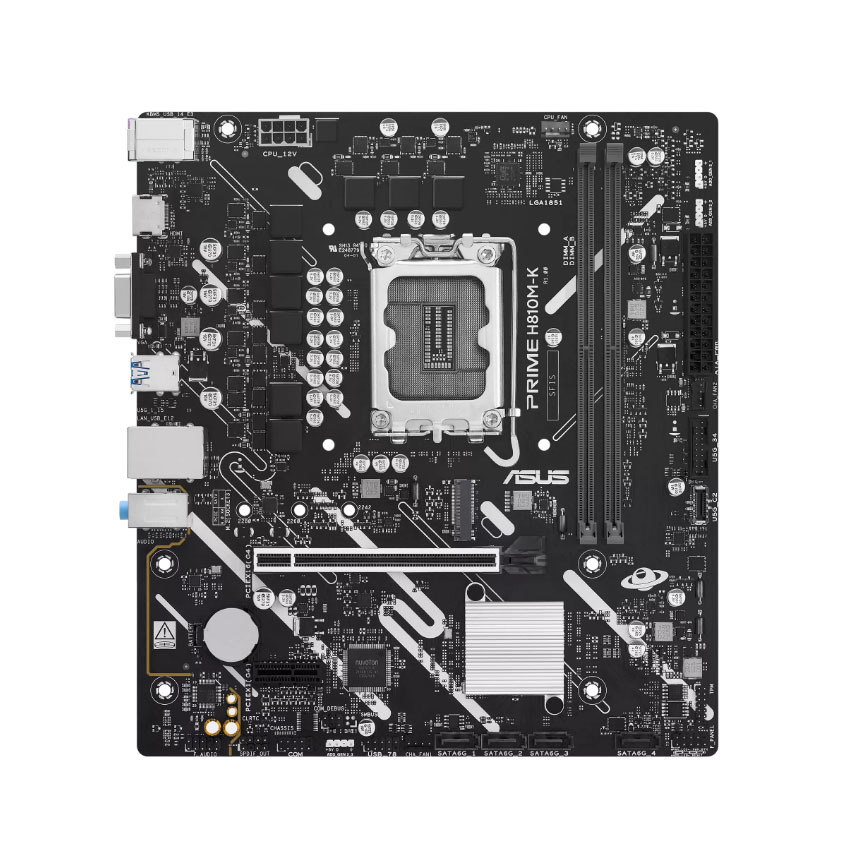

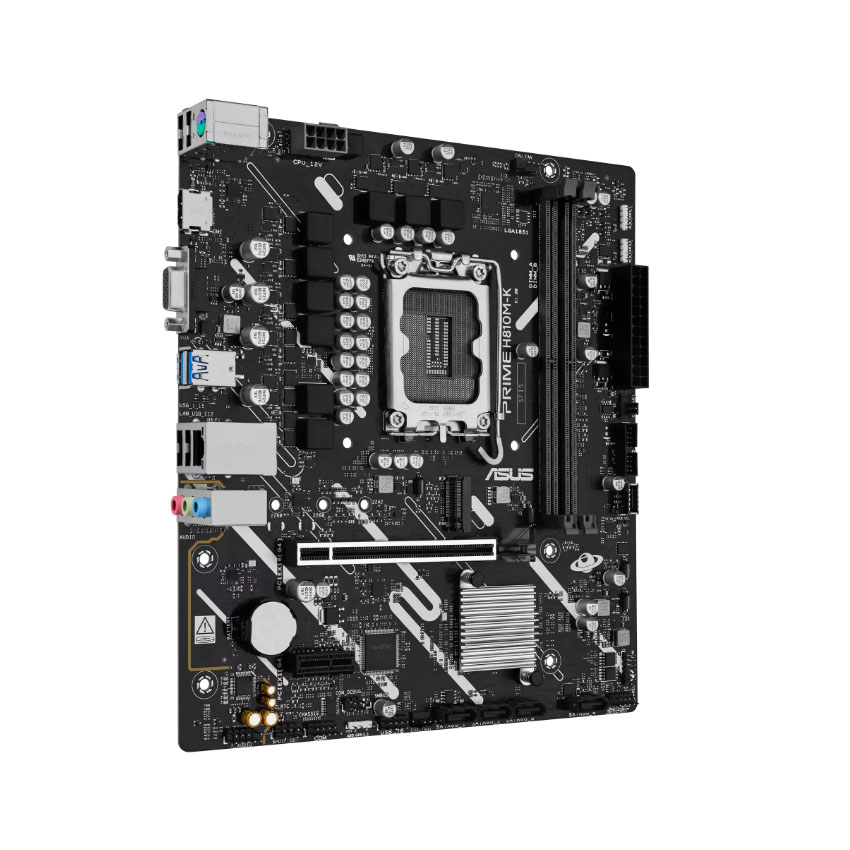

Mainboard ASUS PRIME H810M-K DDR5

Model

PRIME H810M-K

CPU hỗ trợ

Chipset

Intel^® H810 Chipset

RAM hỗ trợ

2 x DIMM slots, max. 128GB, DDR5
Supports up to
7200MT/s with Intel^® Core™ Ultra 200S Plus Processors
6400MT/s with Intel^® Core™ Ultra 200S Processors
Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports DIMM Fit and DIMM Fit Pro
Supports Intel^® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)

Khe cắm mở rộng

Intel^® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel^® H810 Chipset
1 x PCIe 4.0 x1 slot

Ổ cứng hỗ trợ

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel^® H810 Chipset
M.2 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Cổng kết nối (Internal

Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C^® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header

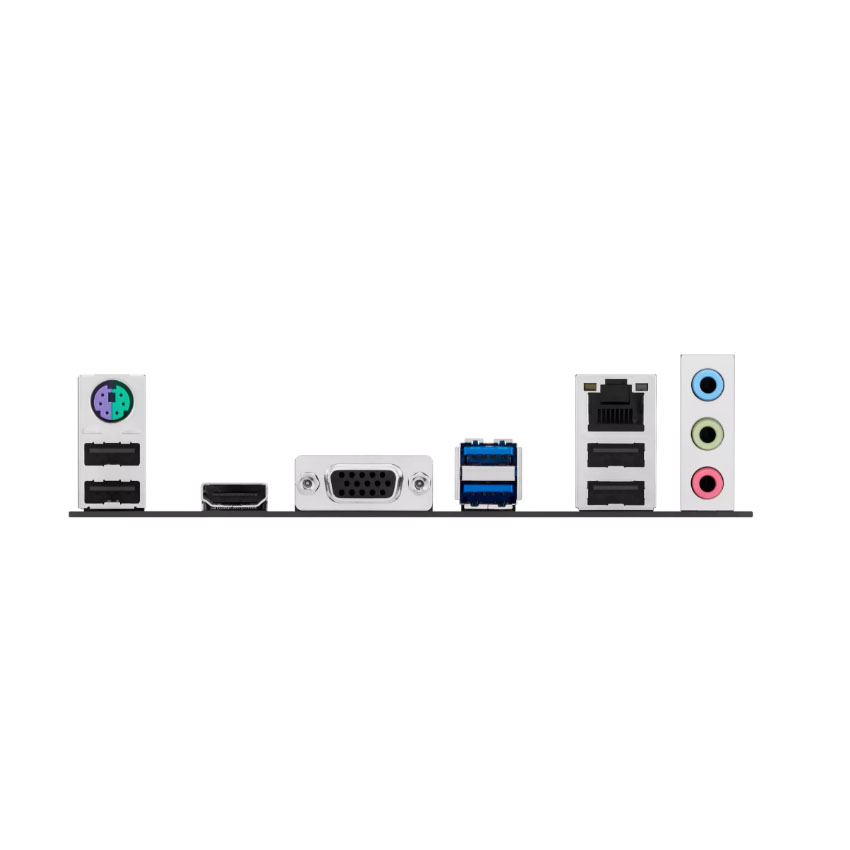

Cổng kết nối (Back Panel)

2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port

LAN / Wireless

1 x Realtek 1Gb Ethernet
ASUS LANGuard

Kích cỡ

micro-ATX Form Factor
9.2 inch x 8.3 inch (23.4 cm x 21.1 cm)
