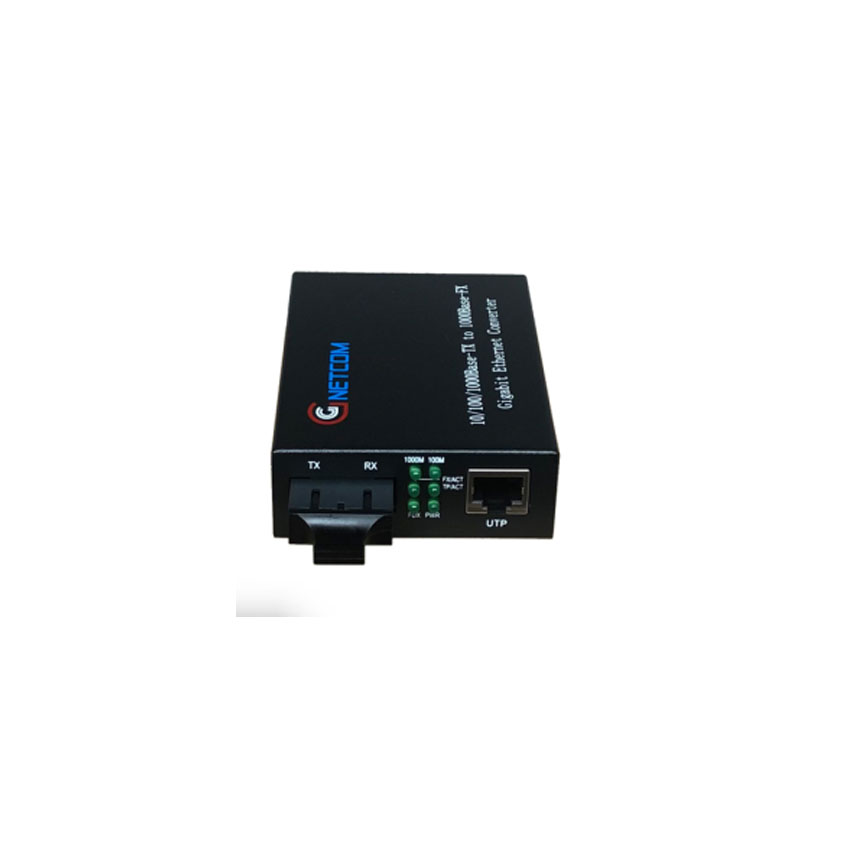

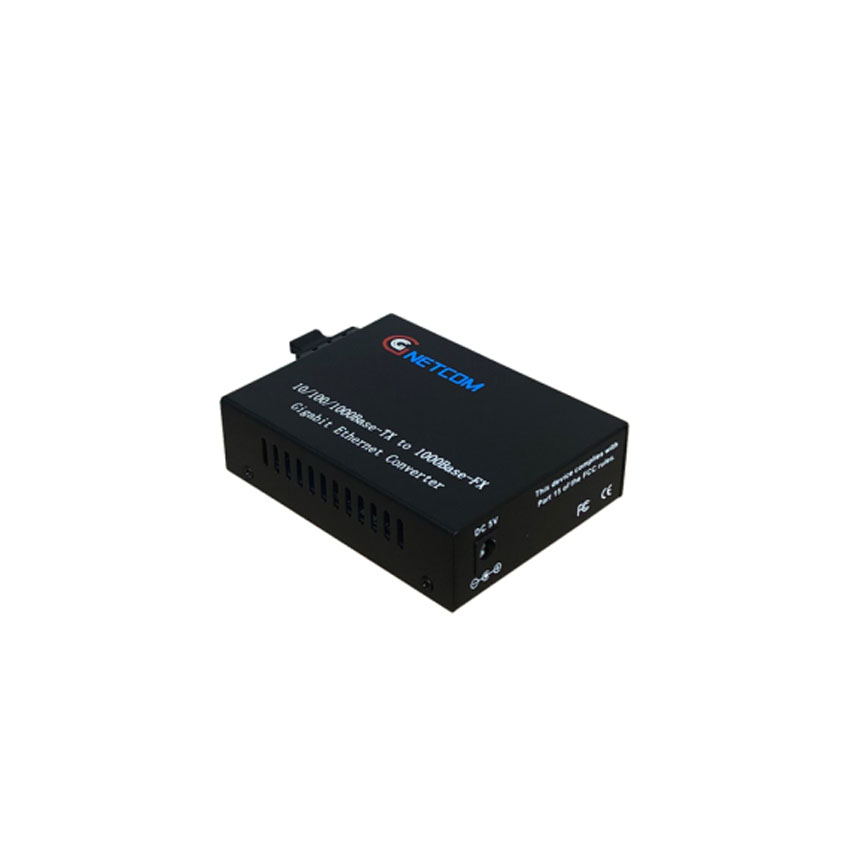

Bộ chuyển đổi quang điện 1 sợi GNETCOM 10/100/1000Mbps GNC-2211S-20B

Parameter

Specifications

Standards

IEEE802.3ab 1000Base-T,
IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,
IEEE802.1qVLAN,IEEE802.1p QoS,
IEEE802.1d Spanning Tree

Fiber port

Data Rate:1000M
Connector:SC as default,FC/ST (optional)
Distance: Multi-mode Fiber 2km, Single-mode Fiber 20km
Wavelength:1310nm
TX power ≥ -10 dBm
RX Sensitivity ≥ -23 dBm

Copper port

Data Rate:10/100/1000M
Connector:RJ45
Category-5 twisted pairs: 100m

Performance

Conversion Means:Media conversion
Delay Time:<10us
Back Bandwidth:4Gbps
MAC Address Size:16Kbit
Packet Buffer Size:1Mbit

LED Indicators

PWR (power supply)
FX LINK/ACT (optical link action)
TP LINK/ACT (twisted pair packet forwarding)
TP LINK1000 (twisted pair link1000M)
TP LINK100 (twisted pair link 100M)

Electrical&Mechanical

Input Power Requirements:DC5V@1A
Power Adapter:AC100V~240V
Power Consumption:<5W
Dimensions:9.4*7*2.6cm
Packing:26.5*15.7*5.8cm
Weight:0.2kg(External power supply)

Environmental

Operating Temperature:-20ºC~+60ºC
Storage Temperature:-40ºC~+85ºC
Relative Humidity:5%~90%(no-condensing)
MTBF:>100,000 hours
